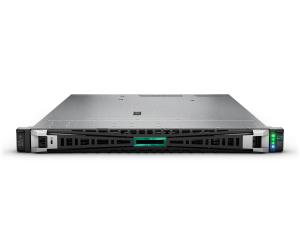

ProLiant DL320 Gen11 - 1p 3408U - 16GB-R - 8SFF - 1000W PS
ITCurry #: 1171AEQ3 | Article #: P57686-421-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 60 cores, 270W, increased memory capability (up to 2 TB 5600 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What is new supporting point:
Powered by the 4th and 5th Gen Intel Xeon Scalable Processors with next-generation 5nm technology that supports up to 60 cores at 270W and 16 DIMMs of DDR5 memory up to 5600 MT/s.
16 DIMMs per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 1 OCP3.0 slots.
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports hot-pluggable or internal, high-availability RAID1 NVMe M.2 boot options.
Support for up to 4 Single Wide or 2 Double Wide GPUs in the front cage with the GPU CTO server.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Bronze |
| Processor model | 3408U |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 1.9 GHz |
| Processor cores | 8 |
| Processor cache | 22.5 MB |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 16x DIMM |
| ECC | Yes |
| Maximum internal memory | 2.04 TB |
| Storage | |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 8 |
| RAID support | Yes |
| Hot-Plug support | Yes |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
| Chassis type | Rack (1U) |
| Rack mounting | Yes |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 916 mm |
| Height | 241 mm |
| Weight | 25.8 kg |
| Warranty | |
| Base Warranty | Non Non |
