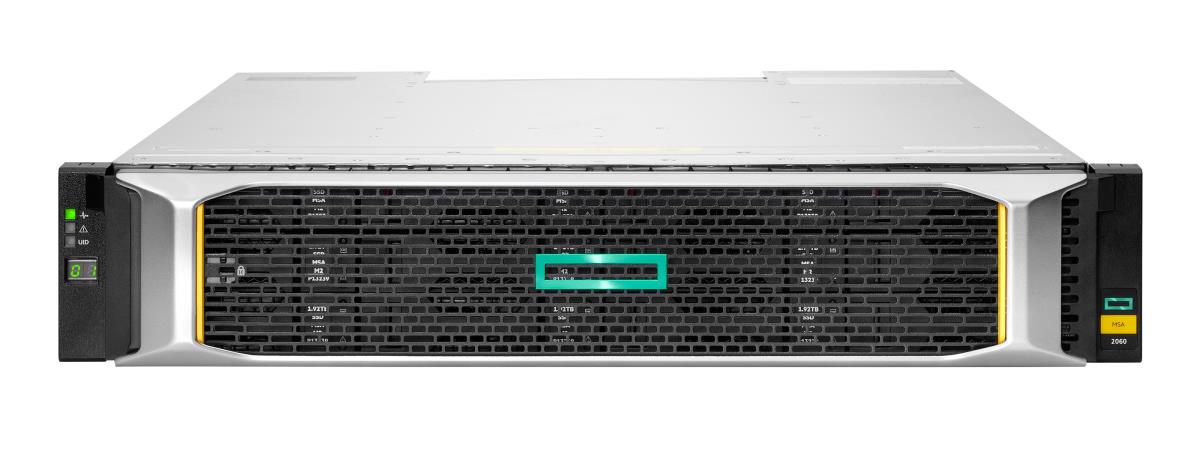

MSA 2060 LFF 2x16GB FC 4-port Controller 12x20TB HDD 4x16GB SFP FC XCVR 240TB Storage Array
ITCurry #: 1171APL9 | Article #: P79252-B25-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Is your company looking for easy to use, affordable, high-performance shared storage? The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.
What is new supporting point:
HPE MSA 2060 Smart Choice array models including twelve factory-integrated hard disk drives and four transceivers (Fibre Channel and iSCSI models) providing a complete storage solution out of the box.
New MSA Gen6 HDD and SSD media options supporting an increase in MSA 2060 raw capacity of up to 2.6X for a total maximum array storage capacity of 7.37 PB.
| Storage | |
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 12 |
| Total installed storage capacity | 240 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 2830 TB |
| Storage drive capacity | 20 TB |
| Storage drive size | 3.5" |
| Supported storage drive interfaces | SAS |
| Ports & interfaces | |
| Fibre Channel | Yes |
| Host ports | 4 |
| Design | |
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
| System requirements | |
| Linux operating systems supported | Yes |
| Server operating systems supported | Yes |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 508 mm |
| Height | 89 mm |
| Weight | 5 kg |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Warranty | |
| Base Warranty | Non Non |
