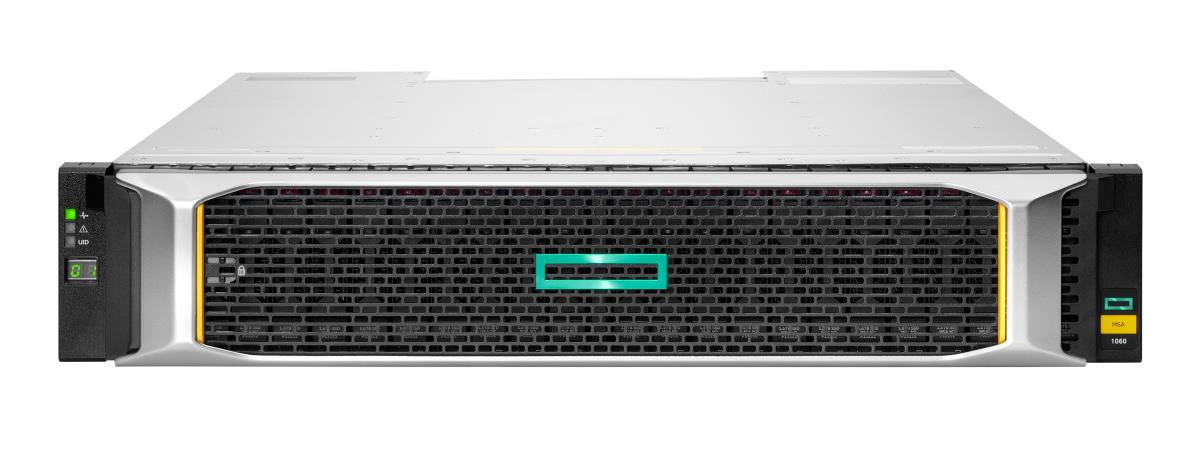

MSA 1060 SFF 2x16GB FC 2-port Controller 12x1.2TB HDD 4x16GB SFP FC XCVR 14TB Storage Array
ITCurry #: 1171APM2 | Article #: P79250-B25-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Need a modern shared storage array that is flash-ready and affordable with what’s left of a small budget? The HPE MSA 1060 Storage brings affordable flash storage down to the most price-sensitive customers. Designed to meet entry-level storage requirements, the HPE MSA 1060 Storage is a good fit for budget-constrained customers. With one of the lowest entry price points in the HPE Storage portfolio and field-proven HPE ProLiant compatibility, the HPE MSA 1060 Storage is the platform of choice for smaller IT workloads. The HPE MSA 1060 Storage features 10G-BaseT iSCSI, FC, and SAS host interface connectivity at previously unattainable entry price points. The MSA 1060 allows users to take advantage of the latest storage technologies while also providing a balance between performance and budget.
What is new supporting point:
All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.
Customer configurable HPE MSA 1060 storage array models and storage media options available through the HPE Smart Choice program.
MSA Gen6 HDD and SSD media options supporting an increase in MSA 1060 raw capacity of up to a maximum of 2.95 PB.
| Storage | |
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 12 |
| Total installed storage capacity | 14 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 383 TB |
| Storage drive capacity | 1.2 TB |
| Storage drive size | 2.5" |
| Supported storage drive interfaces | SAS |
| Storage drive type | Twelve 1.2 TB 10K SFF Hard Disk Drives included; Add up to twelve additional SFF HDD and/or SSD per base array |
| Ports & interfaces | |
| Fibre Channel | Yes |
| Host ports | 2 |
| Design | |
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| Product colour | Silver, Black |
| System requirements | |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2022, Windows Server 2016, Windows Server 2019, Yes |
| Weight & dimensions | |
| Width | 89 mm |
| Depth | 445 mm |
| Height | 508 mm |
| Weight | 5 kg |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Other features | |
| Weight (imperial) | 4.99 kg (11 lbs) |
| Storage drive controller | 2x 16 Gb Fibre Channel 2-port Controllers |
| Expansion description | 24 drive bay SFF 2060 drive enclosure or 12 drive bay LFF 2060 drive enclosure (add up to 3) |
| Form factor | SFF |
| Compatible operating systems | Windows Server 2022; Windows Server 2019; Windows Server 2016; VMWare vSphereT 6.7; Red Hat Linux 8; SUSET SLES 15; See HPE SPOCK for more details. |
| Warranty | |
| Base Warranty | Non Non |
