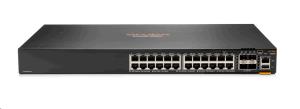

Aruba 6200M 24G 4SFP+ Switch, 24x ports 10/100/1000BASE-T Ports
ITCurry #: 1171AEH1 | Article #: R8Q67A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

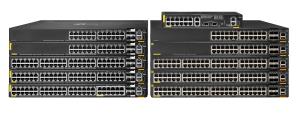

The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.
What is new supporting point:
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| USB Type-A ports quantity | 1 |
| Network | |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.2 Mpps |
| Latency (1 Gbps) | 2.28 æs |
| Latency (10 Gbps) | 1.46 æs |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Performance | |
| Physical stacking (units) | 8 |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor model | ARM Cortex-A72 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Power | |
| Power source | AC |
| AC input voltage | 200 - 240 V |
| Input voltage | 230 V |
| Power consumption (typical) | 75 W |
| Power consumption note | 75W at 230 VAC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Latency | 1 Gbps: 2.28 æSec 10 Gbps: 1.46 æSec |
| Memory and processor | CPU: Quad-core Arm Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC |
| I/O ports | 24 x 10/100/1000BASE-T ports 4 x 1/10G SFP ports (2 x LRM; 2 x LRM/MACSec 256) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Weight (imperial) | 6.01 kg (13.2 lbs) |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 383.8 mm (1.73 x 17.4 x 15.1") |
| Fan | Fixed fans |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 383.8 mm |
| Weight | 6.01 kg |
| Warranty | |
| Base Warranty | Non Non |
