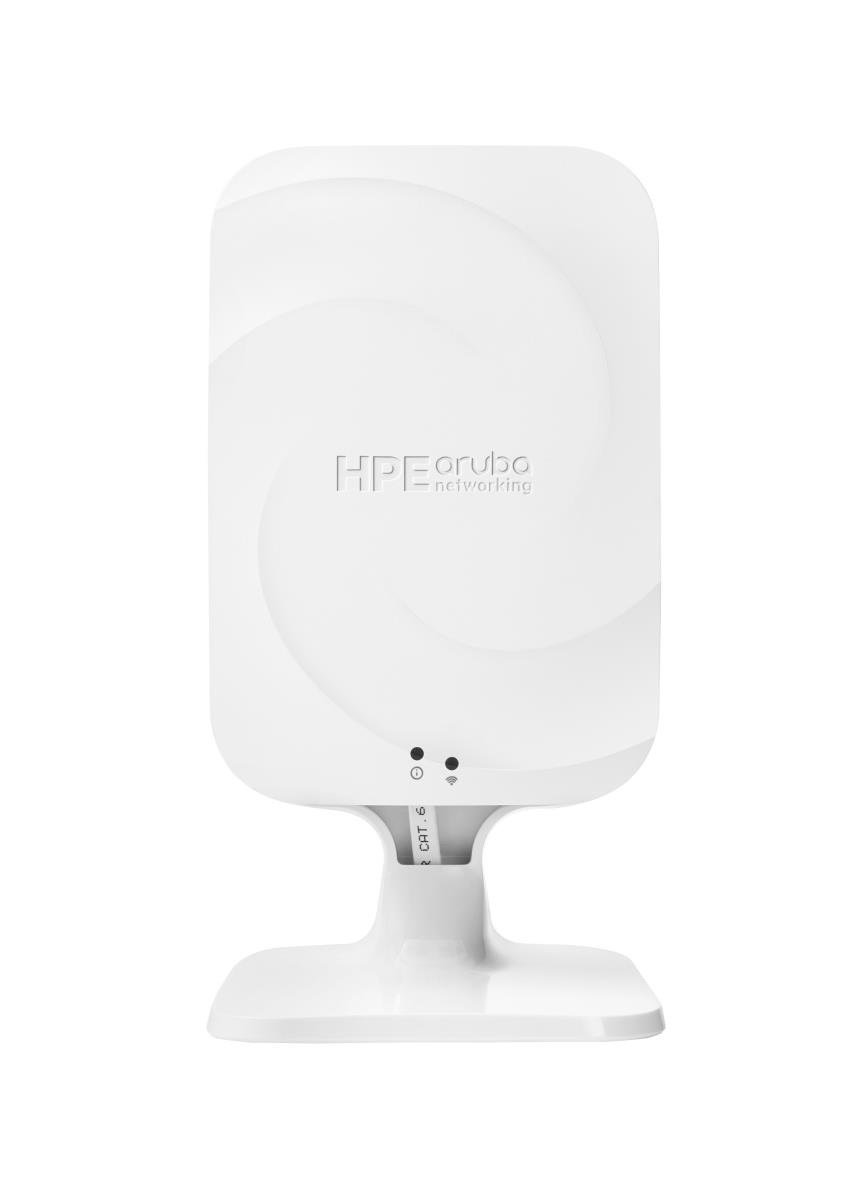

Aruba Networking AP-605HR (EU) 2-Radio 3-Band 2x2 Wi-Fi 6E 1+4 ETH PSE USB Remote AP Bundle
ITCurry #: 1171ANE5 | Article #: S0B64A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE Aruba Networking 600H Series Hospitality Access Points deliver high-performance wireless connectivity to mission-critical hospitality, small branch, and remote work environments. The 600H series delivers more wireless capacity and wider channels by taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to meet the increasing demands of bandwidth-hungry video, growing numbers of clients and Internet of Things (IoT) devices, and growth of cloud services. Configurable dual radios support any two of three Wi-Fi 6E bands (2.4, 5, and 6 GHz) and provide full Wi-Fi 6E coverage in a multi-AP environment. The flexible compact form factor includes multigigabit and gigabit ports, Power over Ethernet (PoE) support, and integrated Bluetooth Low Energy (BLE) and Zigbee, providing a range of connectivity options ideal for venues such as hotels, residence halls, and remote offices. The 600H series include a limited lifetime warranty.
What is new supporting point:
High performance Wi-Fi 6E AP is ideal for hospitality, branch, and teleworker deployments
It has flexible coverage across any two bands (2.4 GHz, 5 GHz, and 6 GHz) for up to 3.6 Gbps combined peak data rate
It has up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and AR/VR applications
It combines wireless and wired access in compact desktop or wall mount model that can be PoE powered
IoT-ready with support for Bluetooth 5 and Zigbee
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate | 3600 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (6 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| MIMO | Yes |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 48 V |
| Power consumption (max) | 50 W |
| Design | |
| Placement | Desk, Wall |
| Product colour | White |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 5.4 dBi |
| Performance | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10 HPE Aruba Networking Wireless Operating System 8 HPE Aruba Networking Instant OS 8 |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), ISED, Low Voltage Directive (LVD) |
| Certification | Wi-Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 WPA, WPA2, and WPA3--Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth SIG Ethernet Alliance (PoE-PD device, class 6, and PoE PSE device, class 4) UL2043 |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 40 mm |
| Height | 153 mm |
| Weight | 500 g |
| Other features | |
| I/O ports | Uplink (E0): Ethernet wired network port (RJ-45) Downlink (E1--E4): Ethernet wired network ports (RJ-45)(E1 and E2: POE-PSE) USB 2.0 host interface (Type A connector) Cellular radio module interface (accessible after removing the back cover) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Warranty | |
| Base Warranty | Non Non |
