Aruba Networking AP-605CM12 CAT12 LTE Cellular Module
ITCurry #: 1171AKR8 | Article #: R8N34A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
HPE Aruba Networking 600R Series Remote Access Points are powerful desktop Wi-Fi 6E access points that enable IT teams to deliver seamless and secure user experiences to remote power users and small branch environments. Providing up to 3.6 Gbps combined aggregate data rate (using 5 GHz and 6 GHz bands), this series delivers more wireless capacity and wider channels by taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to support increasing Wi-Fi demands, especially for latency-sensitive, high-bandwidth video communications. An optional high-speed LTE cellular module provides primary or backup connectivity for mission critical use cases. Multigigabit port, gigabit ports, and integrated Bluetooth Low Energy (BLE) and Zigbee offer a range of connectivity options. IT teams can easily extend the WAN to remote employees as part of the HPE Aruba Networking Central microbranch functionality. The 600R series includes a limited lifetime warranty.
What is new supporting point:
Convenient wired connectivity with 2.5 Gbps uplink/downlink Ethernet port and multiple 1 Gbps Ethernet ports
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
Managed through cloud-native HPE Aruba Networking Central to extend the WAN to home offices, small offices, and temporary locations
Wi-Fi 6E access points ideal for mission-critical remote work and small branches provide flexible coverage across any two bands (2.4 GHz, 5 GHz, and 6 GHz) for up to 3.6 Gbps combined peak data rate
Stay connected using backup or primary cellular connectivity with optional CAT 12 module that includes antennas and a high-speed interface for LTE connectivity
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| MIMO | Yes |
| Design | |
| Recommended usage | Indoor |
| Antenna | |
| Antenna direction type | Omni-directional |
| Performance | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System OS-10 |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Certification | Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PSE device, class 3) IEC 61373, JIS E 4031 |
| Weight & dimensions | |
| Width | 41 mm |
| Depth | 137 mm |
| Height | 41 mm |
| Weight | 149.7 g |
| Other features | |

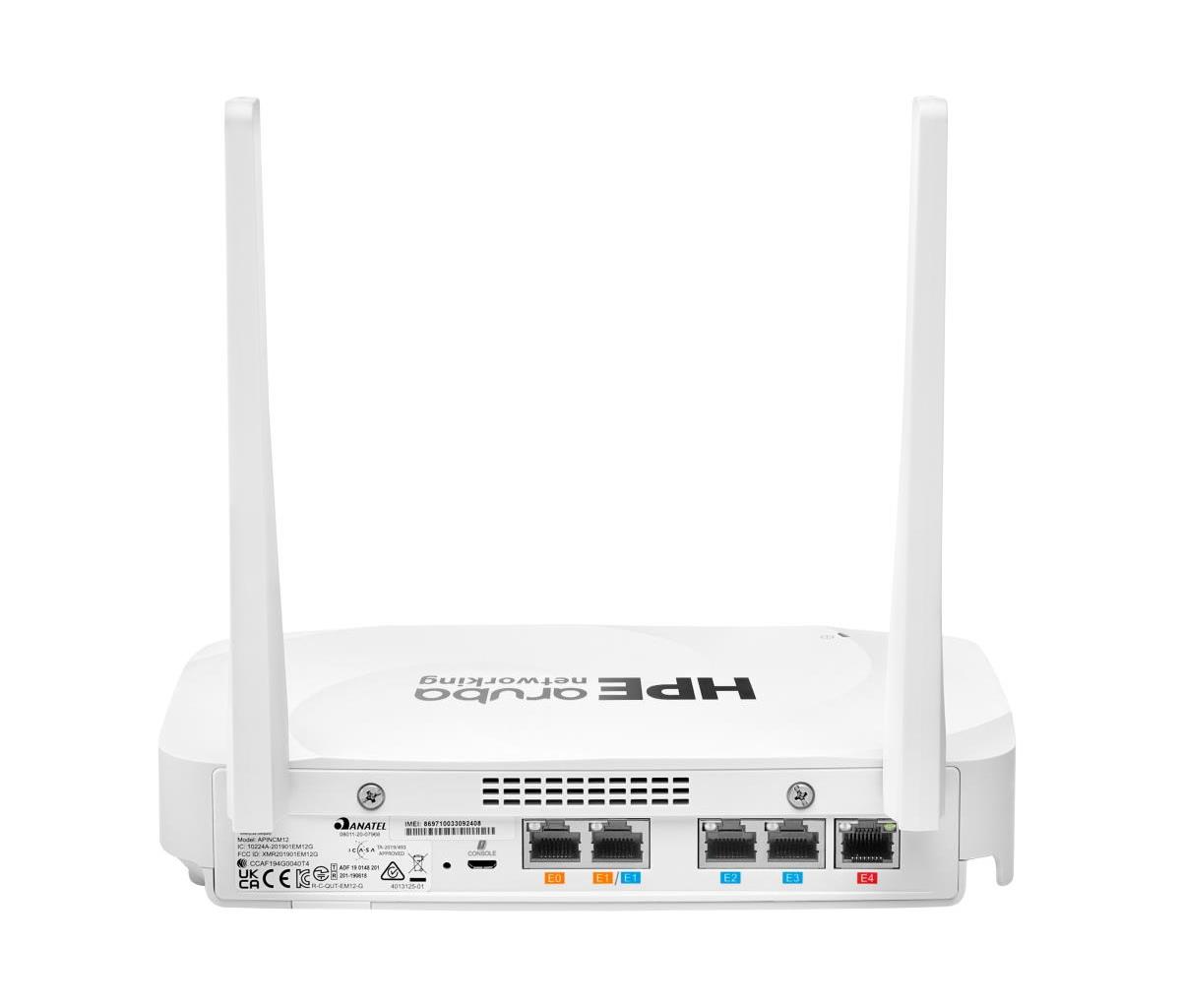

| I/O ports | Uplink (E0): Ethernet wired network port (RJ-45) Up/downlink (E1): Ethernet wired network port (RJ-45) Downlink (E2-E4): Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Cellular radio module interface (accessible after removing the back cover) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Weight (imperial) | 0.136 kg (0.3 lbs) |
| Warranty | |
| Base Warranty | Non Non |
