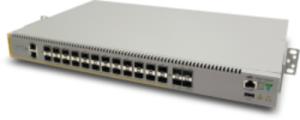

20 x 100/1000-T PoE+ - 4x 100/1000-T PoE+ (multi-giga is not supported)- 4x SFP+ Ports- L3 Stackable
ITCurry #: 13526287 | Article #: AT-X530-28GPXM-50-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Allied Telesis x530 Series of stackable Multi-Gigabit Layer 3 switches feature high capacity, resiliency and easy management, making them the ideal choice for demanding distribution and high-speed connectivity applications.
Allied Telesis x530 Series switches are a high-performing and feature-rich choice for today’s networks. They offer a versatile solution for enterprise applications. With 20 x 10M/100M/1Gigabit ports, 4 x 100M/1/2.5/5 Gigabit ports, and 10 Gigabit uplinks, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack™), the x530 Series can connect anything from a small workgroup to a large business.
Powerful network management
Allied Telesis Autonomous Management Framework™ (AMF) automates many everyday tasks including configuration management, easing the workload of modern networks. The entire network can be managed as a single virtual device with powerful centralized features. Growing the network can be accomplished with plug-and-play simplicity, and network node recovery is fully zero-touch.
AMF secure mode increases network security with management traffic encryption, authorization, and monitoring. AMF Guestnode allows third party devices, such as IP phones and security cameras, to be part of an AMF network.
Network resiliency
Today’s converging online services means there is increasing demand for highly-available networks with minimal downtime. VCStack™, in conjunction with link aggregation, provides a network with no single point of failure and application resiliency.
x530 Series switches can form a VCStack of up to four units for enhanced resiliency and simplified device management. Long Distance Stacking (VCStack LD), which enables stacks to be created over long distance fiber links, makes the x530 Series the perfect choice for distributed environments too.
Allied Telesis Ethernet Protection Switched Ring (EPSRing™), and the standards-based G.8032 Ethernet Ring Protection, ensure that distributed network segments have high-speed, resilient access to online resources and applications.
Reliable
The x530 Series was designed with reliability in mind, and guarantees continual delivery of essential services. With dual built-in power supplies and near-hitless online stack reconfiguration, maintenance may be performed without affecting network uptime.
Secure
A secure network environment is guaranteed. The x530 Series offers powerful control over network traffic types, secure management options, loop guard to protect against cabling mistakes, and tri-authentication for comprehensive access control.
Future proof
The x530 Series ensures a future-proof network, with superior flexibility and the ability to stack multiple units. All x530 Series models feature 10 Gigabit uplink ports and a comprehensive IPv6 feature set, to ensure they are ready for future network traffic demands.
High-speed wireless
The spread of high-speed wireless (802.11ac or “Wave2”) can be problematic for network infrastructure. Unless infrastructure is upgraded to cope with increased speeds, a bottleneck occurs which negatively impacts the effectiveness of the wireless network. However, increasing speeds from 1 Gigabit has traditionally meant moving to 10 Gigabit, which requires expensive new cabling. The x530 series solves this issue, because it provides support for both 2.5 and 5 Gigabit. At these speeds, the wireless network runs at full capacity, and there is no need to upgrade existing Cat5e and Cat6/6A cables.
Environmentally friendly
The x530 Series support Energy Efficient Ethernet (EEE), automatically reducing the power consumed by the switch whenever there is no traffic on a port. This sophisticated feature significantly lowers operating costs by reducing the power requirements of the switch and any associated cooling equipment.
| Warranty | |
| Base Warranty | Non Non |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Traffic classification | Y |
| Configuring Location Settings (CLI) | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 20 |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Y |
| Copper ethernet cabling technology | 10GBASE-T |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Port mirroring | Y |
| Policy-based routing | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Spanning tree protocol | Y |
| Auto-negotiation | Y |
| VLAN support | Y |
| Virtual LAN features | VLAN Identifier ( VLAN ID) |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| Wavelength | 850 nm |
| Data transmission | |
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 119 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 7.38 æs |
| Latency (1 Gbps) | 4.05 æs |
| Latency (10 Gbps) | 1.63 æs |
| Number of queues | 8 |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Security algorithms | 802.1x RADIUS, SSH, SSH-2, SSL/TLS |
| MAC address filtering | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Password protection | Y |
| Authentication type | IEEE 802.1x |
| Multicast features | |
| Multicast support | Y |
| Design | |
| Rack mounting | Y |
| Stackable | Y |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Y |
| Electromagnetic compatibility | EN55032 class A, FCC class A, VCCI class A, ICES-003 class A |
| Certification | UL, cUL, UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Performance | |
| Physical stacking (units) | 4 |
| Memory type | DDR3-SDRAM |
| Internal memory | 1000 MB |
| Flash memory | 256 MB |
| Noise level | 44 dB |
| Power | |
| Power consumption (max) | 900 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 720 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -25 - 70 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 421 mm |
| Height | 44 mm |
| Weight | 6.3 kg |
| Packaging data | |
| Package width | 563 mm |
| Package depth | 534 mm |
| Package height | 128 mm |
| Package weight | 8.3 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
