Experience advanced cooling and expressive, aerodynamic design in a spacious format. An evolution of our mesh performance series, Meshify 3 XL offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.
Advanced airflow
Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.
Evolved design

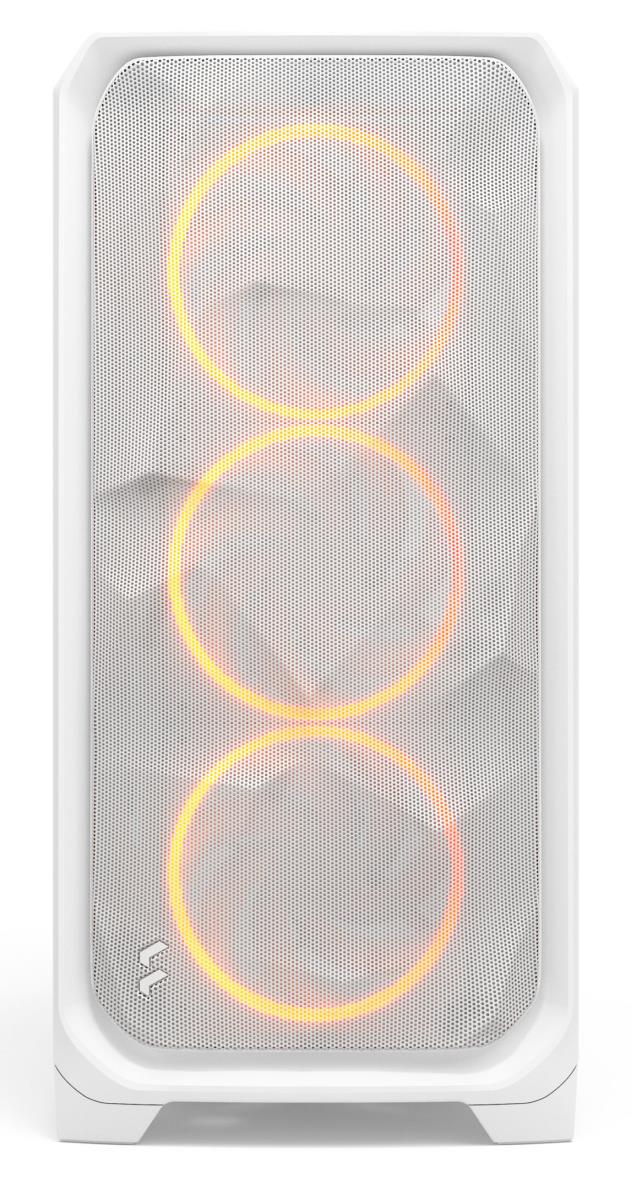

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.
Designed for gaming
Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX (330 mm) motherboard compatibility.
Easily accessible
Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.
Powerful fans included

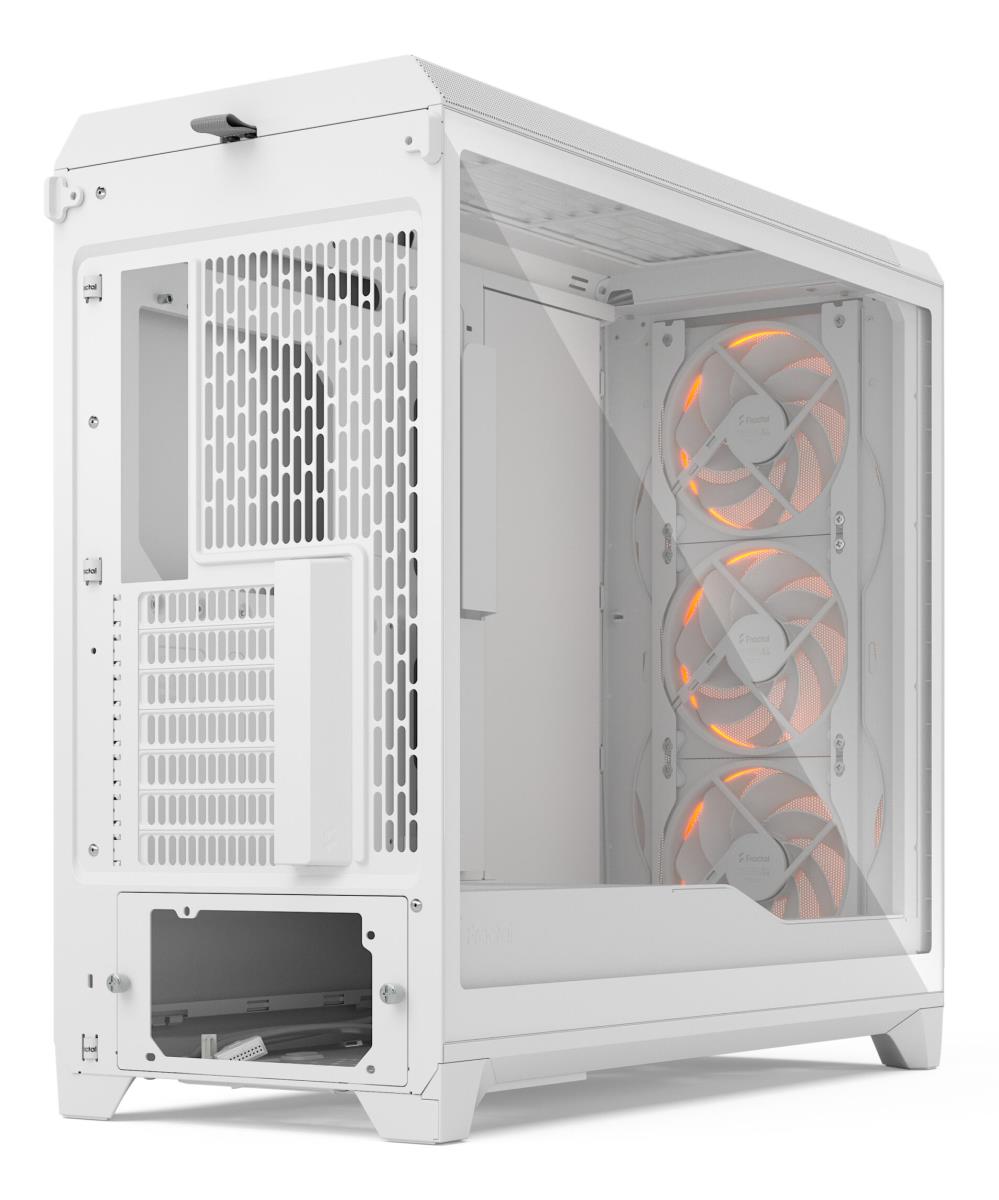

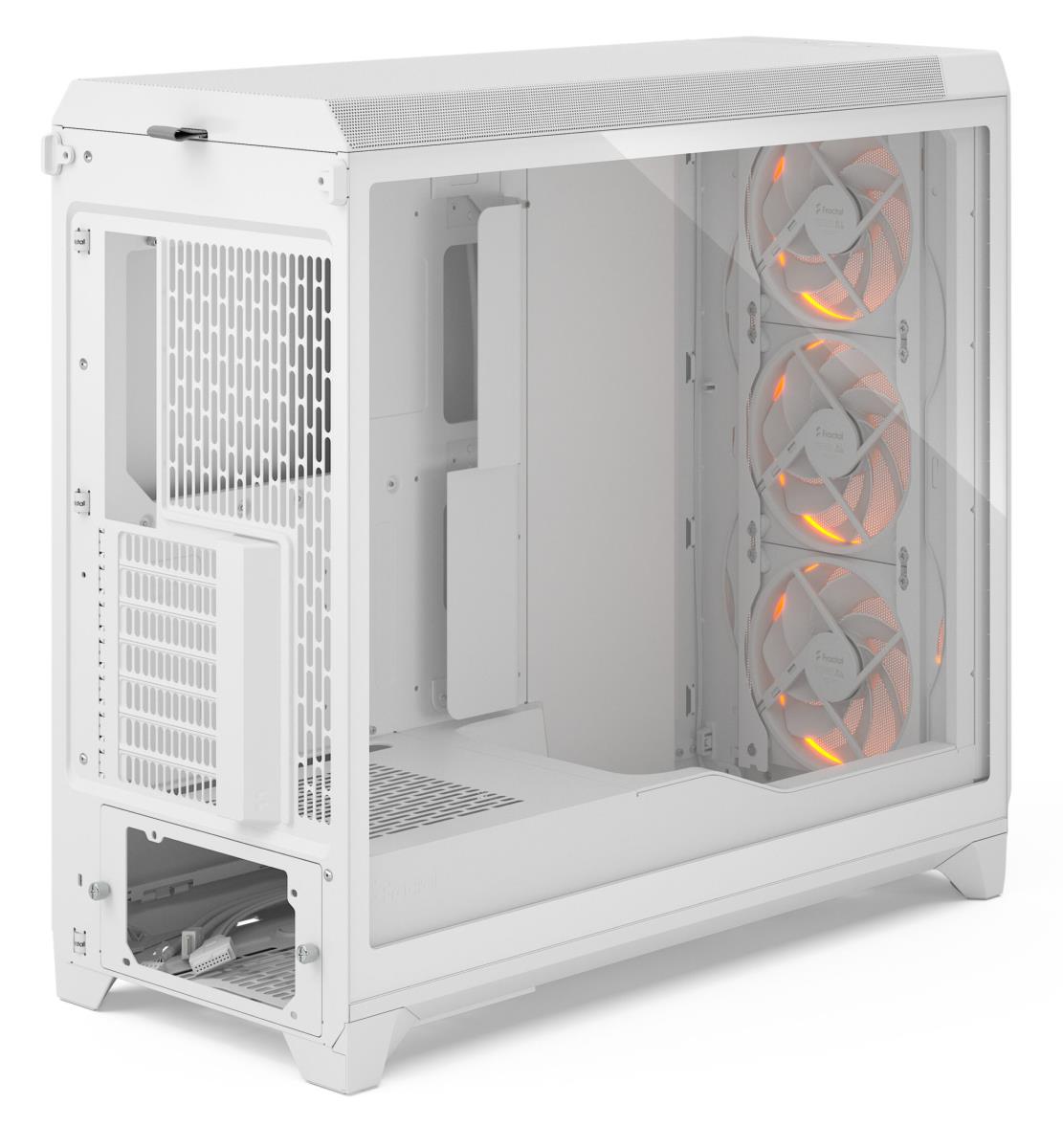

Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.
Ideal for custom loops
Create a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.

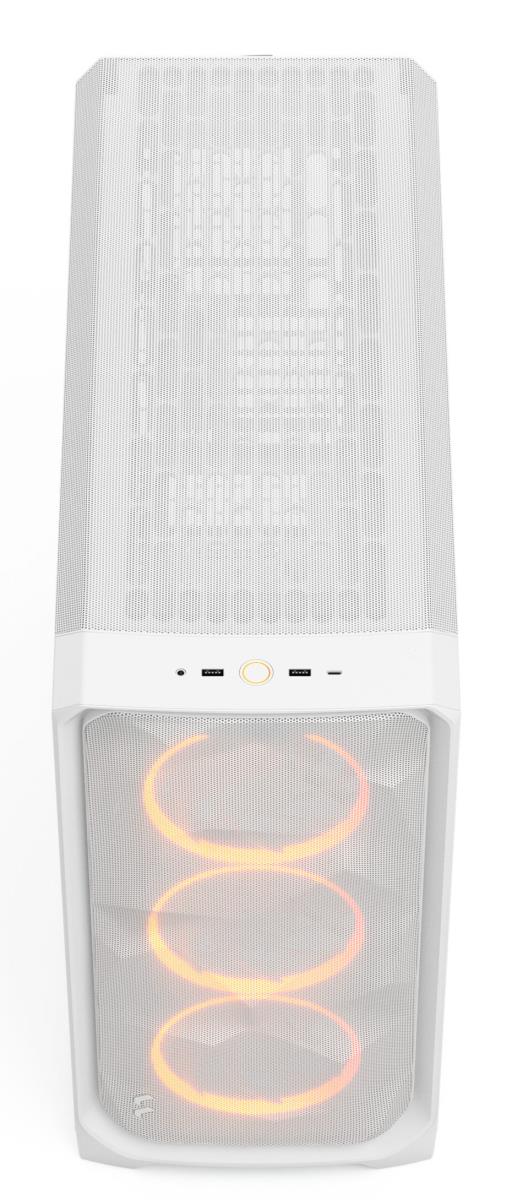

Accessible I/O
Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.
Clean finish

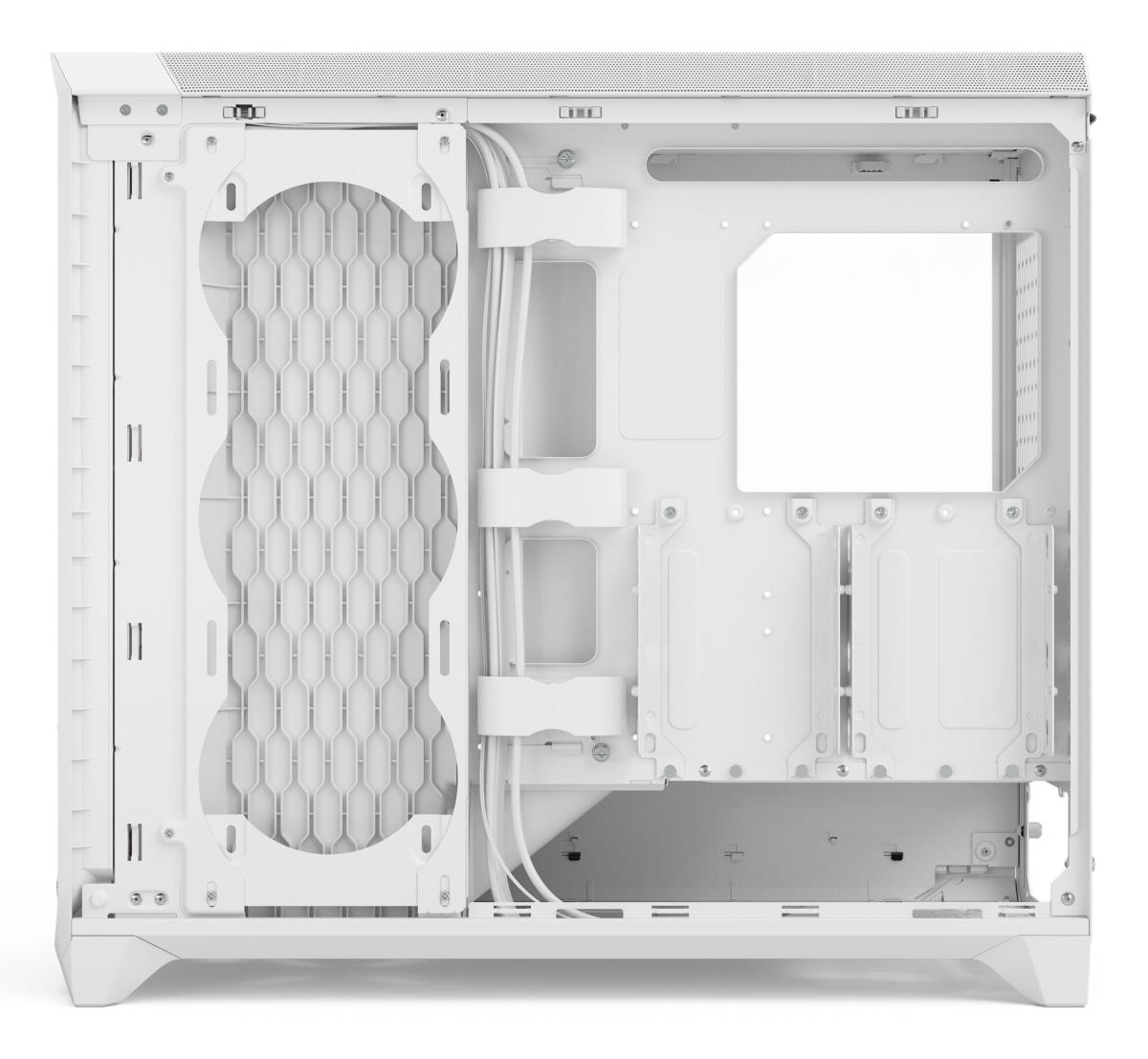

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.
| Design | |
| Material | Steel, Tempered glass |
| Type | PC |
| Product colour | White |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 18.2 cm |
| Maximum graphics card length | 51.2 cm |
| Maximum PSU length | 23 cm |
| Power supply | |
| Power supply included | No |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Cooling | |
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140,180 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 280,360 mm |
| Side radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 360,420 mm |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| SSD form factor | 2.5" |
| Technical details | |
| Warranty period | 2 year(s) |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 245 mm |
| Depth | 575 mm |
| Height | 515 mm |
| Weight | 10.9 kg |
| Packaging data | |
| Package width | 350 mm |
| Package depth | 688 mm |
| Package height | 596 mm |
| Package weight | 13 kg |
| Warranty | |
| Base Warranty | Non Non |
