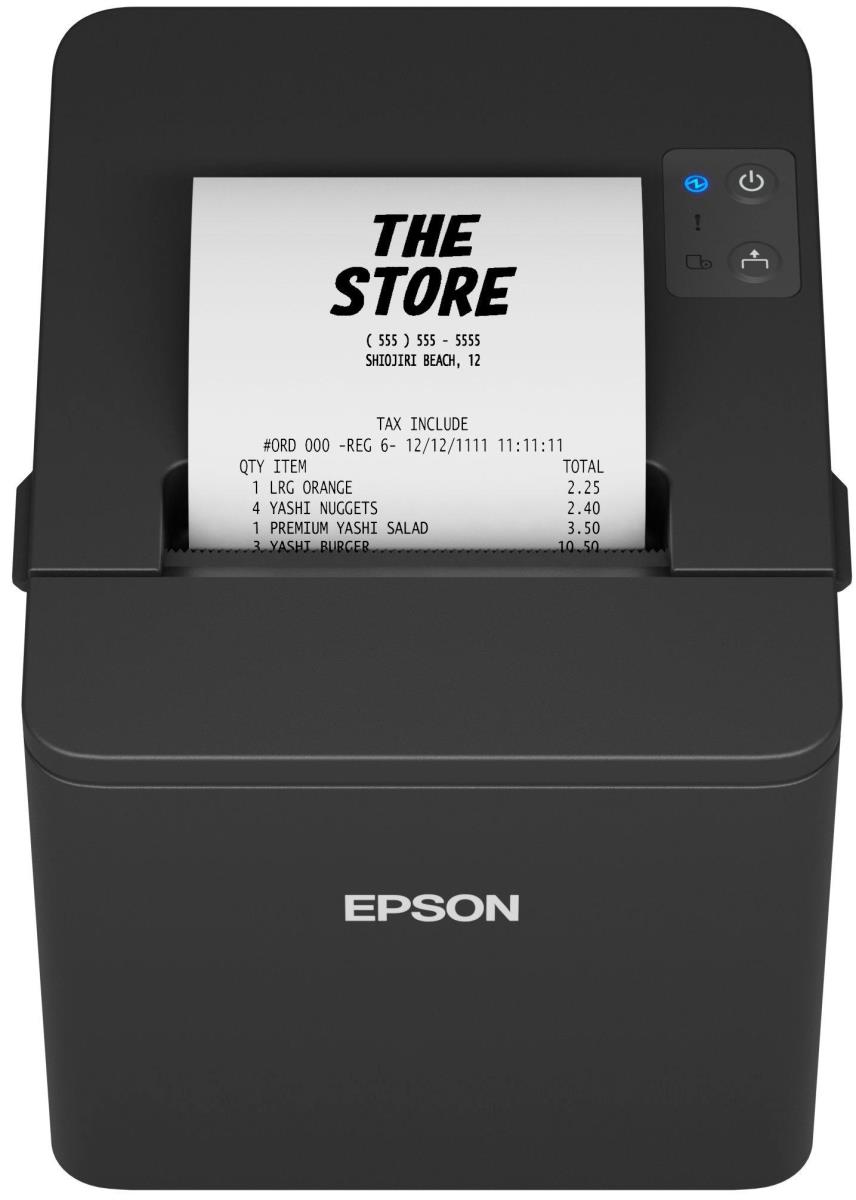

Tm-t20iv (101) - Receipt Printer - Dot Matrix - USB / Serial
ITCurry #: 1925AF03 | Article #: C31CL47101-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The capable, affordable POS printer with versatile connectivity
Engineered for a balance of speed, reliability and affordability in a compact package, the TM-T20IV thermal receipt printer is purpose-built for taking on the demanding POS needs of today’s businesses. This versatile printer supports traditional PC-POS and mPOS systems and features two built-in connectivity options, allowing for exceptional flexibility and productivity: (1) USB with serial connectivity and (2) USB with serial and Ethernet connectivity. The TM-T20IV is built for productivity—with print speeds up to 250 mm/sec, an intuitive status LED and paper savings of up to 30 percent1, it’s the ideal solution for keeping your POS workflow moving quickly and efficiently. The printer is backed by a 2-year limited warranty, with extended service plan options available up to a total of 5 years of continuous coverage2, giving you Epson’s world-class service and support for your peace of mind.
| Printing | |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 250 mm/sec |
| Character size | 1.25 x 3 mm |
| Character density | 22.6 cpi |
| Printing characters | Graphic |
| Print technology | Thermal |
| Type | POS printer |
| Paper handling | |
| Printing media thickness | 53 - 75 æm |
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80 mm |
| Ports & interfaces | |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Connectivity technology | Wired |
| Optional connectivity | Ethernet, Wireless LAN |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | No |
| Features | |
| Built-in barcodes | CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Autocutter durability | 2 million cuts |
| Print head life | 150 km |
| Wall mountable | Yes |
| Receive buffer | 4 KB |
| Built-in sensors details | Paper End Sensor, Paper Near End Sensor |
| Design | |
| Product colour | Black |
| Power | |
| Power source type | DC |
| Power consumption (printing) | 27.2 W |
| AC input voltage | 100 - 230 V |
| AC input frequency | 50/60 Hz |
| DC output voltage | 24 V |
| Power consumption (standby) | 0.96 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 øC |
| Storage temperature (T-T) | -10 - 50 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 199 mm |
| Height | 146 mm |
| Weight | 1.7 kg |
| Packaging data | |
| Cables included | AC |
| Packaging content | |
| AC adapter included | Yes |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), ICES |
| Safety warning | UL62368-1, CAN/CSA C22.2 No.62368-1 |
| Other features | |
| Mean cycles between failures (MCBF) | 60000000 |
| Warranty | |
| Base Warranty | Non Non |
