Epa5090gbt 90w 802.3 Bt/at/af Gigabit Power-over-ethernet Adapter
ITCurry #: Q4342234 | Article #: EPA5090GBT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

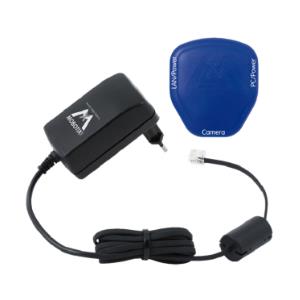

The EPA5090GBT IEEE 802.3bt standard Power-over-Ethernet adapter supports high-speed data and up to 90 Watts/54V of power to compliant devices such asnetwork devices that need a higher power to work normally to 100 meters away over a single cable. It is designed specifically to meet the demand for growing higher power required network equipment as big power AP, media server, thin client, POS system, health care, Lighting, PTZ speed dome camera, all-in-one touch PC, remote digital signage display. A compact, optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment.
Network | |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
Features | |
Product colour | Black |
Wall mountable | Yes |
LED indicators | Power |
Pin assignment & polarity | Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-); Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-) |
Power protection features | Over current, Over voltage, Short circuit |
Power | |
Power over Ethernet (PoE) voltage | 54 V |
Output power | 90 W |
Input voltage | 100 - 240 V |
Input frequency | 50 - 60 Hz |
Input current | 0.95A @ 120V, AC 0.5A @ 240V AC |
Surge protection voltage | 4 kV |
Certificates | |
Compliance certificates | CB, CE, Federal Communications Commission (FCC), UL |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Storage temperature (T-T) | -20 - 70 øC |
Weight & dimensions | |
Width | 150 mm |
Depth | 65 mm |
Height | 34 mm |
Weight | 210 g |
Logistics data | |
Warranty period | 1 year(s) |
Warranty | |
Base Warranty | Non Non |
