Industrial Gigabit PoE Injector FullIEEE802.3af,at,bt Compliant, up to 85 W
ITCurry #: M9239034 | Article #: DN-651141-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

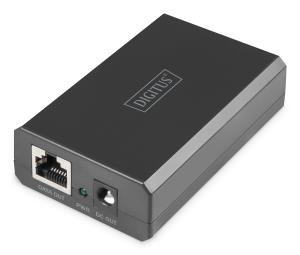

Industrial Gigabit PoE Injector, full IEEE802.3af, at, bt Compliant, up to 85 W
- Full IEEE802.3af, IEEE802.3at, IEEE802.3bt Compliant
- Up to 85W of Power on 4-pairs
- Auto-detect of IEEE802.3af, IEEE802.3at, IEEE802.3bt PD
- Supports 10/100/1000Base-T applications
- LED indicators power input and PoE output indication
- Distance up to 100 meters
- DC Input 45~56V
- DIN-Rail installation
- Wide operating temperature: -40 ~ +75?
The DN-651141 is a single port Mid-spans offer a compact and cost effective, fully IEEE802.3bt compliant solution for remote powering of wireless LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations.
The DN-651141 PoE Mid-spans eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.
| Performance | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Cabling technology | 10/100/1000Base-T(X) |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Plug and Play | Yes |
| Country of origin | China |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power over Ethernet (PoE) | No |
| Input voltage | 45 - 56 V |
| Output power | 85 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 øC |
| Storage temperature (T-T) | -40 - 75 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 103 mm |
| Depth | 78 mm |
| Height | 32 mm |
| Weight | 295 g |
| Package width | 188 mm |
| Package depth | 95 mm |
| Package height | 165 mm |
| Package weight | 331.389 g |
| Package volume | 4286.4 cmü |
| Packaging content | |
| Quantity | 1 |
| Quick installation guide | Yes |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Warranty | |
| Base Warranty | Non Non |
