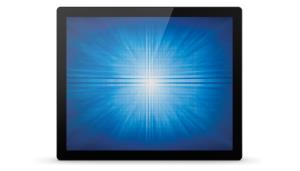

Touchscreen 19in 1990l LCD 1280 X 1024 Single Touch Open Frame Intellitouch USB/serial Black
ITCurry #: M0133810 | Article #: E328497-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display technology | LCD |
| Panel type | TFT |
| Backlight type | LED |
| Touchscreen | Y |
| Touchscreen technology | Surface acoustic wave |
| Touch technology | Single-touch |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA) |
| Aspect ratio | 5:4 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170ø |
| Viewing angle, vertical | 160ø |
| Display number of colours | 16.78 million colours |
| Digital horizontal frequency | 30 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display brightness | 225 cd/mý |
| LED backlight | Y |
| Performance | |
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
| Multimedia | |
| Built-in camera | N |
| Design | |
| Product colour | Black |
| Warranty | |
| Base Warranty | Non Non |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Y |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Digital audio coaxial out | 1 |
| Ergonomics | |
| VESA mounting | Y |
| Panel mounting interface | 75 x 100 mm |
| Wall mountable | Y |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 8 |
| Power | |
| Power consumption (typical) | 22 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Power supply type | DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3.048 m |
| Non-operating altitude | 0 - 12.192 m |
| Packaging content | |
| Cables included | HDMI, LAN (RJ-45), USB, VGA |
| Weight & dimensions | |
| Width (with stand) | 414.7 mm |
| Depth (with stand) | 342.7 mm |
| Height (with stand) | 50 mm |
| Width (without stand) | 42 cm |
| Depth (without stand) | 4.07 cm |
| Height (without stand) | 34.8 cm |
| Weight (without stand) | 4.6 kg |
| Packaging data | |
| Package weight | 7 kg |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Dimensions (W x D x H) with stand | 414.7 x 342.7 x 50 mm |
| Display viewable area (HxV) | 376.32 x 301.06 mm |
| Mean time between failures (MTBF) | 50000 h |
