Touchcomputer 15e2 2GB 320GB 15.6in E-series Intellitouch Micro-bezel No Os Black
ITCurry #: M0133467 | Article #: E059167-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

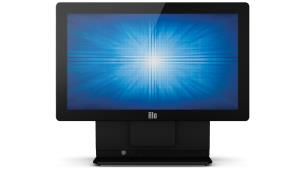

The 15E2 E-Series touchcomputer is an elegant, retail-hardened touch solution with a small footprint, developed to fit into hospitality and retail environments. The compact, ruggedized touchcomputer delivers a 15-inch touchscreen, Intel Celeron dual-core processor, 2GB RAM and 320GB storage. Designed to fit on top of a cash drawer, it can also be wall-or pole-mounted depending on the installation needs.
The 15E2 supports third party peripherals through four (4) USB and two (2) serial ports and has a second VGA output to add a second customer-facing display for advertising and customer communication. The connections are all nicely hidden from view in the I/O bay, offering a clean, modern look while avoiding incidental disconnection.
The 15E2 touchcomputer is designed for convenient serviceability with easy access to main components. Availablewith IntelliTouch zero-bezel surface acoustic wave (SAW) or AccuTouch micro-bezel 5-wire resistive touch technology, the 15E2 features a sleek glass-to-edge seamless design that is elegant and easy to clean. With no moving parts to wear out, touch response is fast, accurate, and driftfree using a finger, gloved hand, or soft stylus. Pure glass construction allows high light transmission without compromising durability or functionality.
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | Yes |
| Display brightness | 160 cd/mý |
| Touchscreen technology | Resistive |
| Contrast ratio (typical) | 650:1 |
| Viewing angle, horizontal | 90ø |
| Viewing angle, vertical | 65ø |
| Response time | 10 ms |
| Effective viewing area | 348.2 x 197.5 mm |
| Aspect ratio | 16:9 |
| Display number of colours | 262144 colours |
| Processor | |
| Processor frequency | 2.41 GHz |
| Processor family | Intel© Celeron© |
| Processor model | J1800 |
| Processor cache | 1 MB |
| Memory | |
| Internal memory | 2 GB |
| Internal memory type | DDR3L |
| Maximum internal memory | 4 GB |
| Number of memory slots | 1 |
| Memory slots type | SO-DIMM |
| Storage | |
| Total storage capacity | 320 GB |
| Storage media | HDD |
| HDD capacity | 320 GB |
| HDD interface | SATA |
| HDD size | 2.5" |
| Graphics | |
| Graphics card manufacturer | Intel |
| Graphics card | HD Graphics |
| Features | |
| Certification | UL/cUL, FCC, TUV, CB, CE, Mexico CoC, S-mark, RCM, VCCI, CCC, KC, BSMI, UKSERTCOMPUTER, SII |
| Multimedia | |
| Built-in speaker(s) | No |
| Card reader integrated | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 2 |
| Line-in | Yes |
| Line-out | Yes |
| Microphone in | Yes |
| RS-232 ports | 2 |
| Design | |
| Chassis type | All-in-One |
| Product colour | Black |
| Software | |
| Operating system installed | No |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply | 65 W |
| Power consumption (typical) | 29 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 35 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 5 - 95% |
| Ergonomics | |
| Wall mountable | Yes |
| Mean time between failures (MTBF) | 30000 h |
| Weight & dimensions | |
| Width | 390 mm |
| Depth | 240 mm |
| Height | 280 mm |
| Width (with stand) | 390 mm |
| Depth (with stand) | 330 mm |
| Height (with stand) | 161 mm |
| Weight (with stand) | 4.7 kg |
| Packaging data | |
| Package width | 460 mm |
| Package depth | 400 mm |
| Package height | 250 mm |
| Package weight | 7.3 kg |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Other features | |
| Memory slots | 1 |
| Warranty | |
| Base Warranty | Non Non |
