TRIPP LITE SmartRack 50U Heavy-Duty 4-Post Open Frame Rack - Organize and Secure Network Rack Equipment
ITCurry #: 57904500 | Article #: SR4POST50HD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

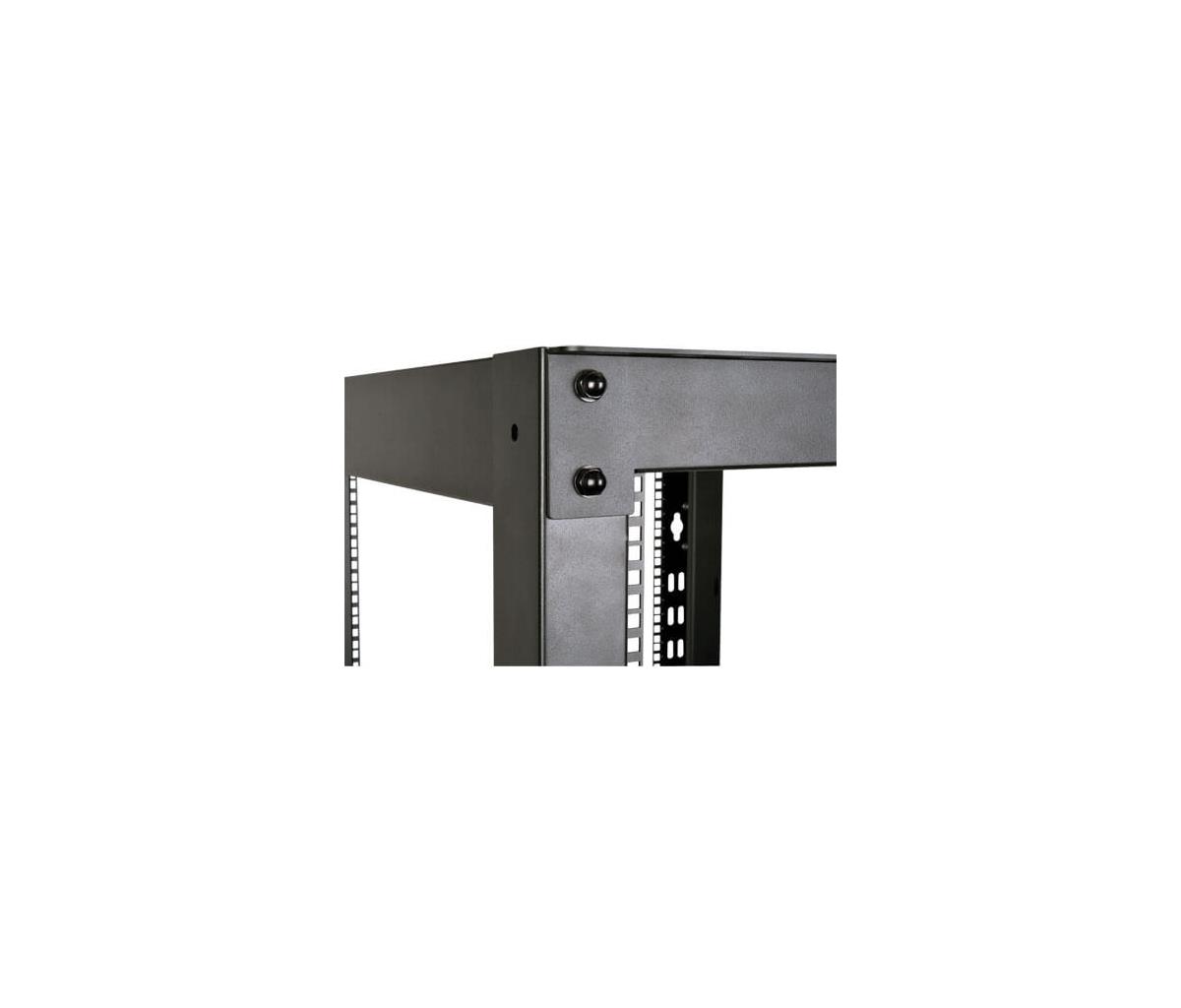

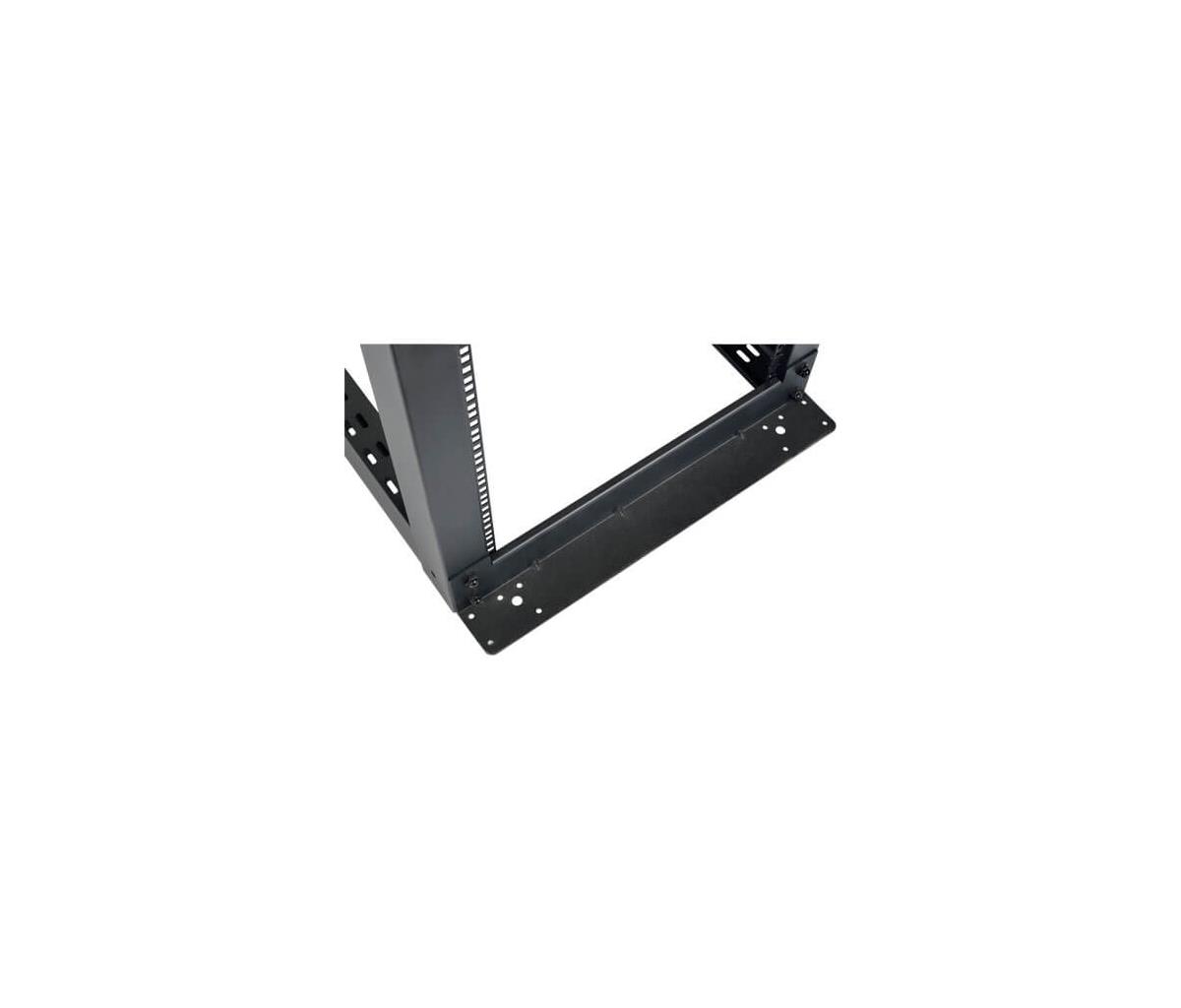

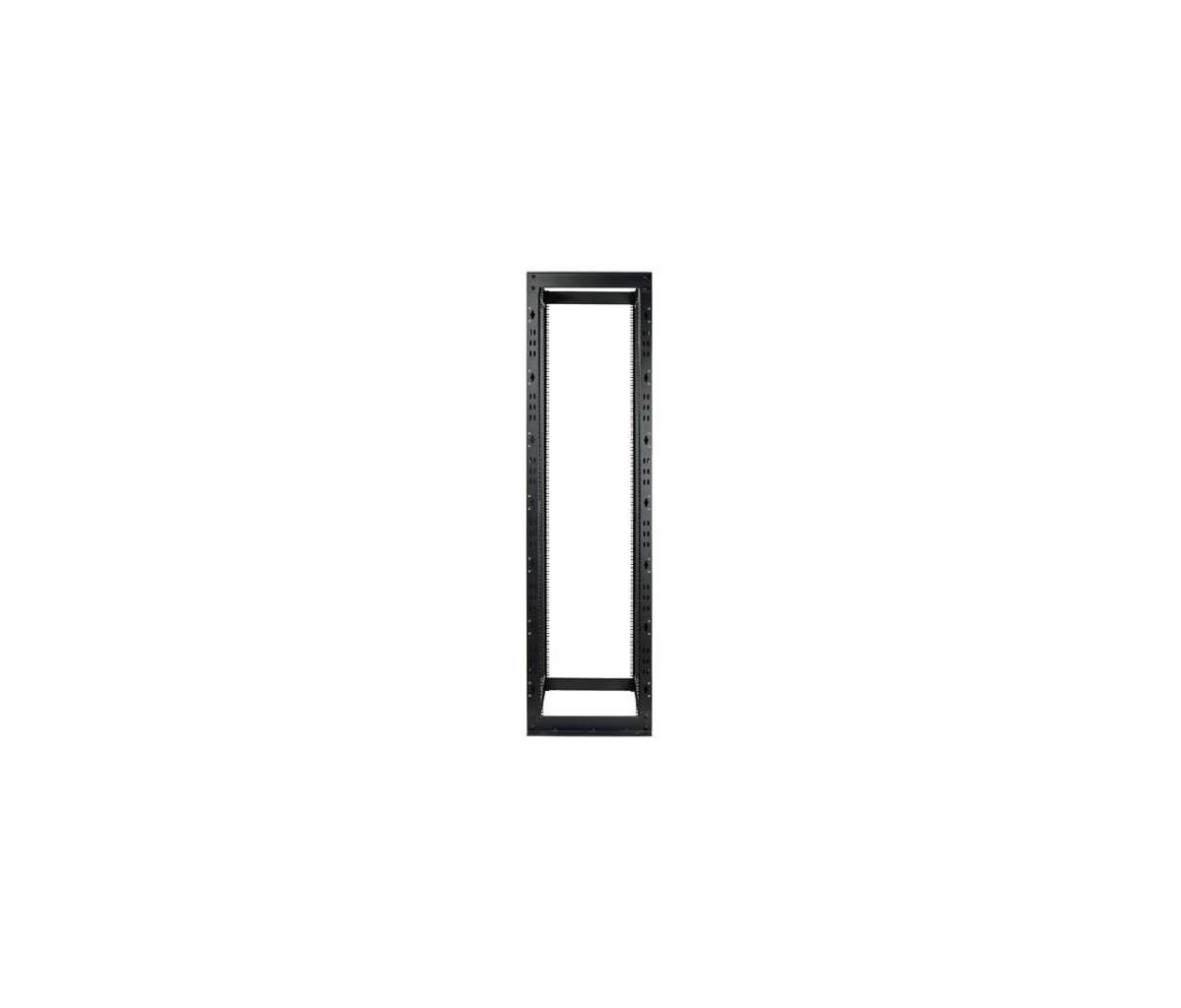

This 50U Heavy-Duty 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST50HD is a simple solution for housing IT equipment in secure environments and other areas that don't require a lockable rack solution. This 50U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 3,000 pounds (1360.8 kilograms). The SR4POST50HD comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side.

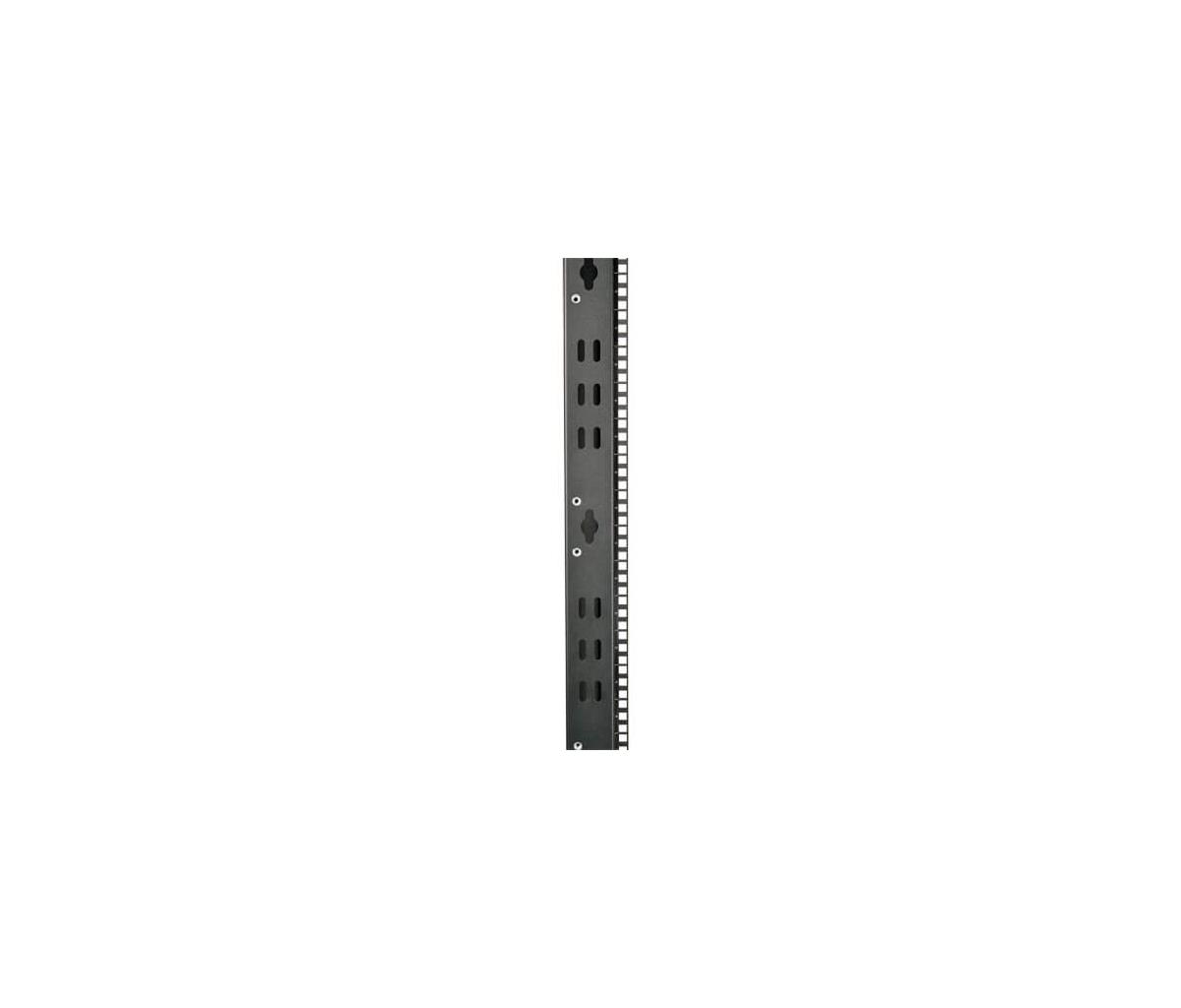

The open design of the SR4POST50HD provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19-inch rack equipment. The SR4POST50HD supports equipment depths up to 35 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers.
The optional SRCASTERHDKIT Heavy-Duty Rolling Caster Kit (sold separately) adds mobility to the SR4POST50HD. The SR4POST50HD also supports optional side panels with the SR50SIDE4PHD, a set of two half-size side panels that add a finished look to end-of-row racks in your data center.
| Warranty | |
| Base Warranty | Non Non |
| Features | |
| Product colour | Black |
| Housing material | Steel |
| Maximum weight capacity | 1361 kg |
| Rack capacity | 50U |
| Certification | EIA-310-D, IEC 60297-3-100 |
| Country of origin | China |
| Weight & dimensions | |
| Width | 609.6 mm |
| Depth | 895.4 mm |
| Height | 2374.9 mm |
| Weight | 51.3 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 241.3 mm |
| Package depth | 2470.2 mm |
| Package height | 171.4 mm |
| Package weight | 54.4 kg |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332185782 |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per pallet | 1 pc(s) |
| Master (outer) case width | 1054.1 mm |
| Master (outer) case length | 2501.9 mm |
| Master (outer) case height | 685.8 mm |
| Master (outer) case gross weight | 653.2 kg |
| Products per master (outer) case | 12 pc(s) |
| Harmonized System (HS) code | 8517.79.0000 |
