Product Information

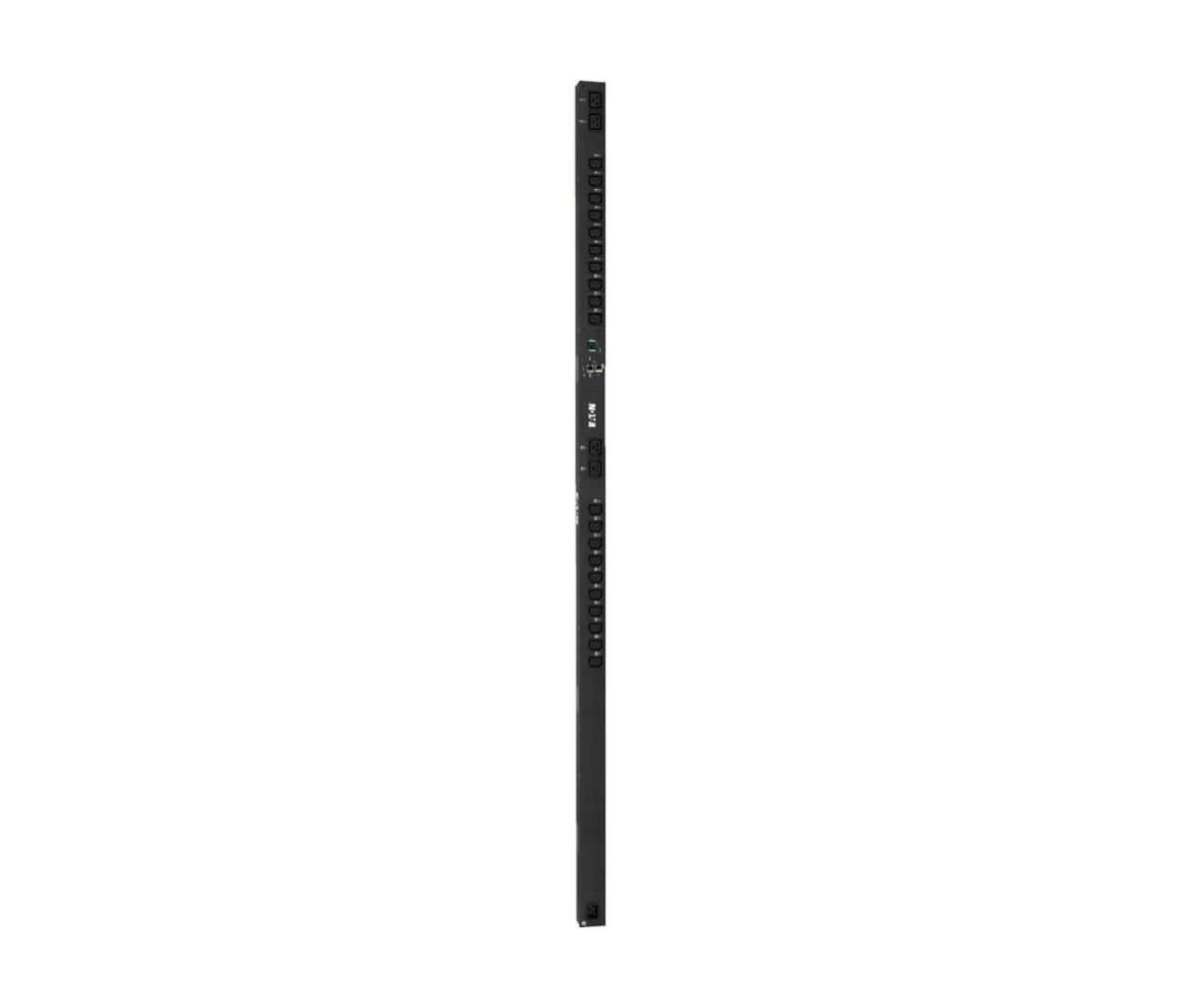

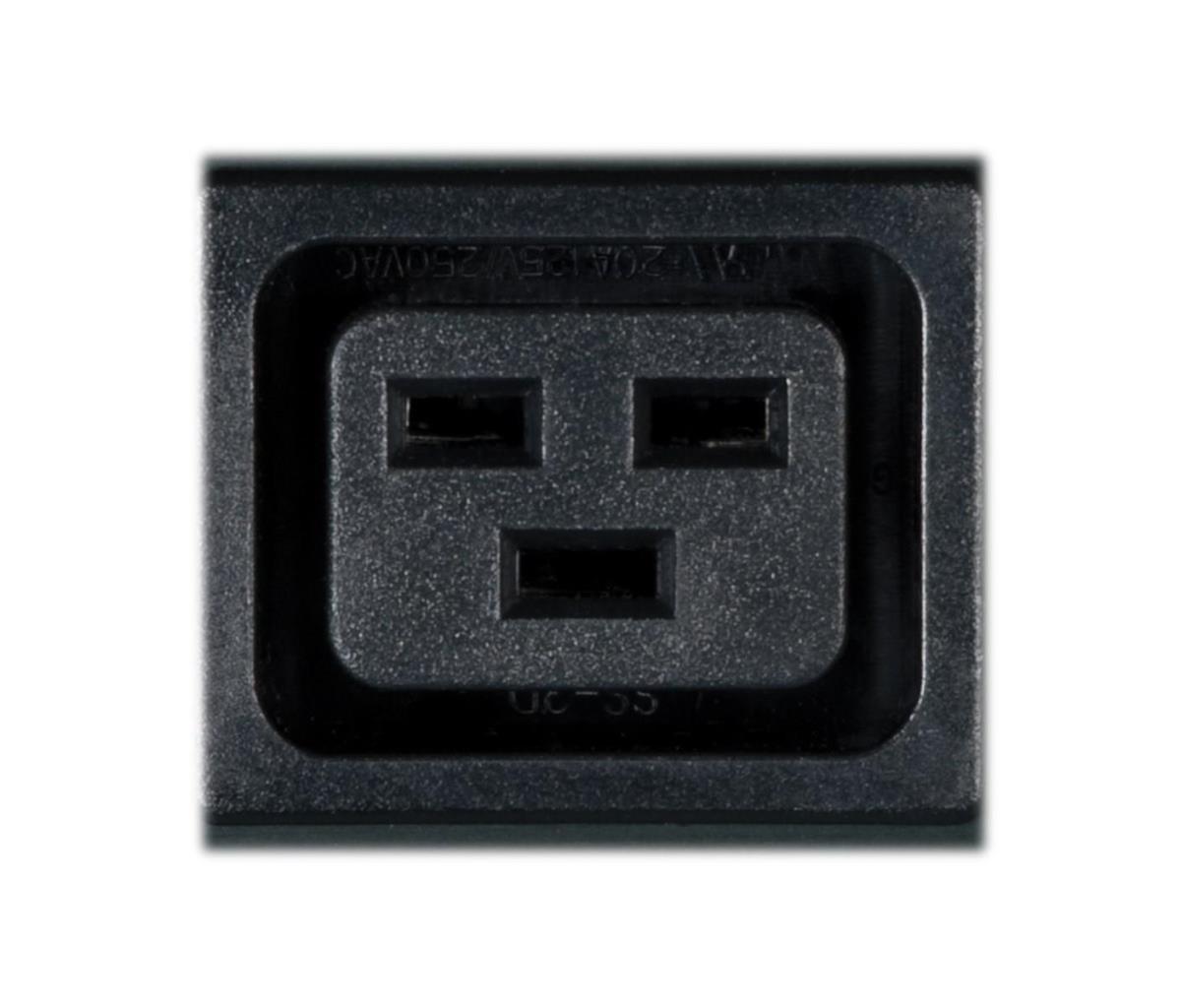

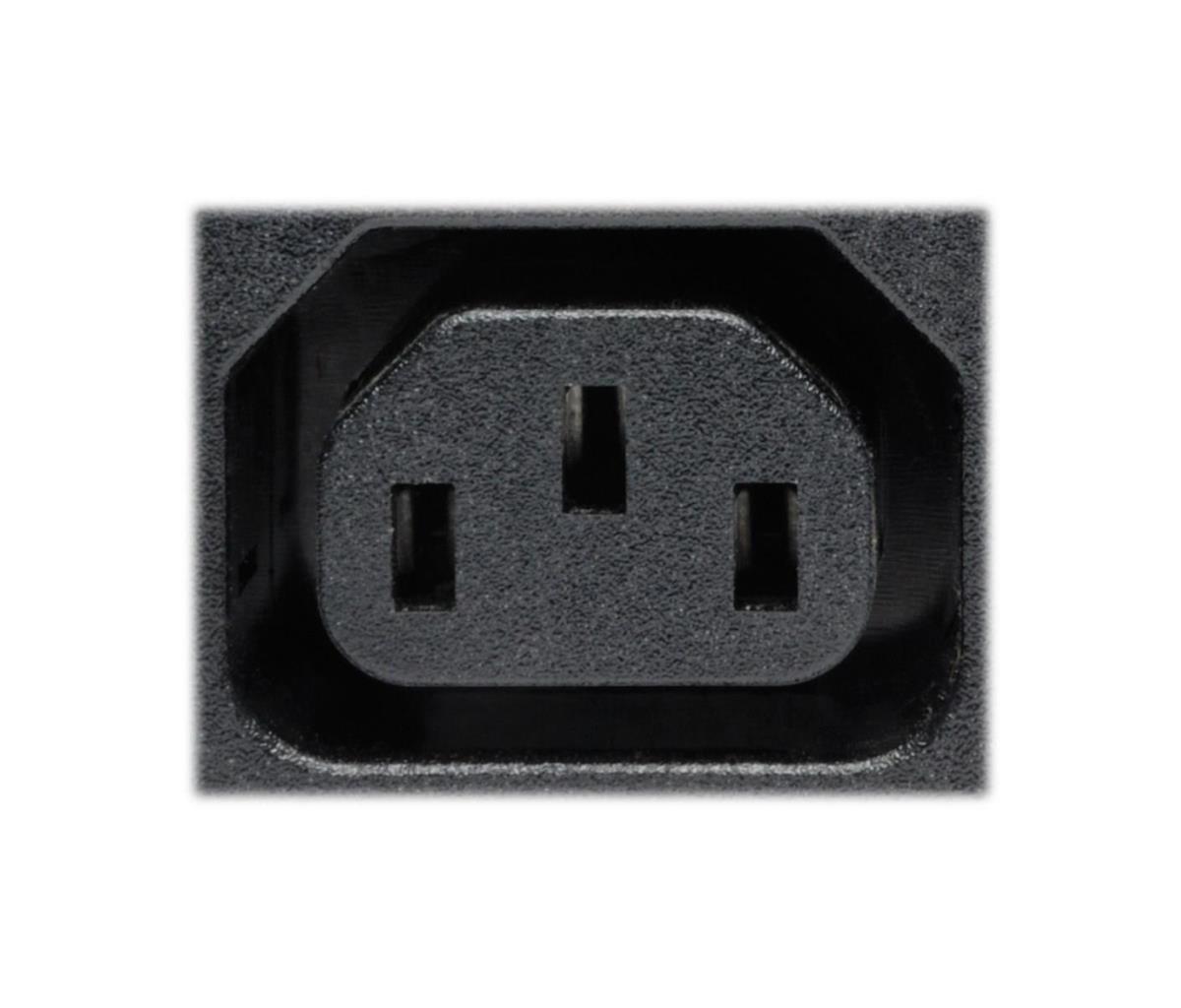

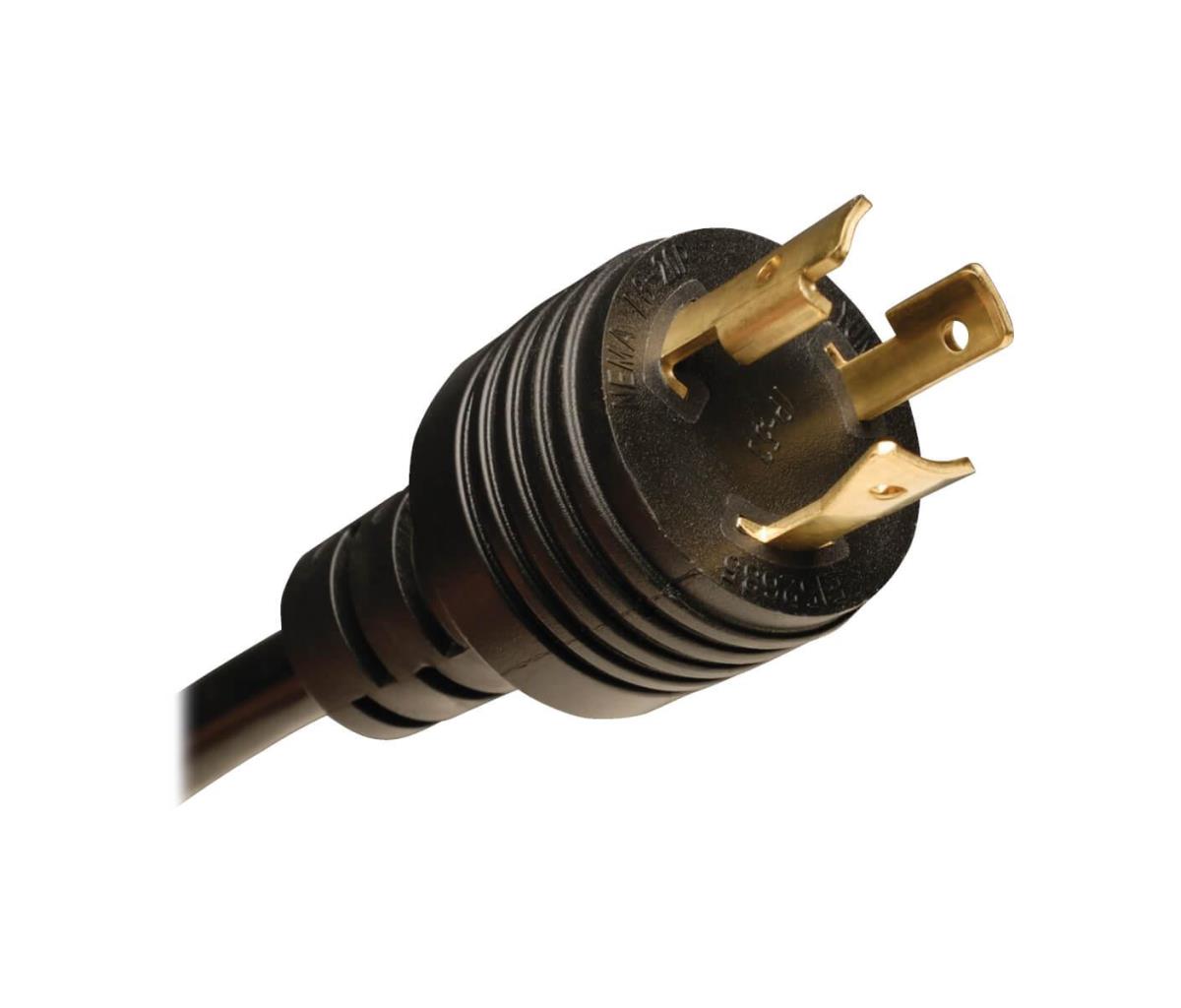

The PDUMV20HVNETLX 3.3-3.7kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-ft. (3.05 m) cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source, generator or protected UPS.

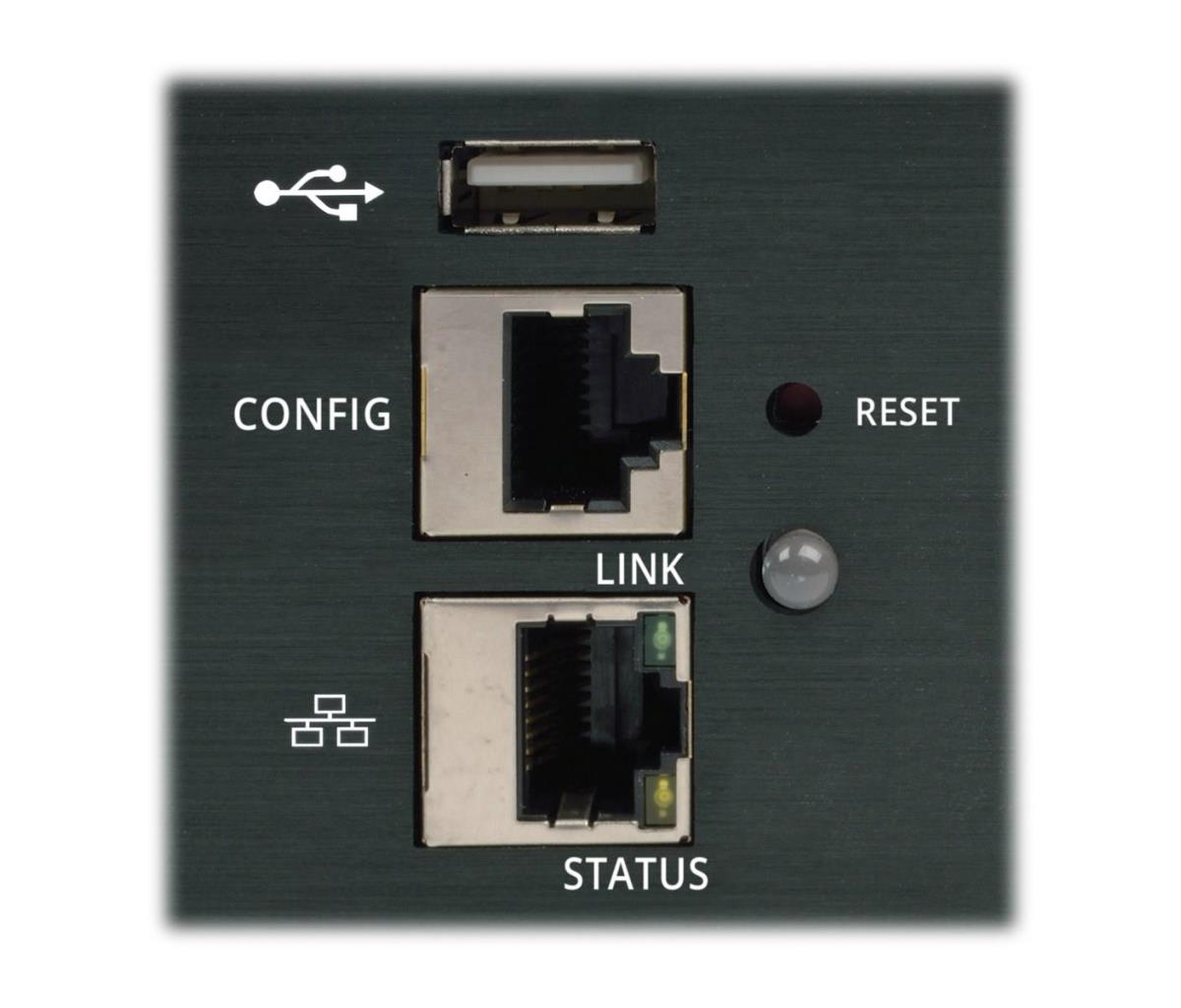

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

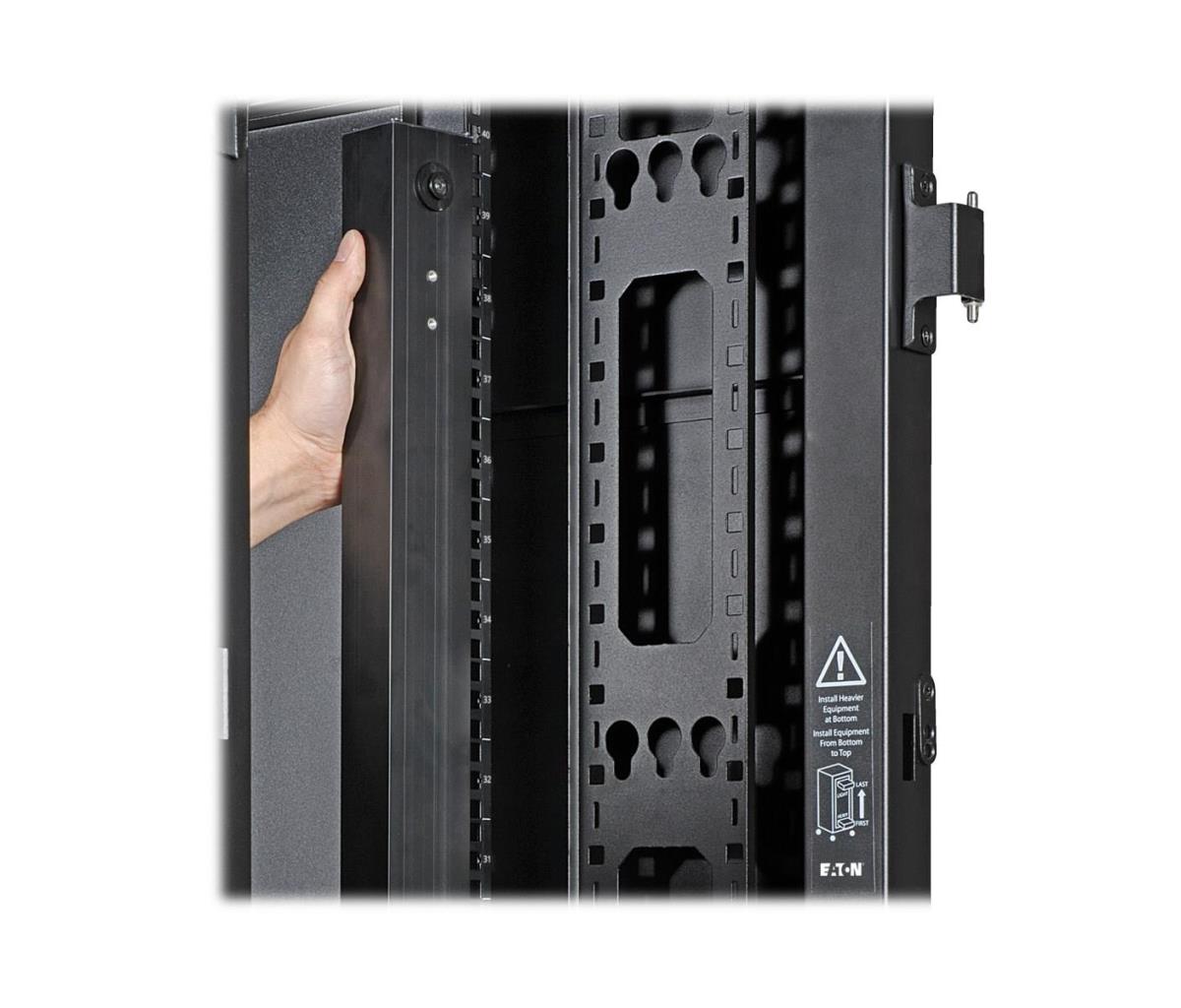

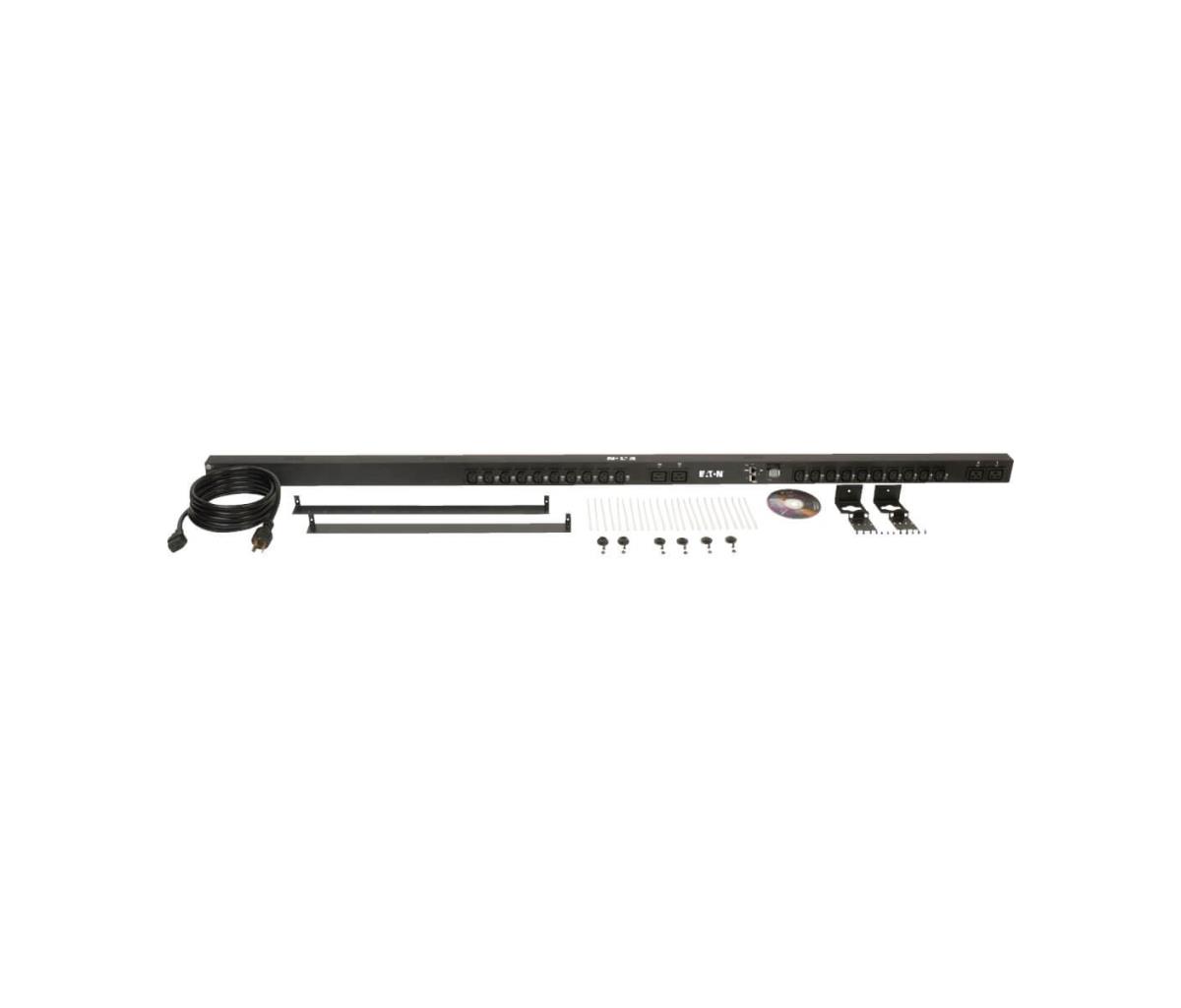

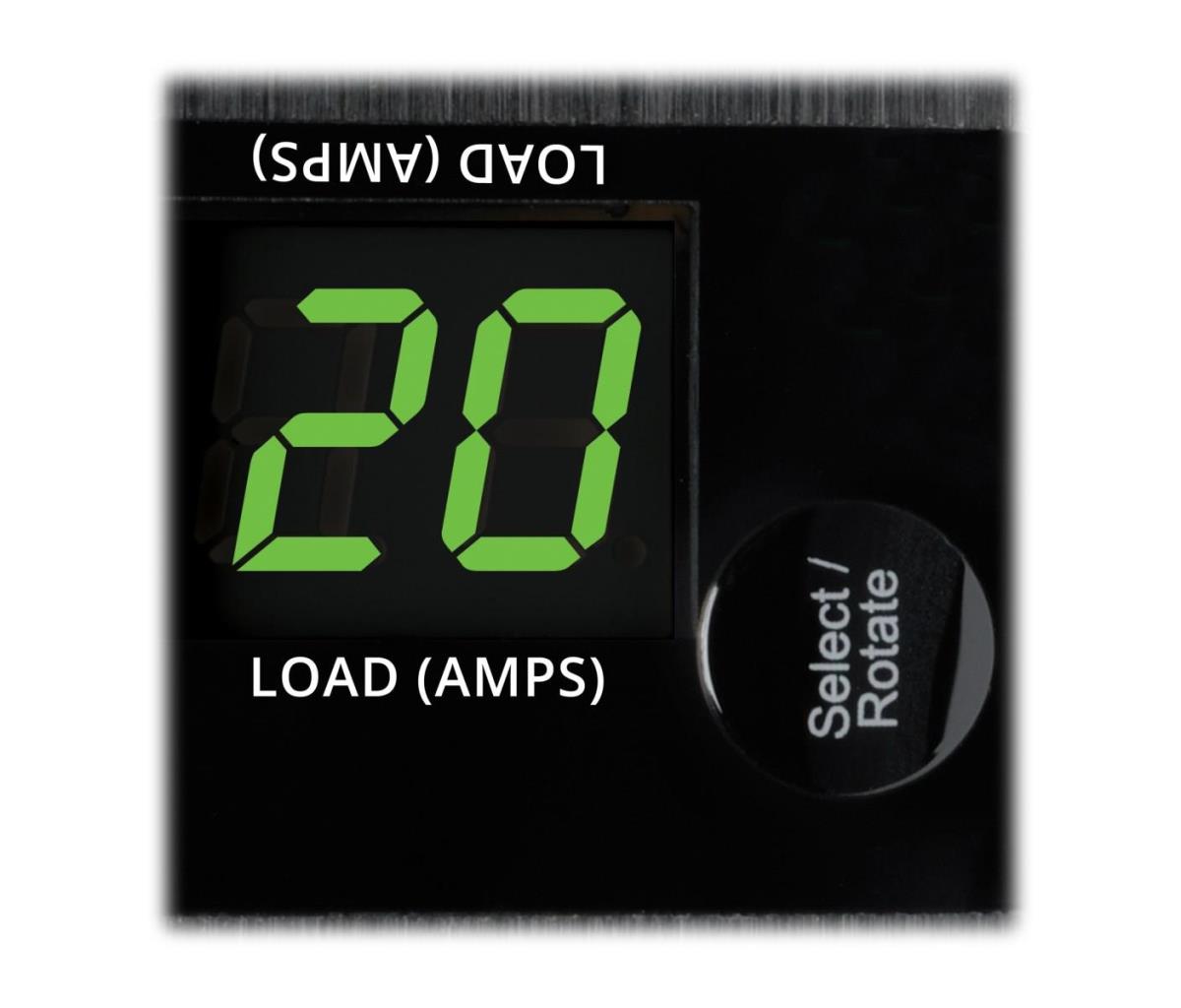

A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
| Design | |
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| LED indicators | Power, Status |
| Cable length | 3.05 m |
| Management features | |
| Supported network protocols | HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP |
| Power | |
| Nominal input voltage | 200-240 V |
| Maximum current | 20 A |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | TAA, UL, CE, FCC, NOM, EN55022:2010+2011, EN55024:2010 |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 60 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 67 mm |
| Dimensions (WxDxH) | 56 x 67 x 17778 mm |
| Height | 17778 mm |
| Weight | 3.86 kg |
| Packaging data | |
| Package weight | 6.44 kg |
| Package width | 162.6 mm |
| Package depth | 1854.2 mm |
| Package height | 134.6 mm |
| Logistics data | |
| Country of origin | Taiwan |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
