TRIPP LITE Basic PDU 7.4kW Single-Phase 230V 10 C13 Outlets IEC 309 32A Blue Input 3.6 m Cord 1U Rack-Mount
ITCurry #: 57904452 | Article #: PDUH32HV-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

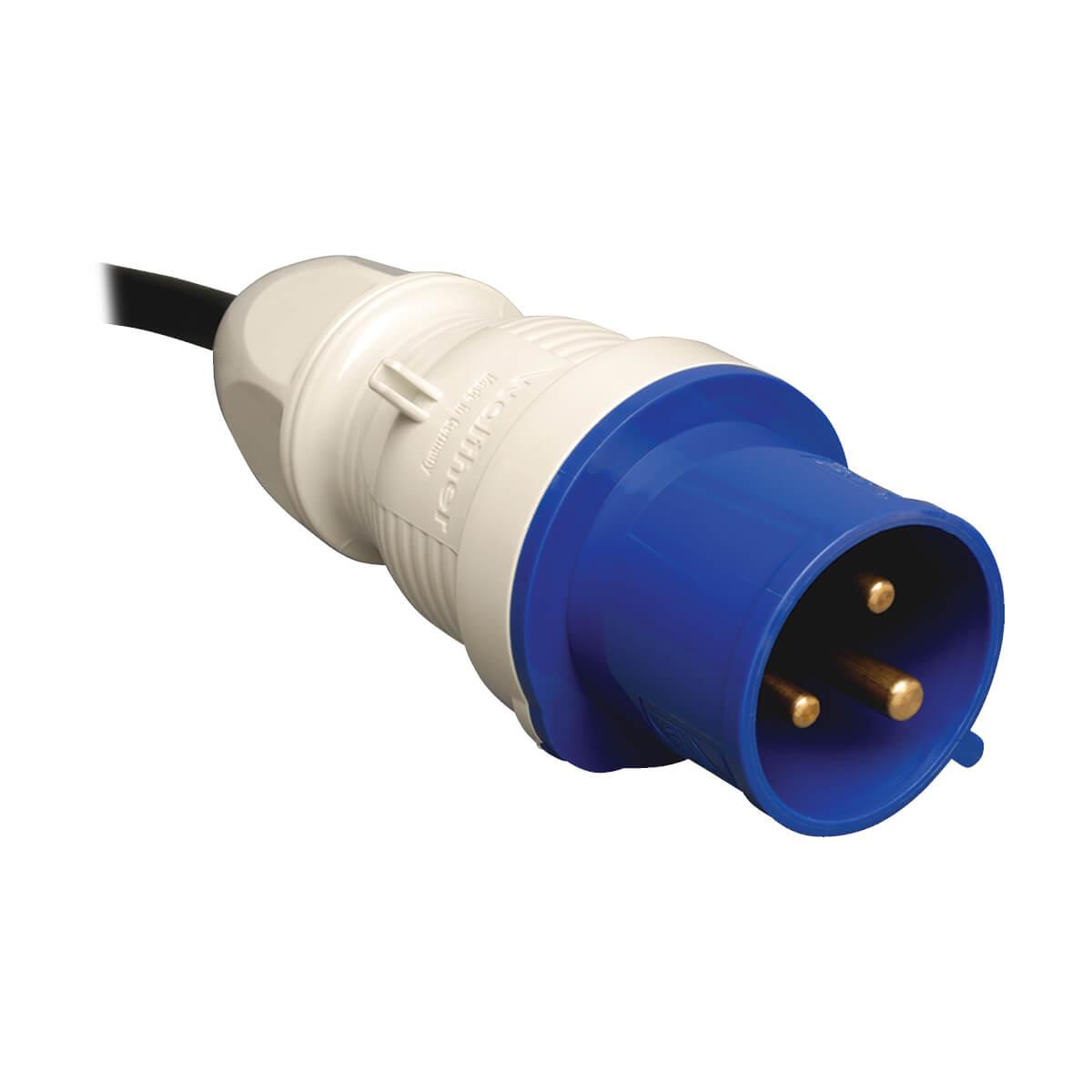

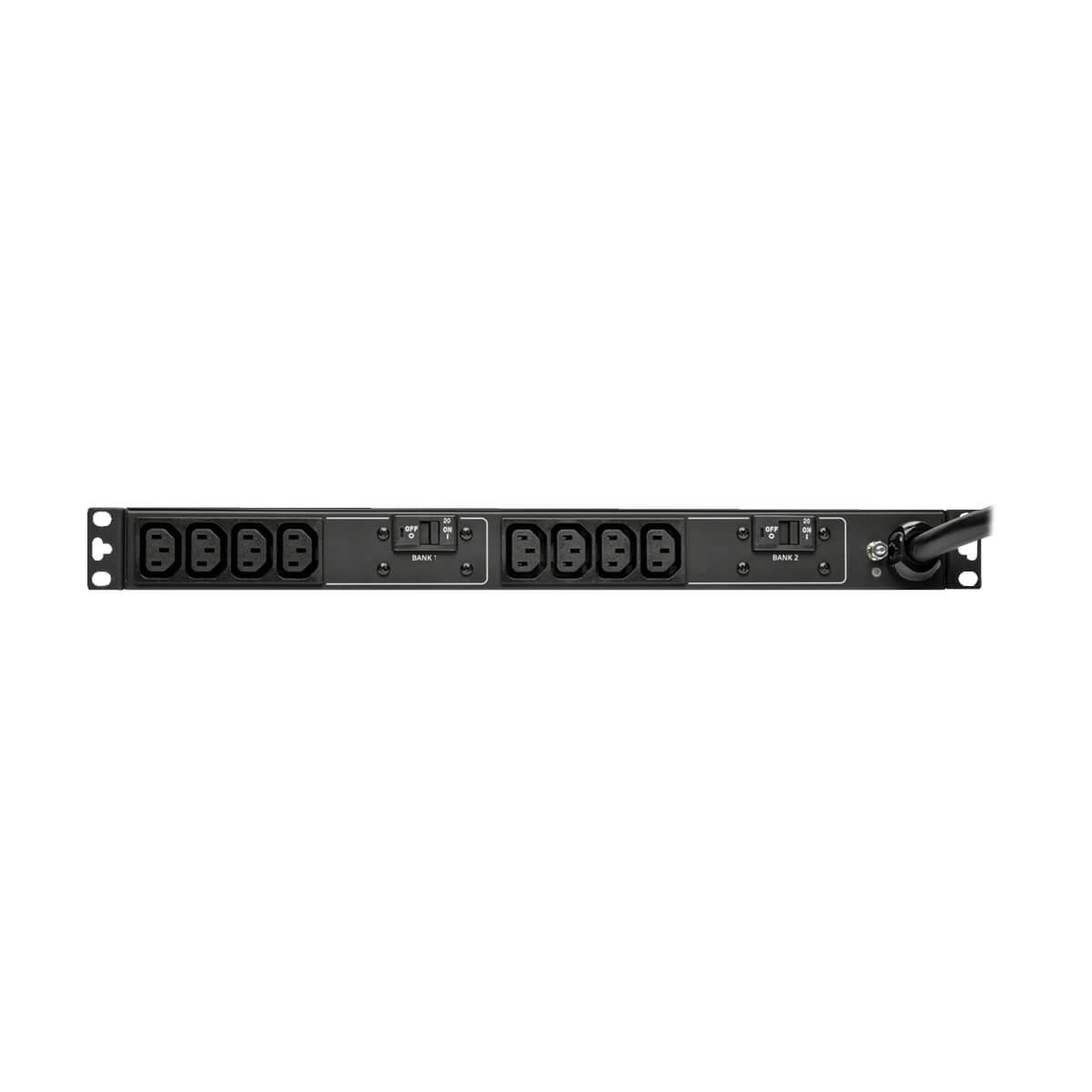

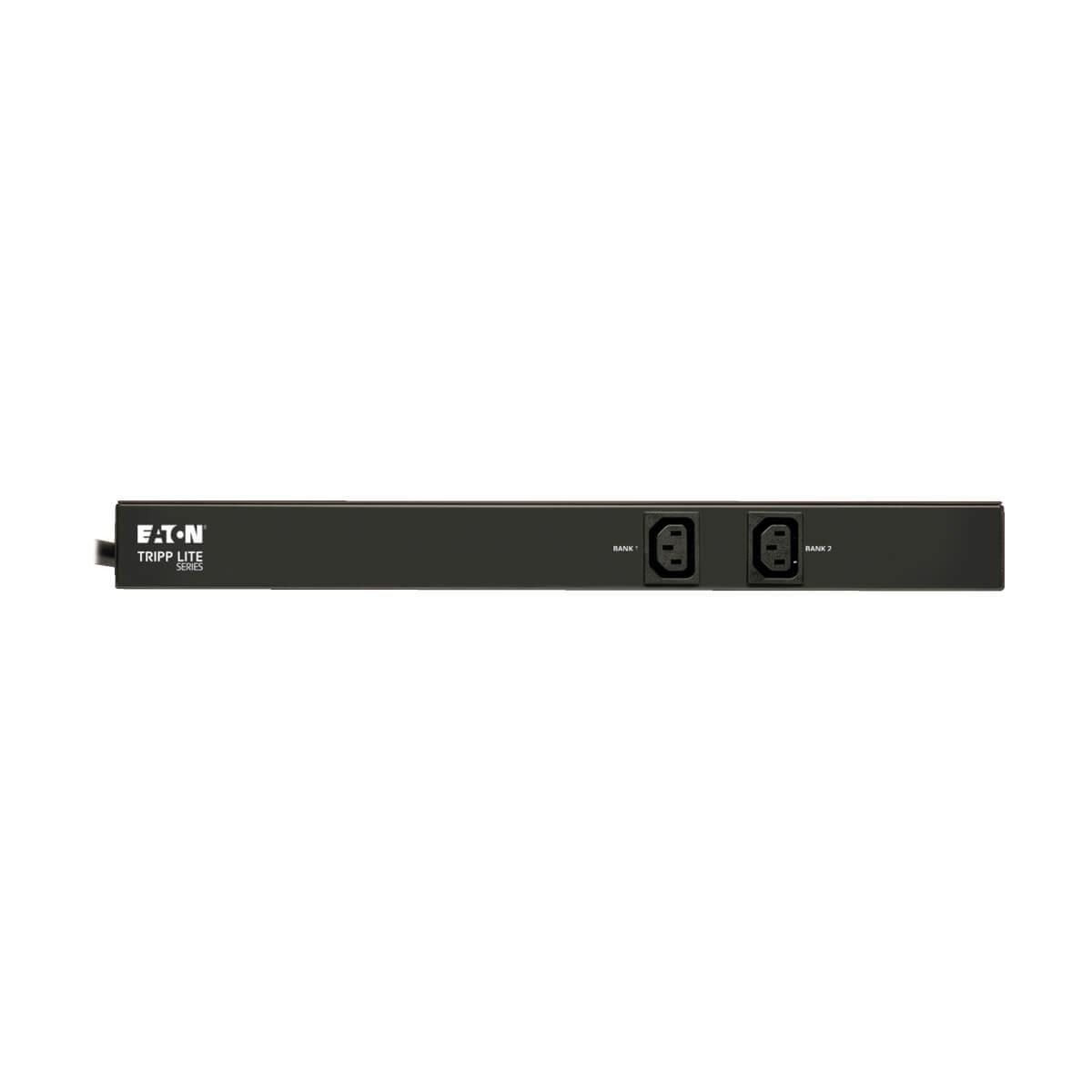

The PDUH32HV 7.7kW Single-Phase 200-240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH32HV features 10 total outlets—two in front and eight in the rear. The IEC 309 32A Blue (2P+E) input plug with 3.6 m cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
| Design | |
| PDU types | Basic |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Metal |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler |
| Features | |
| Certification | CE |
| Power | |
| Nominal input voltage | 200-240 V |
| Maximum current | 32 A |
| Nominal output voltage | 200-240 V |
| Output voltage | 240 V |
| Weight & dimensions | |
| Width | 439.4 mm |
| Depth | 95.2 mm |
| Dimensions (WxDxH) | 445 x 95.3 x 45 mm |
| Height | 43.2 mm |
| Weight | 2.87 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 514 x 286 x 76 mm |
| Package weight | 3.21 kg |
| Package width | 514.4 mm |
| Package depth | 285.8 mm |
| Package height | 76.2 mm |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 øC |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Master (outer) case GTIN (EAN/UPC) | 10037332183221 |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 508 mm |
| Master (outer) case length | 533.4 mm |
| Master (outer) case height | 304.8 mm |
| Master (outer) case gross weight | 18 kg |
| Products per master (outer) case | 5 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
