TRIPP LITE Rack Enclosure Server Cabinet Shock Pallet W/ Doors & Sides 42u
ITCurry #: 57903655 | Article #: SR42UBSP1-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

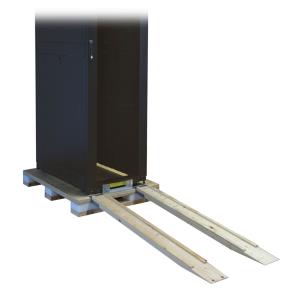

42U SmartRack Enclosure ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. The pallet's protective cushion safeguards the enclosure and the precision components it contains during re-shipping. Reinforced pallets and reusable packaging provide the flexibility to fully configure rack enclosures in a centralized location and safely re-ship them to remote sites, saving significant service costs. They also allow the freedom to custom-configure enclosures with network and server hardware along with UPS systems, PDUs, KVM switches and a variety of other devices prior to final installation.

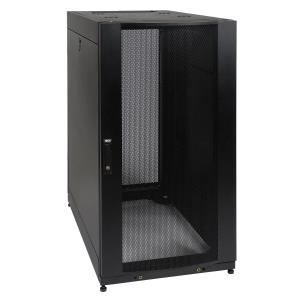

SmartRack enclosures are designed for secure, high density server and networking applications in IT environments. Designed with provisions to integrate cooling, power distribution and cable management, SmartRack enclosures make ideal homes for mission-critical equipment. Vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-D compliant 19" equipment. Enclosures ship fully assembled for rapid deployment and roll into place on heavy-duty casters. Toolless mounting slots allow quick installation of PDUs and vertical cable managers. Adjustable mounting rails include an easy-view depth index to eliminate time-consuming measurements. Lightweight modular doors and side panels provide safe, convenient service access. Integrated baying tabs facilitate combining enclosures in rows for standard data center baying applications. SmartRack enclosures hold up to 3000 lbs (1360.8 kgs) and support cooling, cable management, power distribution and monitoring features that keep critical servers and network equipment operating nonstop. Perforated doors permit massive front to rear airflow that exceeds servers manufacturer requirements. Enclosures are fully compatible with hot-aisle / cold-aisle data center configurations.
| Features | |
| Rack capacity | 42U |
| Type | Freestanding rack |
| Maximum weight capacity | 1360.78 kg |
| Product colour | Black |
| Certification | UL60950, RoHS, CE |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 600.2 mm |
| Depth | 1092.2 mm |
| Height | 1993.9 mm |
| Weight | 129.7 kg |
| Packaging data | |
| Package width | 660.4 mm |
| Package depth | 1155.7 mm |
| Package height | 2159 mm |
| Package weight | 152.4 kg |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
| Master (outer) case width | 660.4 mm |
| Master (outer) case length | 1155.7 mm |
| Master (outer) case height | 2159 mm |
| Master (outer) case gross weight | 152.4 kg |
| Products per master (outer) case | 1 pc(s) |
