Product Information
A deeper version of our standard 42U SmartRack® cabinet. This enclosure is 1143 millimeters deep (45 inches) compared to the standard 1050 millimeters. This extra depth allows for high-density equipment installations. It allows extra space for moving the cable management back, as well as providing space for mounted equipment that has hot-swap, removable power supplies out the back of the enclosure.
The SR42UBDP houses 3,000 pounds (1360.8 kilograms) of standard 19-inch rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from four to 42 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.
Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.
With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR42UBDP provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR42UBDP meets all requirements toward PCI DSS compliance.
The top panel of the SR42UBDP is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access, the SR42UBDP is open-bottom.
All components of the SR42UBDP are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

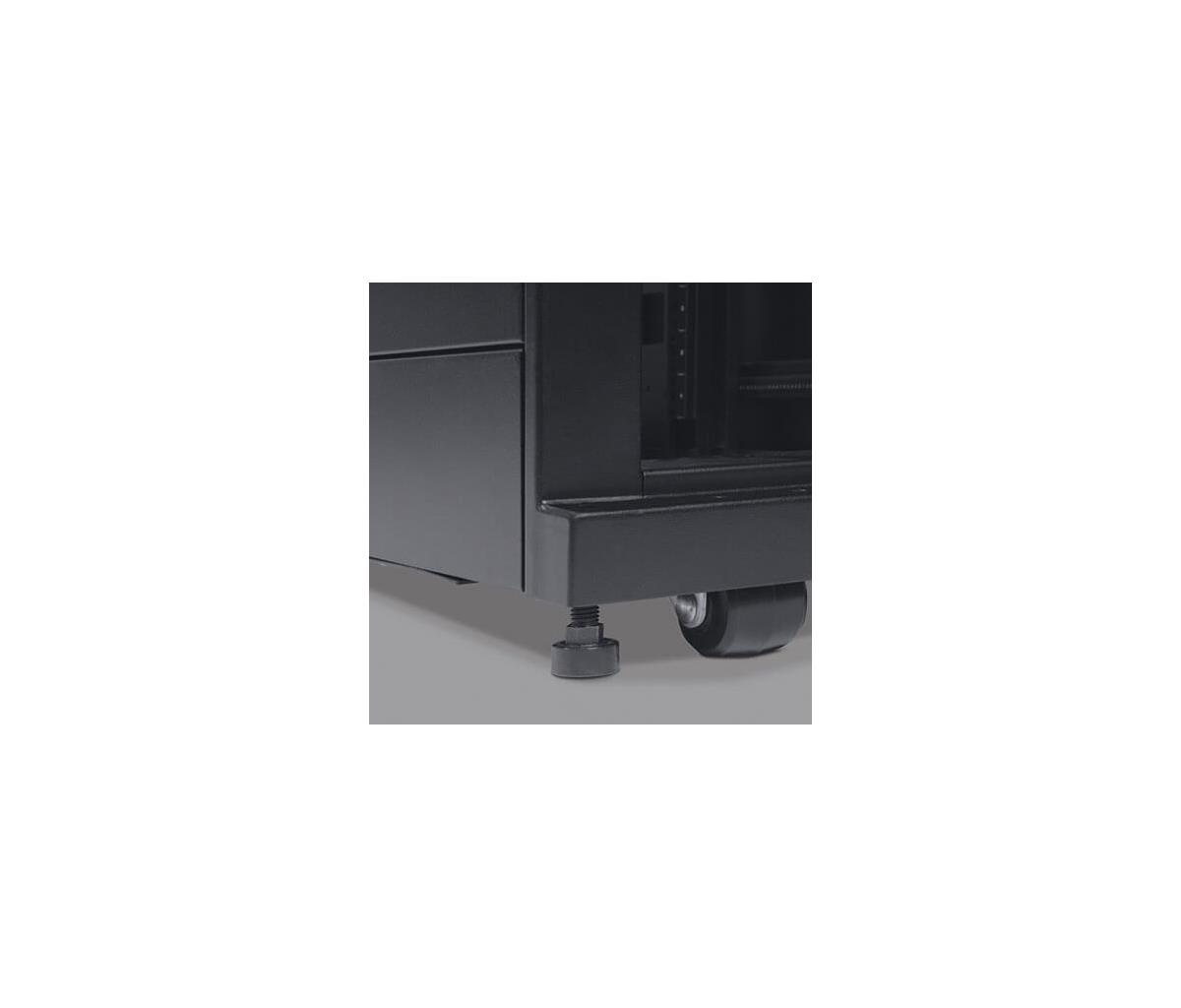

To simplify deployment, the SR42UBDP comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
| Features | |
| Rack capacity | 42U |
| Type | Freestanding rack |
| Maximum weight capacity | 1361 kg |
| Product colour | Black |
| Certification | EIA-310-E, UL60950; RoHS |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 600.2 mm |
| Depth | 1219.2 mm |
| Height | 1993.9 mm |
| Weight | 142.9 kg |
| Packaging data | |
| Package width | 850.9 mm |
| Package depth | 1270 mm |
| Package height | 2159 mm |
| Package weight | 165.6 kg |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
| Master (outer) case width | 850.9 mm |
| Master (outer) case length | 1270 mm |
| Master (outer) case height | 2159 mm |
| Master (outer) case gross weight | 165.6 kg |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Weight (imperial) | 142.9 kg (315 lbs) |
