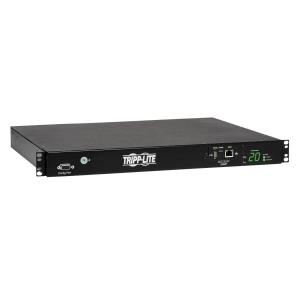

TRIPP LITE PDU Metered 208/230/240v 20a 6x C19 32x C13
ITCurry #: 57903446 | Article #: PDUMV20HVFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
210.51
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information
16/20A single phase 230/208V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency derated to 16A continuous)
Two-digit lighted meter reports combined total output current in amps
10ft / 3m detachable input cable with NEMA L6-20P plug
C20 inlet accepts a variety of 16A international cordsets
0U 63.75in / 162cm vertical rackmount format installs using no rack spaces
38 total outlets (6 C19, 32 C13)
Included plug-lock inserts ensure components remain connected and powered
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces
| Design | |
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 38 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | NEMA L6-20P, IEC-320 C20 |
| Features | |
| LED indicators | Yes |
| Cable length | 3.05 m |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 200-240 V |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | UL60950-1 (USA, Canada), NOM (Mexico), CE (IEC 60950) |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 øC |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 57 mm |
| Depth | 95 mm |
| Height | 1620 mm |
| Weight | 2.36 kg |
| Packaging data | |
| Package weight | 4.31 kg |
| Package width | 88.9 mm |
| Package depth | 1663.7 mm |
| Package height | 127 mm |
| Logistics data | |
| Country of origin | China |
| Master (outer) case GTIN (EAN/UPC) | 10037332139341 |
| Master (outer) case width | 406.4 mm |
| Master (outer) case length | 1676.4 mm |
| Master (outer) case height | 177.8 mm |
| Master (outer) case gross weight | 27.6 kg |
| Products per master (outer) case | 6 pc(s) |
| Warranty | |
| Base Warranty | Non Life time |
