Basic Rack Pdu 12.5kw 208v0u 30x C13 6x C19 10ft/3m Cord
ITCurry #: 02809797 | Article #: AP7598
slide 2 of 6
Price:
656.86
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 6 to 10 of 15
Product Information
APC Basic Rack PDU , Input: 208V 3PH , Input Connections: Compatible With Hubbell CS8365C , Cord Length: 10 feet ( 3.05 meters ) , Output: 208V , Output Connections: IEC 320 C13,IEC 320 C19.
Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
| Design | |
| Product colour | Black |
| Ports & interfaces | |

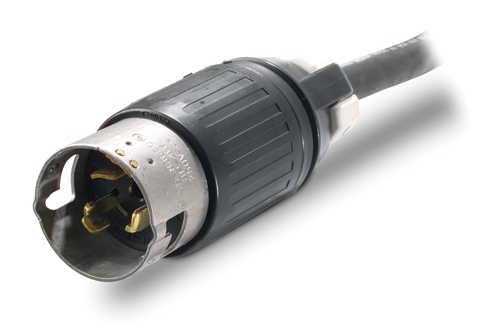

| Input connection type | Hubbell CS8365C |
| Output connections | 30 x IEC 320 C13, 6 x IEC 320 C19 |
| Features | |
| Cable length | 3.05 m |
| Power | |
| Nominal input voltage | 208 V |
| Nominal output voltage | 208 V |
| Maximum input current per phase | 35 A |
| Maximum total current draw per phase | 35 A |
| Certificates | |
| Certification | cUL, CSA C22.2 No. 60950-1-03, UL 60950-1, UL |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 øC |
| Storage temperature (T-T) | -25 - 65 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 89 mm |
| Dimensions (WxDxH) | 56 x 89 x 1778 mm |
| Height | 1778 mm |
| Weight | 8.79 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 152 x 127 x 2108 mm |
| Package weight | 11.9 kg |
| Package width | 152 mm |
| Package depth | 127 mm |
| Package height | 2108 mm |
