TRIPP LITE Netcontroller 19in Vga Console KVM Switch - 16 Port
ITCurry #: 57903574 | Article #: B040-016-19-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

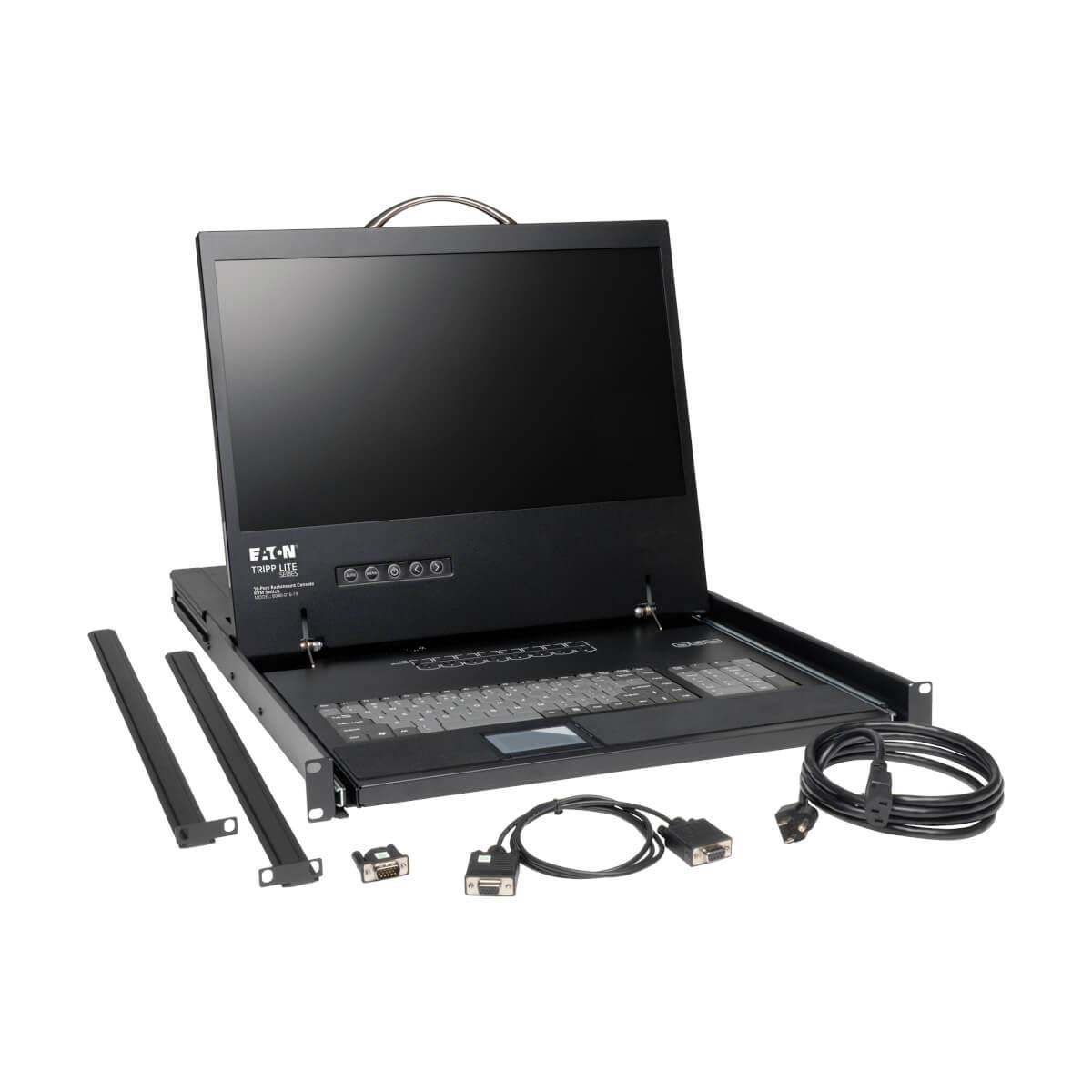

The B040-016-19 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the cost-effective solution for controlling up to 16 directly connected computers/servers.
The B040-016-19 has a built-in 19-inch LCD screen supports video resolutions up to 1366 x 768. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hotkey commands. Password protection prohibits unauthorized users from accessing the connected computers.
With this KVM switch, you can increase the number of connected computers up to 256 by daisy-chaining up to 15 B042-Series KVM switches. Uses P780-Series combo cable kits that support both PS/2 and USB connections without the need to purchase additional cables or adapters. An extra HD15 port allows an additional VGA monitor or an external console to be connected. Add a B051-000 IP Remote Access Unit to connect from anywhere in the world. An additional USB port lets you connect an external mouse or keyboard. When not in use, the B040-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Rugged steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1366 x 768 pixels |
| Display | LCD |
| On Screen Display (OSD) | Yes |
| Technical details | |
| Material | Galvanized steel |
| Form factor | 1U |
| Built-in KVM switch | Yes |
| KVM switch ports quantity | 16 |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Country of origin | Taiwan |
| Ports & interfaces | |
| I/O ports | 16 x HD15F USB |
| Interface | PS/2; USB; VGA |
| Video port type | VGA |
| Certificates | |
| Certification | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, TUV (UL), CTUV, CE, FCC, NOM |
| Power | |
| Power consumption (typical) | 30 W |
| Power consumption (standby) | 5 W |
| AC adapter input voltage | 120/230 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1.4/0.8 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Weight & dimensions | |
| Width | 449.3 mm |
| Height | 43.4 mm |
| Depth | 722.4 mm |
| Weight | 14.5 kg |
| Packaging data | |
| Package weight | 18.5 kg |
| Package width | 591.8 mm |
| Package depth | 825 mm |
| Package height | 154.9 mm |
| Logistics data | |
| Master (outer) case width | 591.8 mm |
| Master (outer) case length | 825 mm |
| Master (outer) case height | 154.9 mm |
| Master (outer) case gross weight | 18.5 kg |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
