TRIPP LITE High-Speed HDMI 2.0b Extension Cable, Gripping Connector - 4K Ethernet, 60 Hz, 4:4:4, M/F, 20 ft. 6.1m
ITCurry #: 57906286 | Article #: P569-020-2B-MF-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

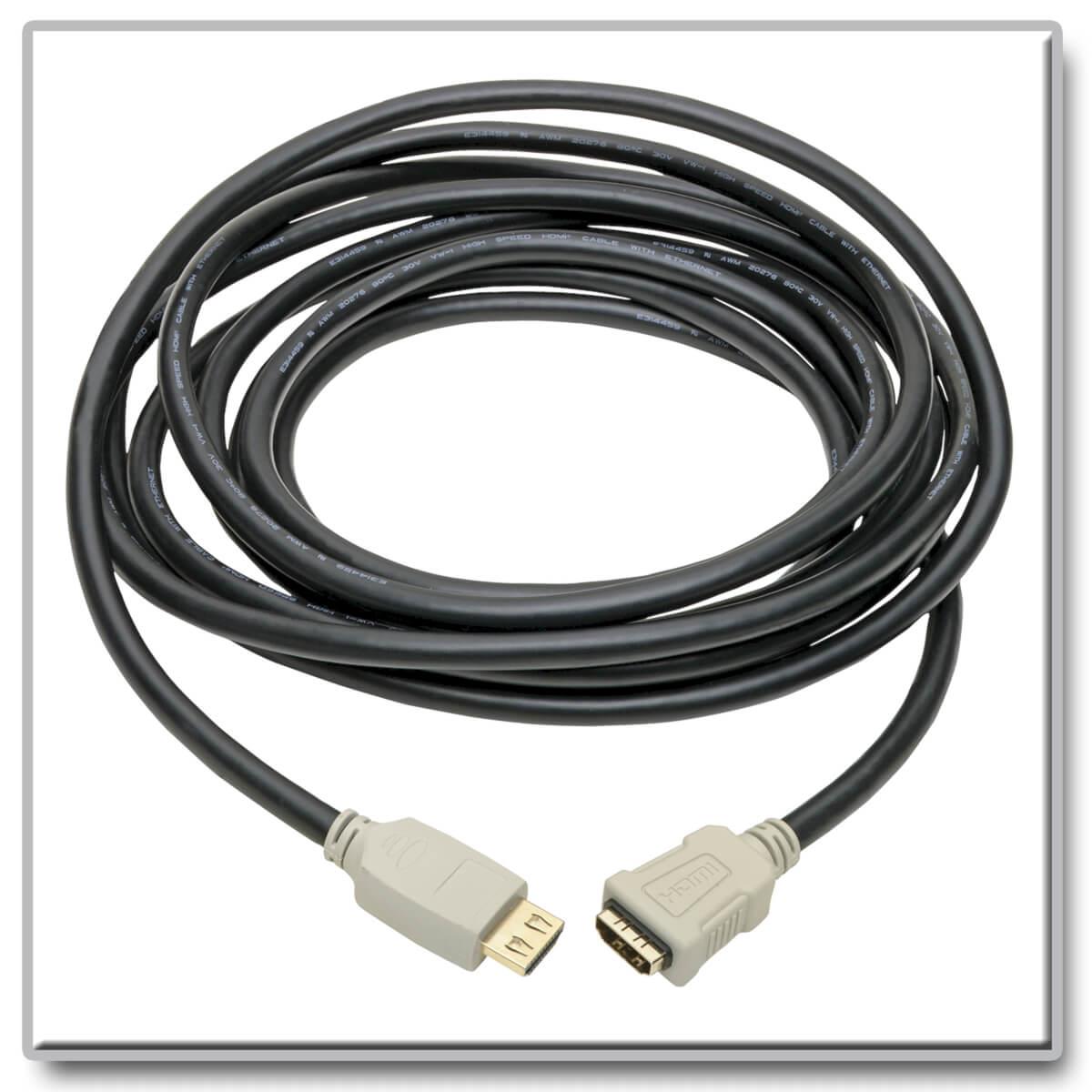

4K HDMI Cable Connects Home Theater or Digital Signage Audio/Video Components
This high-speed HDMI extension cable securely connects HDMI-enabled laptops, tablets, PCs, Blu-ray players, game consoles or satellite/cable TV boxes and HDTVs, HD monitors, projectors or home theater receivers. A special gripping male connector ensures components stay firmly attached to avoid viewing interruptions.
High-Speed Extension Cable Expands a Current 4K Connection by 20 ft.
The P569-020-2B-MF extends an existing one-foot (0.3-meter) 4K HDMI connection an additional 20 feet (6.1 meters) for a total of 21 feet (6.4 meters), while maintaining its original 4K/60Hz resolution. When the total length ranges between 21 feet and 30 feet (9.1 meters), the maximum display resolution drops to 4K/30Hz. Any total length between 30 feet and 60 feet (18.3 meters) finds the maximum resolution drop to 1080p.
Enjoy the Clarity of 4K HDMI Video with Multi-Channel Audio, HDR and 4:4:4 Color
This cable supports Ultra HD resolutions up to 4K/60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This cable also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

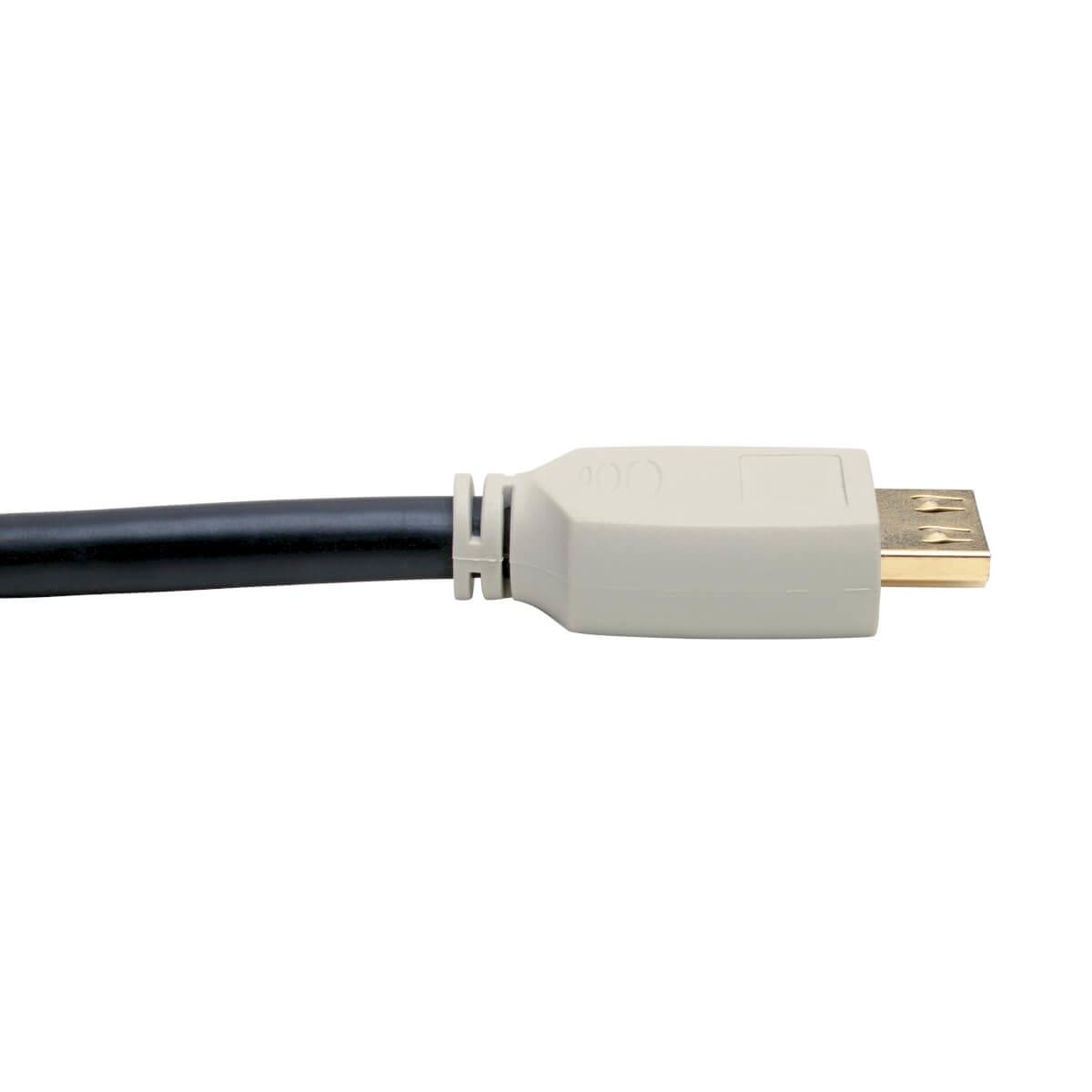

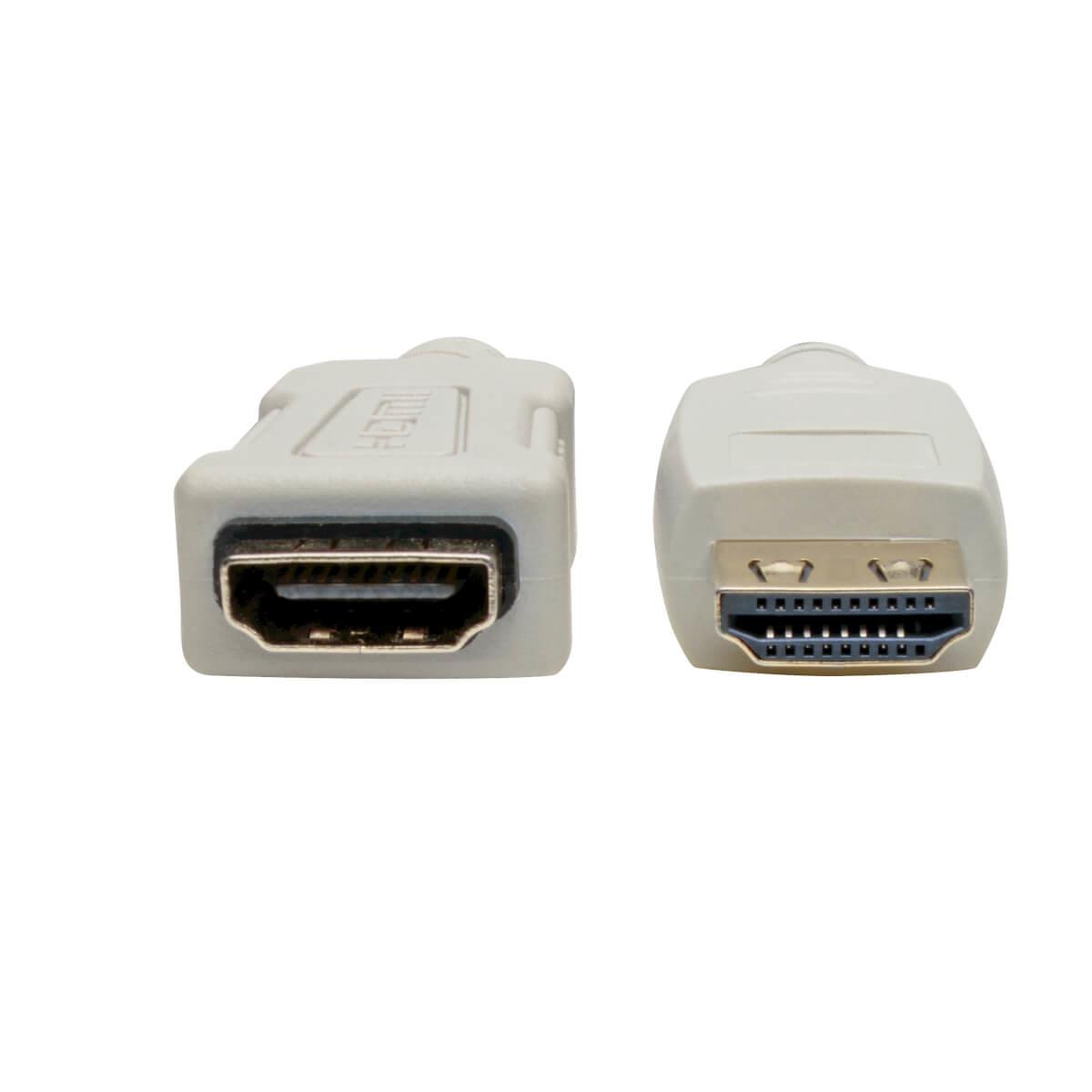

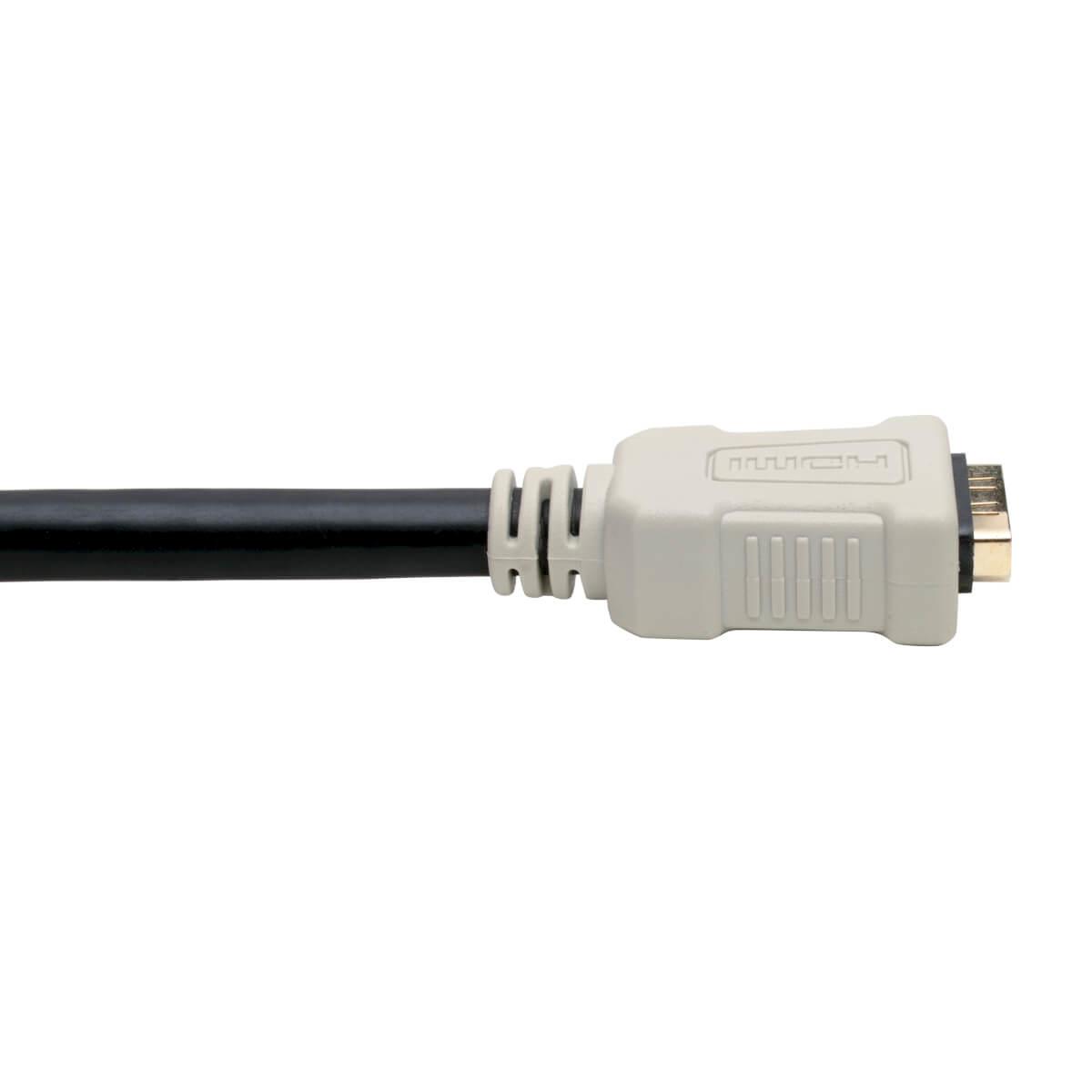

Avoid Signal Disruptions with an Extra-Secure Gripping HDMI Connector
Having a cable come loose accidentally can cause A/V signal loss right as the running back scrambles for the end zone or your avatar is surrounded by zombies. The specially designed HDMI male connector firmly grips the HDMI port on your equipment to help prevent accidental disconnection and signal disruption. With greater port retention than typical HDMI connectors, the gripping plug resists vibrations that can loosen connections over time. This is especially helpful for ensuring components stay attached in difficult-to-access installations.
Invest in Quality Construction for Reliable Performance
This extension cable supports Ethernet data connectivity, which allows web-capable devices to share their internet connection with other connected devices without the need for a separate Ethernet cable. An audio return channel simplifies setups between displays and A/V receivers. When used with an Apple digital A/V adapter, the cable supports iPad2 video mirroring for playing games, watching videos or displaying presentations.
| Features | |
| Cable length | 6.09 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Beige, Black |
| HDMI version | 2.0b |
| 3D | Yes |
| HDMI Ethernet channel | Yes |
| HDCP | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| AWG wire size | 28 |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 øC |
| Storage temperature (T-T) | -15 - 60 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Weight | 140 g |
| Package width | 177.8 mm |
| Package depth | 241.3 mm |
| Package height | 19 mm |
| Package weight | 140 g |
| Other features | |
| Depth | 241.3 mm |
| Height | 19 mm |
| Width | 177.8 mm |
| Country of origin | China |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case GTIN (EAN/UPC) | 10037332237757 |
| Harmonized System (HS) code | 8544.42.2000 |
| Master (outer) case width | 362 mm |
| Master (outer) case length | 406.4 mm |
| Master (outer) case height | 76.2 mm |
| Master (outer) case gross weight | 1.36 kg |
| Products per master (outer) case | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
