Tripp Lite Series 8-Port HDMI over CAT6 Splitter - 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA
ITCurry #: N4836753 | Article #: B127A-008-BH-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
HDMI Multi-Output Splitter Ideal for Digital Signage in Schools and Workplaces
This 4K transmitter/splitter is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
Extends a 4K A/V Transmission up to 230 ft. (70.1 m)... or Even Farther

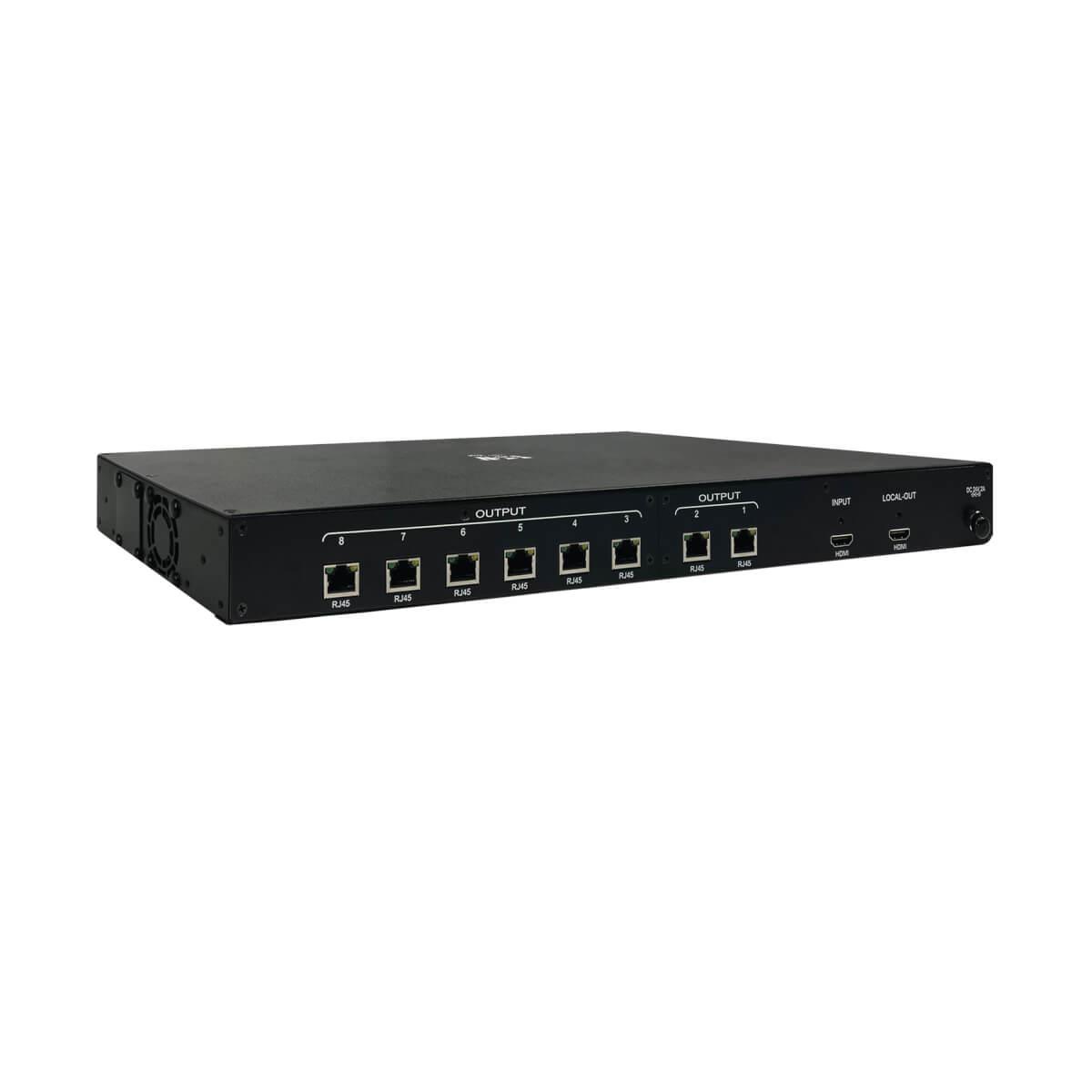

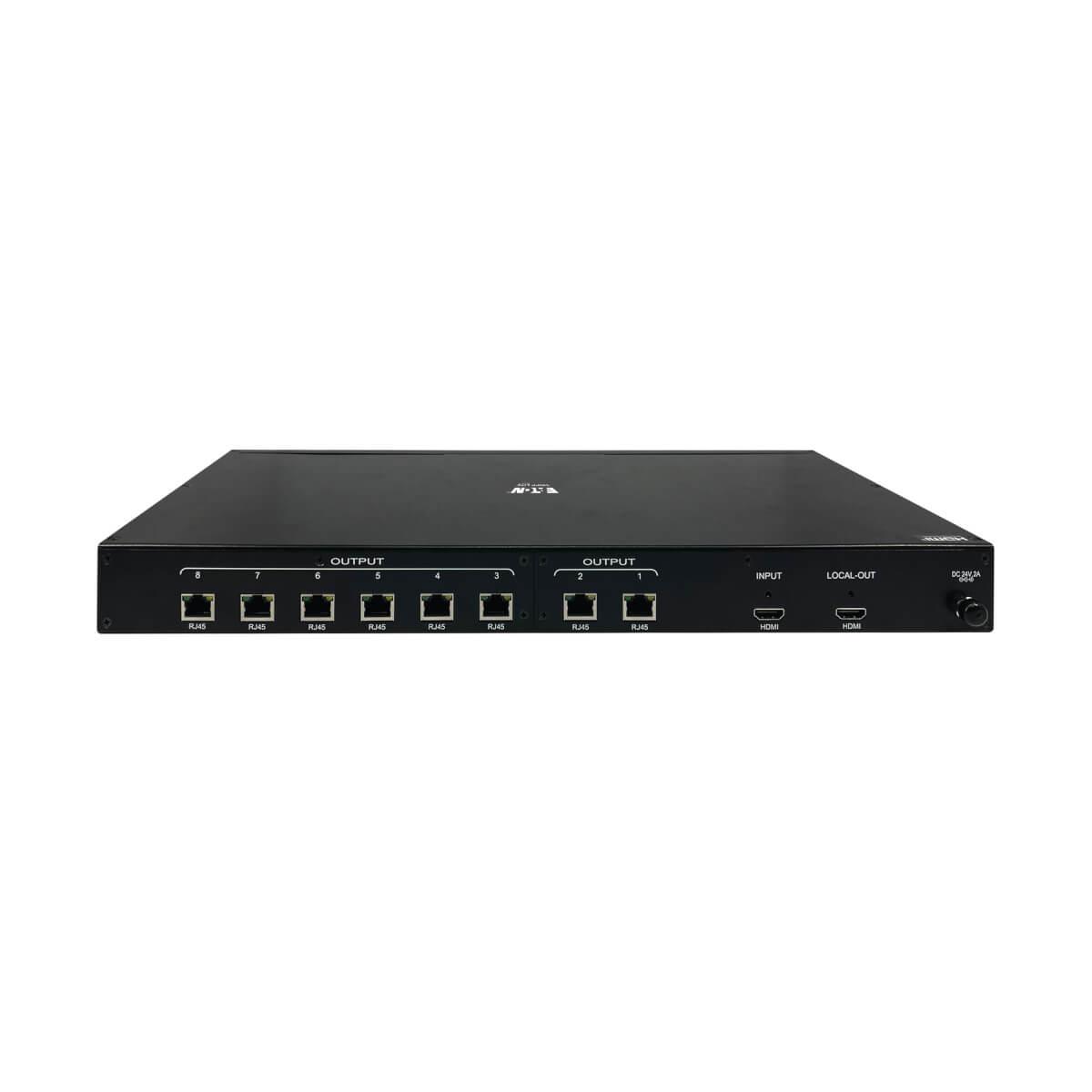

The B127A-008-BH connects to B127A-Series receivers to extend 4K signals from an HDMI source to eight HDMI displays up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding B127A-010-H signal repeaters or B127A-110-BH transceivers (each sold separately) to the application, you can extend the signal to each connected display up to 400 feet (121.9 meters) or 460 feet (140.2 meters), respectively.
Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-008-BH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with true uncompressed 7.1-channel digital audio and Dolby TrueHD. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This splitter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 4K/60 Hz HDTV in one room, but want to also connect your Blu-ray player or satellite box to an older 1080p TV in another room. The B127A-008-BH is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching, allowing each connected monitor to display video at its maximum resolution.
Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the splitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.
Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks

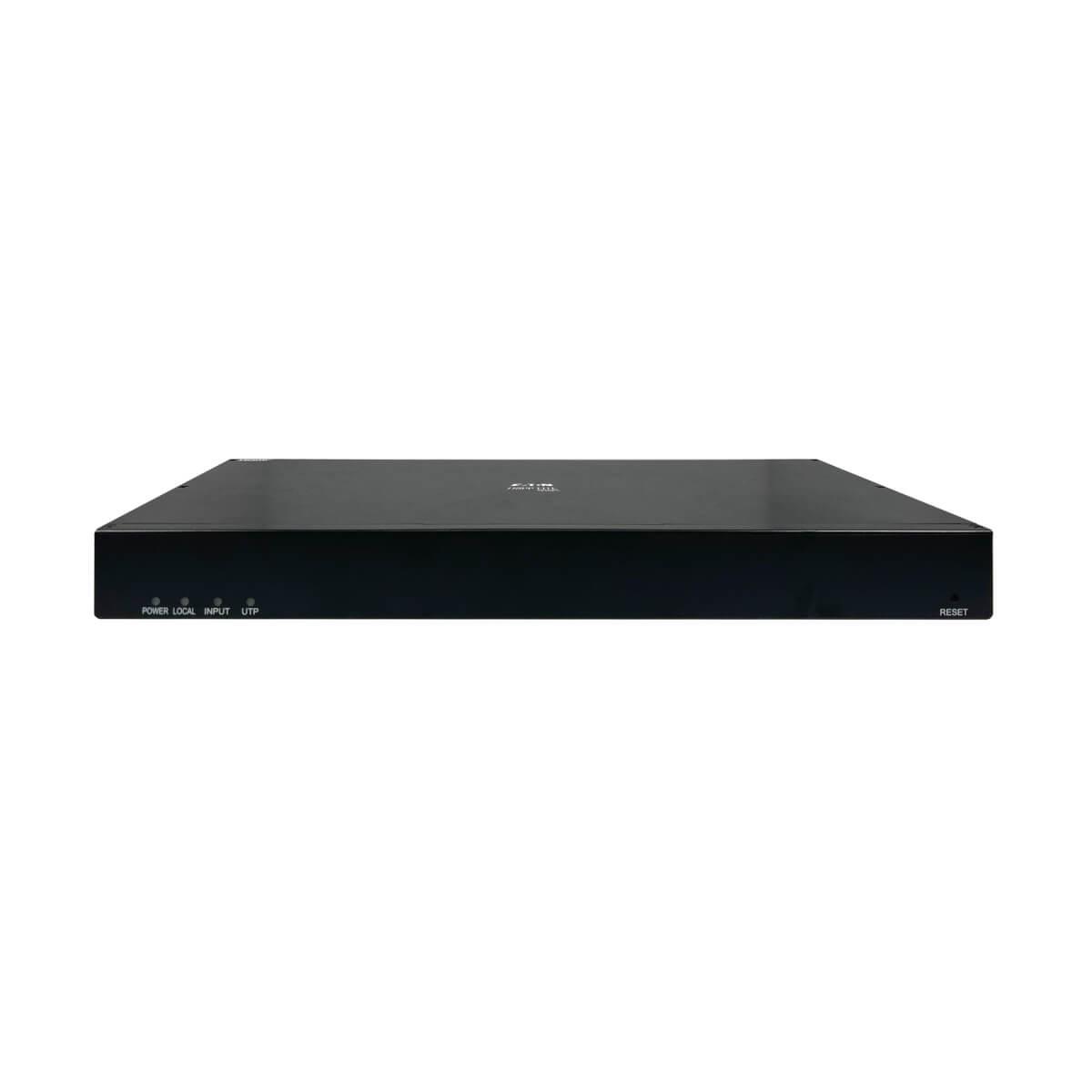

Power over Cable (PoC) technology powers the connected receivers over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers where needed without worrying about finding a nearby AC outlet.
Plug-and-Play Operation for Quick Setup and Immediate Use

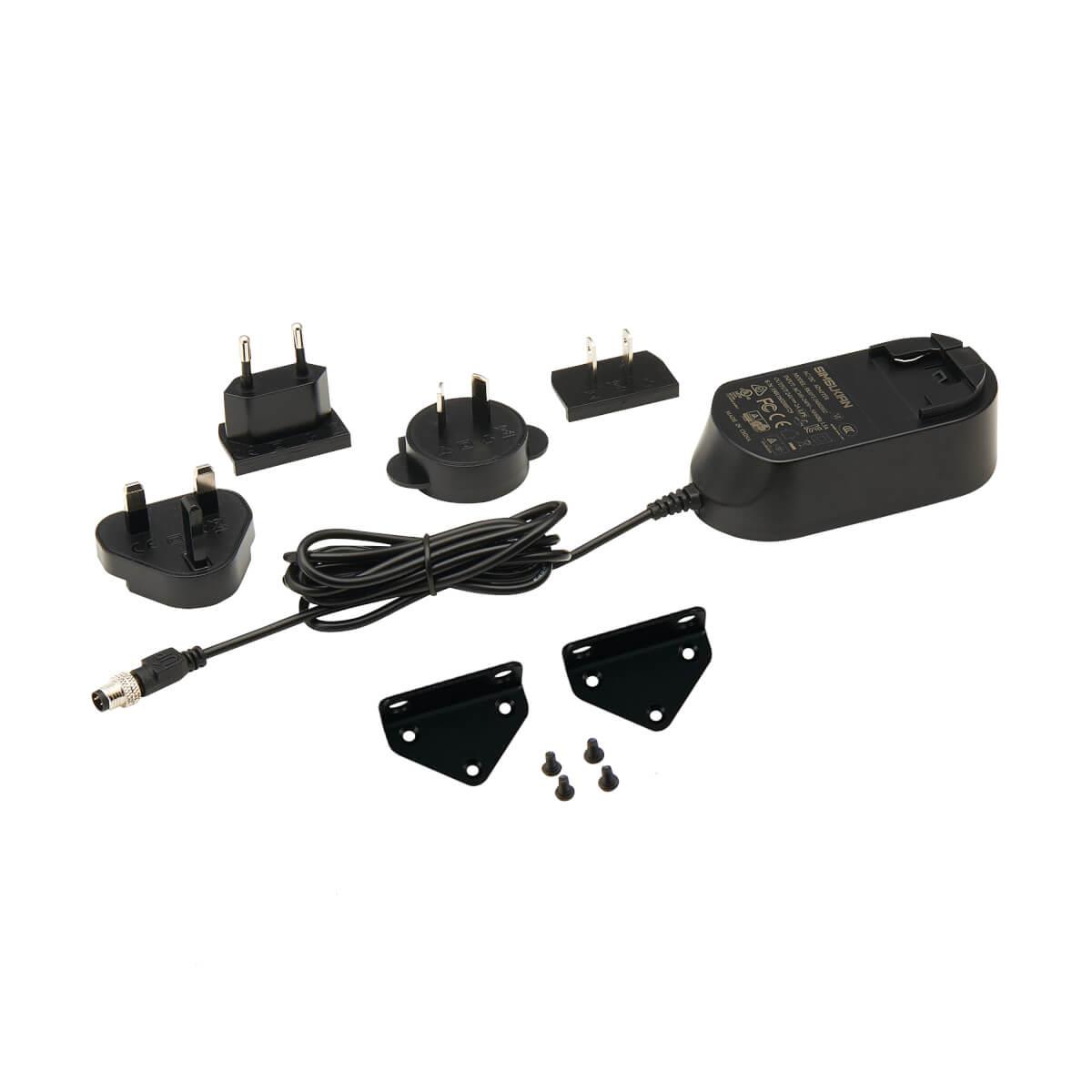

The splitter works right out of the package with no software required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the splitter to an HDMI source device with a user-supplied HDMI cable (such as P568- or P569-Series). Then, connect the splitter to B127A-Series remote receivers with user-supplied Cat6 cable (such as N202-Series).
TAA-Compliant for GSA Schedule Purchases
The B127A-008-BH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
| Ports & interfaces | |
| Video port type | HDMI |
| Video out | 8x RJ-45 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 8 |
| Video ports quantity | 8 |
| Consumer Electronics Control (CEC) support | Yes |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Maximum operating distance | 70.1 m |
| Colour depth | 36 bit |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| Rack mounting | Yes |
| Cable length | 1.5 m |
| HDCP | Yes |
| Plug and Play | Yes |
| LED indicators | Yes |
| Certification | CCC; CE; FCC; GS; TUV; UL; cUL, UL Listed; cUL Listed, RoHS; CE (Europe); REACH; FCC (USA) |
| Network | |
| Cable types supported | Cat6 |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 24 V |
| Output current | 2 A |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 181 mm |
| Height | 44 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 290.1 mm |
| Package depth | 164.1 mm |
| Package height | 55.1 mm |
| Package weight | 2.6 kg |
| Package type | Box |
| Packaging content | |
| Manual | Yes |
| Cables included | DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 50 øC |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | UL ECOLOGO |
| Technical details | |
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE |
| Logistics data | |
| Harmonized System (HS) code | 8525.50.3035 |
| Master (outer) case width | 517.9 mm |
| Master (outer) case length | 310.9 mm |
| Master (outer) case height | 178.1 mm |
| Master (outer) case gross weight | 3.6 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | Taiwan |
| Warranty | |
| Base Warranty | Non Non |
