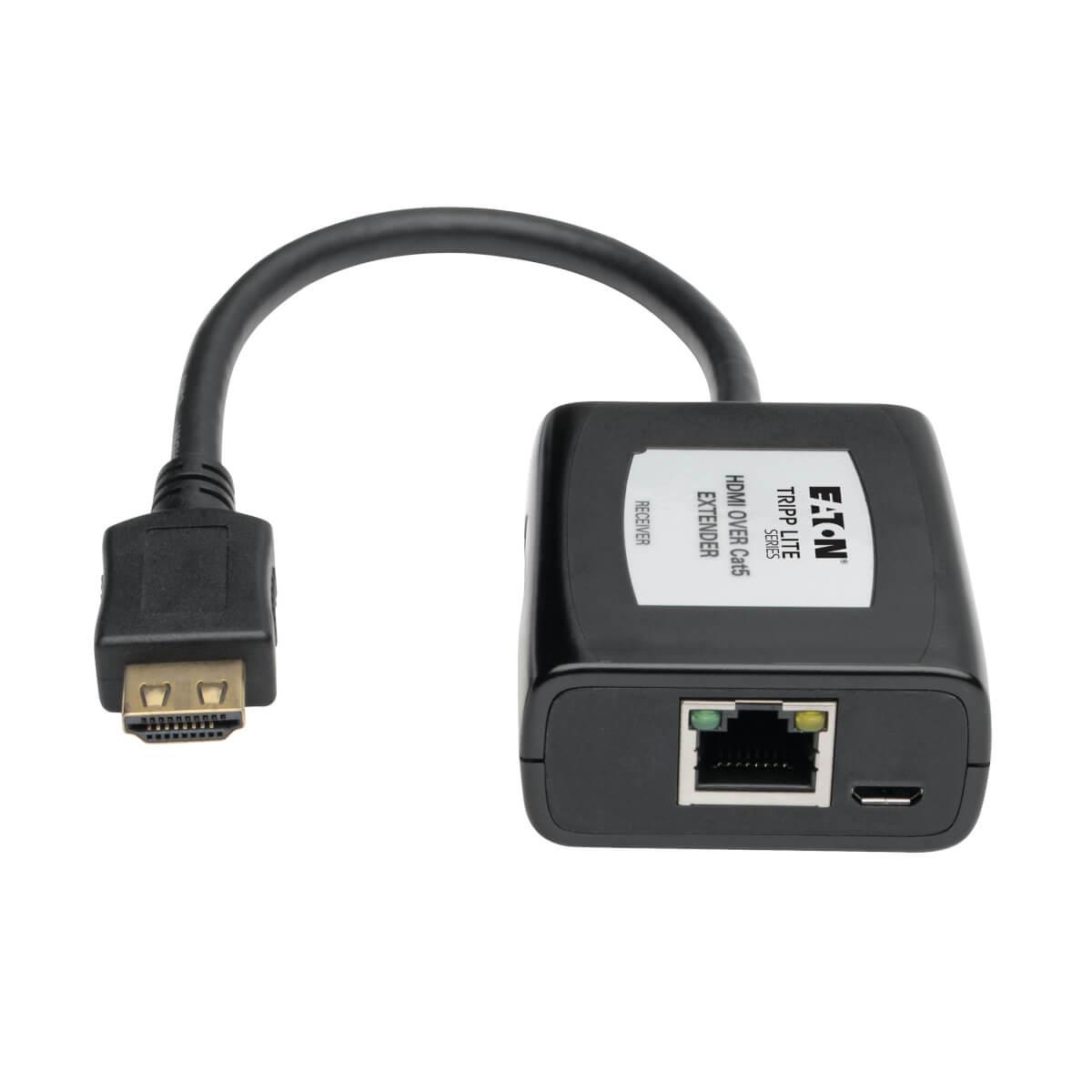

The B126-1A0-U HDMI over Cat5/Cat6 Active Extender works with a B126-002 or B126-004 transmitter (sold separately) to extend an HDMI audio/video signal to an HDMI projector, monitor or television. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow. A latching HDMI connector on the built-in cable provides a more secure connection

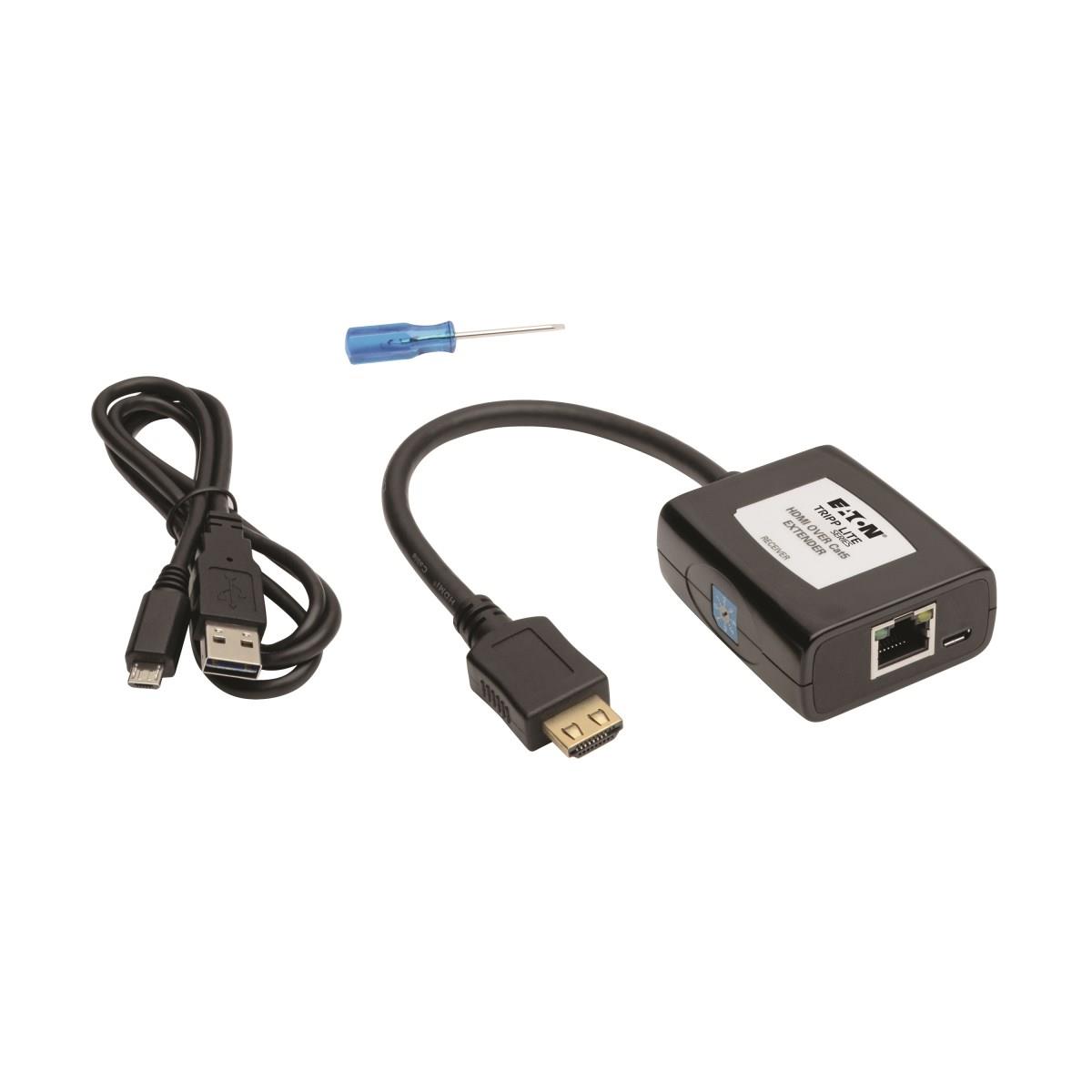

The receiver's built-in HDMI cable connects to the display. Cat5e/6 cable connects the receiver to the B126-Series transmitter (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as the N202-Series). Power is supplied by the included USB Micro-B to USB-A cable, which connects between the receiver and a USB port on the display or a USB wall charger.

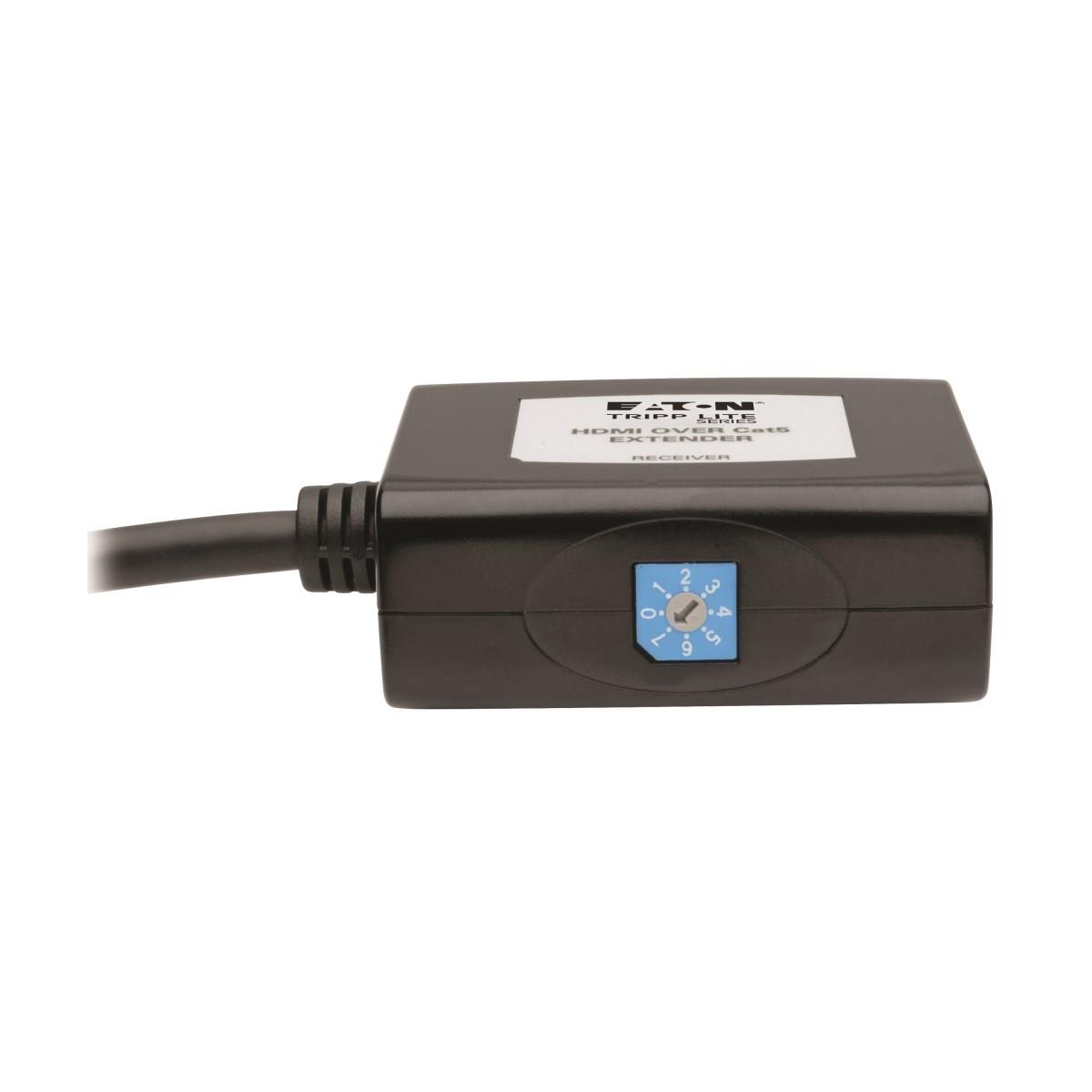

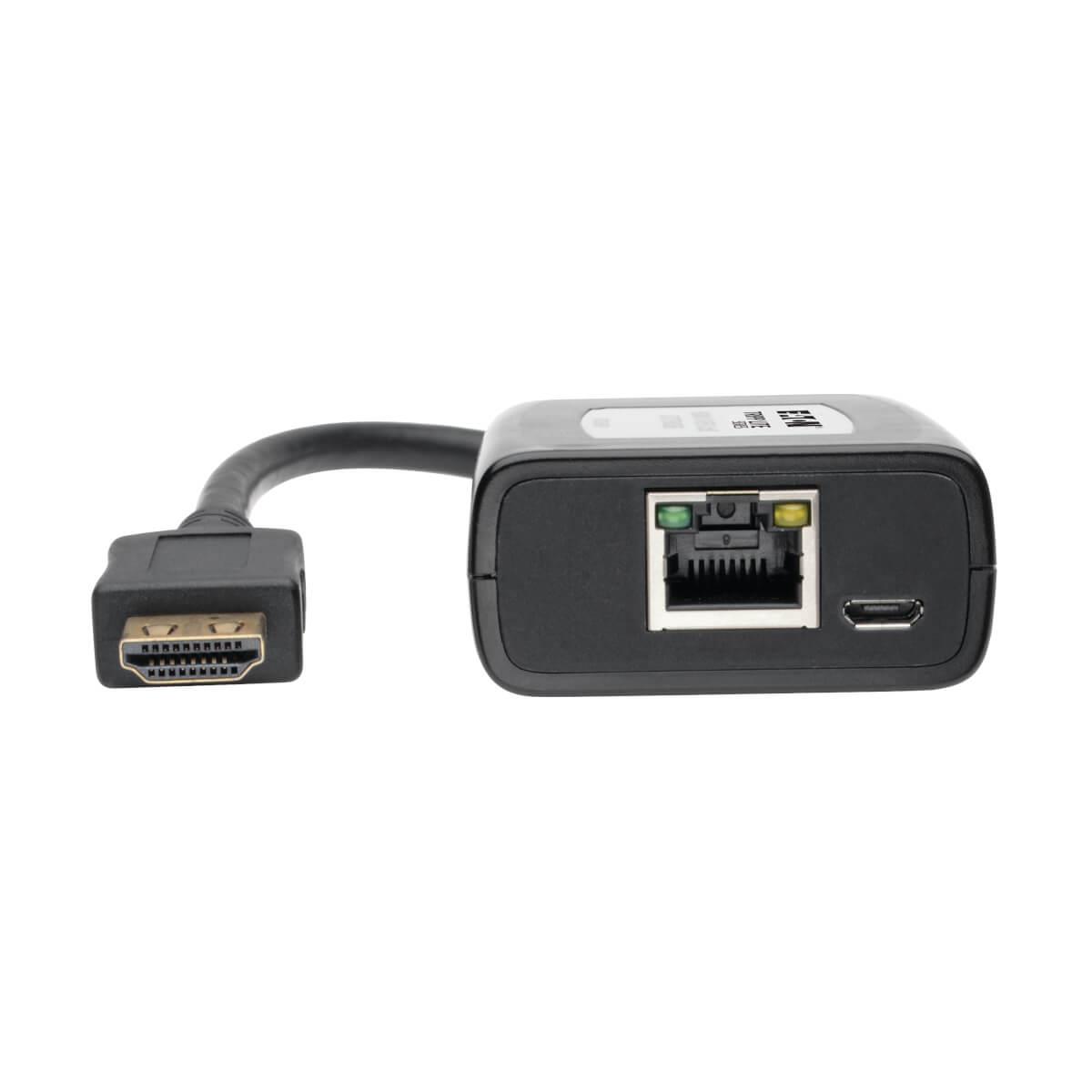

The B126-1A0-U can extend a 1080p (@ 60 Hz) signal up to 125 feet (38.1 meters) with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at the display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.
| Features | |
| Type | AV receiver |
| Maximum resolution | 1600 x 1200 pixels |
| Cable types supported | Cat5e, Cat6 |
| LED indicators | Yes |
| Supported video modes | 480i, 480p, 720p, 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA) |
| HDCP | Yes |
| Plug and Play | Yes |
| Product colour | Black |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| USB ports quantity | 1 |
| USB connector type | Micro-USB B |
| Packaging data | |
| Package width | 132.1 mm |
| Package depth | 152.4 mm |
| Package height | 33 mm |
| Package weight | 230 g |
| Packaging content | |
| Cables included | USB |
| Manual | Yes |
| Technical details | |
| Country of origin | Taiwan |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 162.6 mm |
| Master (outer) case length | 337.8 mm |
| Master (outer) case height | 139.7 mm |
| Master (outer) case gross weight | 1.5 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332190250 |
| Warranty | |
| Base Warranty | Non Non |
