A/v Module For Conference Table Connectivity Box With Hdmi Over Cat5/CAT6
ITCurry #: 75648030 | Article #: MOD4AVHD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Boardroom and Huddle Space Connectivity | 4K | HDMI, DP, VGA | Table-Mounting Bracket Included
Add convenient A/V connectivity and network access to your boardroom, classroom or huddle space. This audio/video module makes it easy to connect HDMI, DisplayPort and VGA laptops to your room’s HDMI display.
Conveniently Connect to a Display?
Modern office environments?need to support technology more than ever, to keep laptops, phones and tablets connected.?During?meetings, lectures and conferences, you may need?to present content from your laptop to a display or projector.?
This?A/V module simplifies connectivity and collaboration with automatic switching and conversion. It lets you connect your HDMI, DP or VGA laptop to a shared HDMI display or projector, without the hassle of menu and input selections. And, the module automatically switches to the most recently connected or powered-on laptop. Installing the module is easy, requiring just a single HDMI cable between the module and the display.
Customize to Your Exact Needs?
Architectural connectivity is?quickly becoming the trend when designing a boardroom or huddle space.?StarTech.com A/V modules let you:?
Customize?A/V connectivity?according to the specific needs of your space?
Install?in easy to access locations?

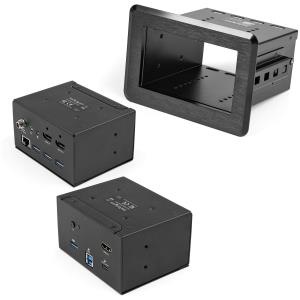

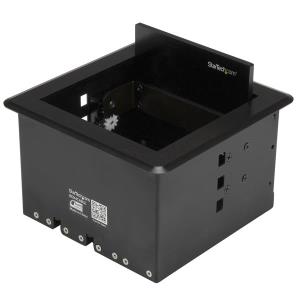

You can install this?A/V?module?as?a?standalone solution?using the supplied table-mounting bracket. Or,?you?can?install?it?as an accessory in a StarTech.com single-module (BEZ4MOD) or dual-module (BOX4MODULE) conference room table connectivity box (each sold separately).
MOD4AVHD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Simplify audio/video connectivity in your boardroom, classroom or huddle space
- Add support for HDMI, DisplayPort and VGA laptops and resolutions up to 4K 30Hz
- A/V module automatically outputs the most recently connected or powered-on laptop
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Supported aspect ratios | 16:9 |
| Network | |
| Ethernet LAN | Yes |
| Features | |
| Product colour | Black |
| LED indicators | Power |
| Chipset | Parade - PS176, Chrontel - CH7035, Explore Micro - EP9442U, TI - TS3DV642 |
| Certification | CE, FCC, REACH |
| Ports & interfaces | |
| HDMI version | 1.4 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 2 |
| VGA (D-Sub) input ports | 2 |
| Audio input | 2 x 3.5 mm |
| Audio output | 1 x 3.5 mm |
| Ethernet LAN (RJ-45) ports | 2 |
| USB pass-through | No |
| Power | |
| Power consumption (typical) | 10 W |
| Input current | 0.4 A |
| External power supply | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 110 mm |
| Height | 60 mm |
| Weight | 200 g |
| Package width | 100 mm |
| Package depth | 250 mm |
| Package height | 210 mm |
| Package weight | 200 g |
| Packaging content | |
| AC adapter included | Yes |
| Screws included | Yes |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
| Warranty | |
| Base Warranty | Non Non |
