TRIPP LITE 8.3/125 Fiber Breakout Cassette w/Built-In MTP Cables (x3) Singlemode MTP/MPO to (x12) LC Duplex
ITCurry #: 57905366 | Article #: N482-3M8L12S-B-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

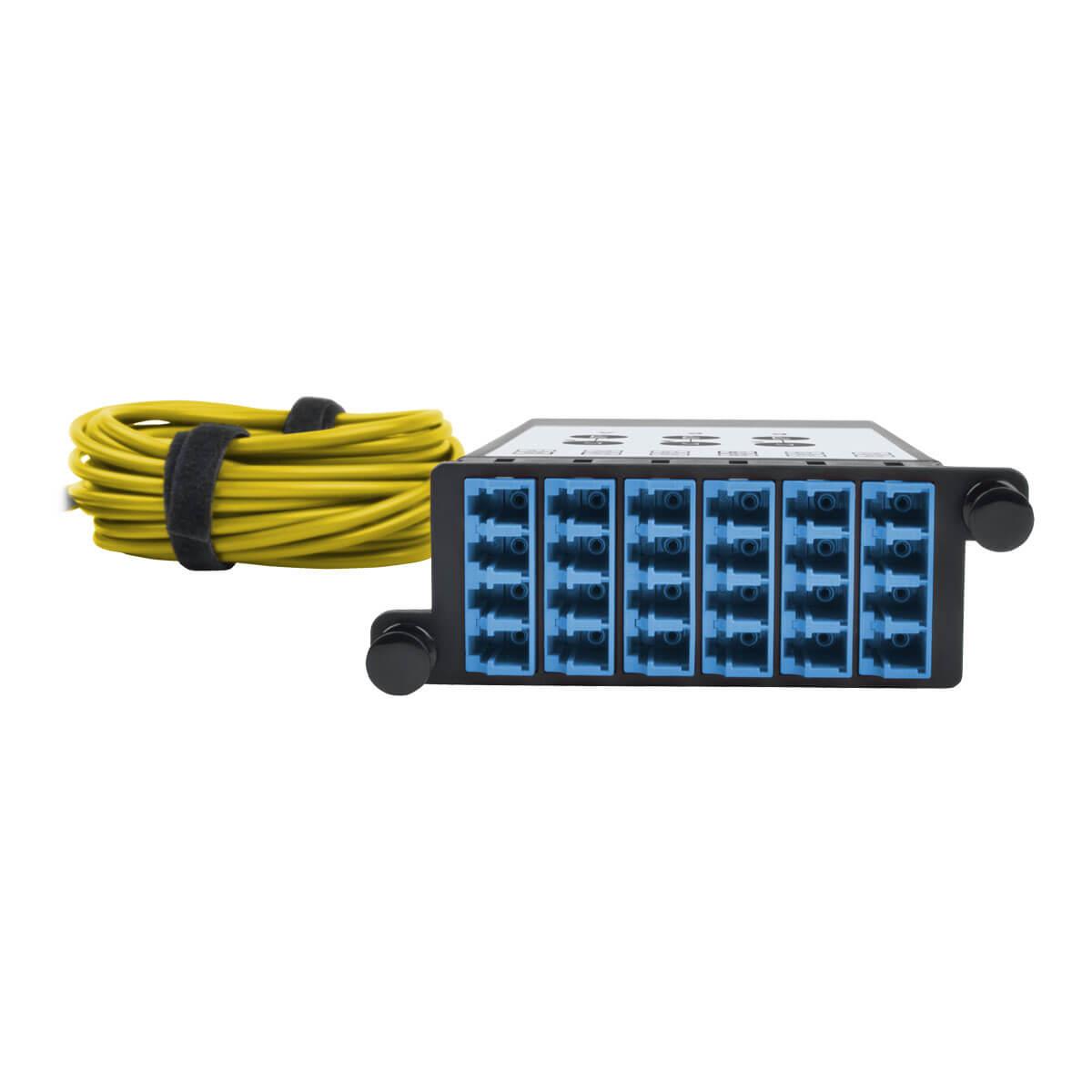

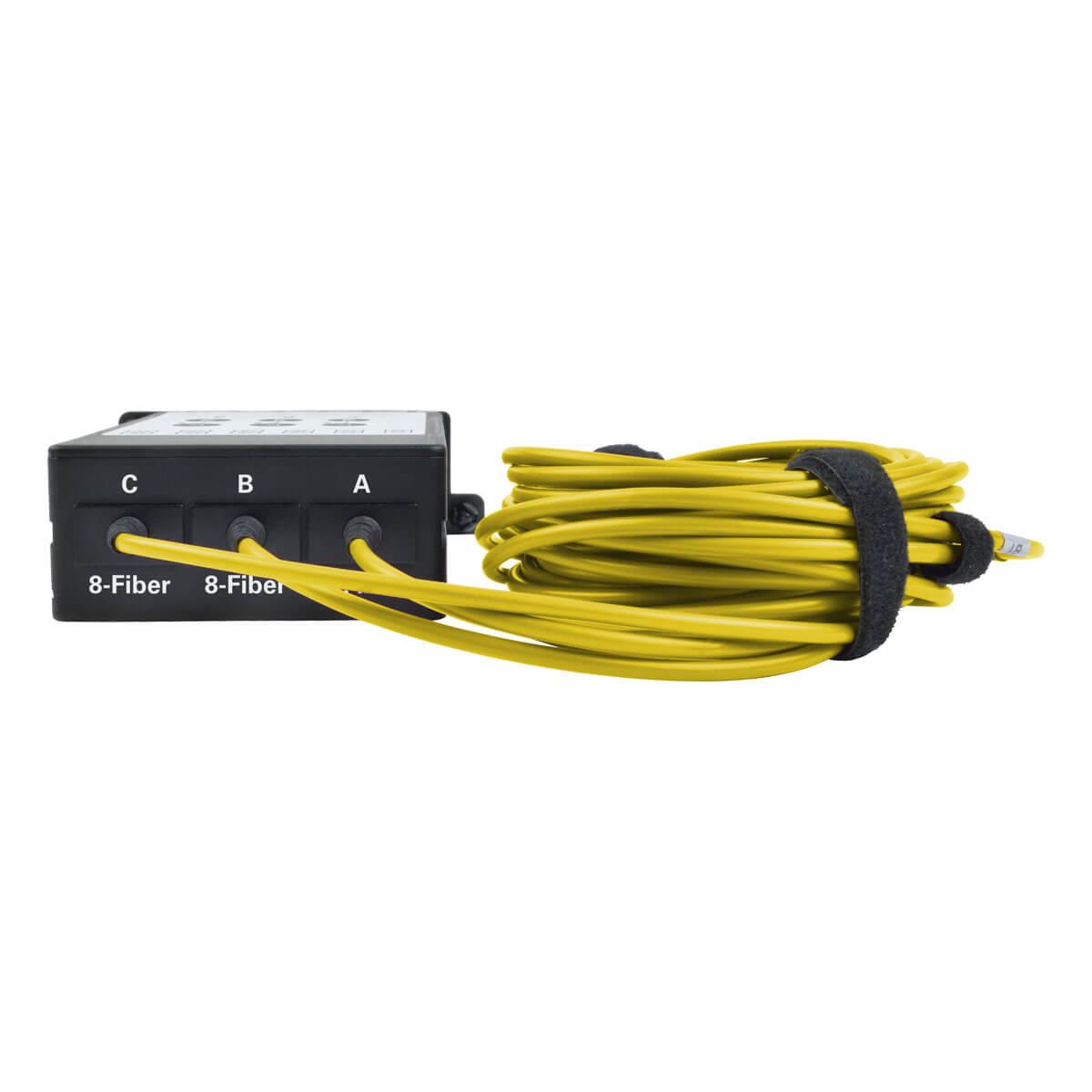

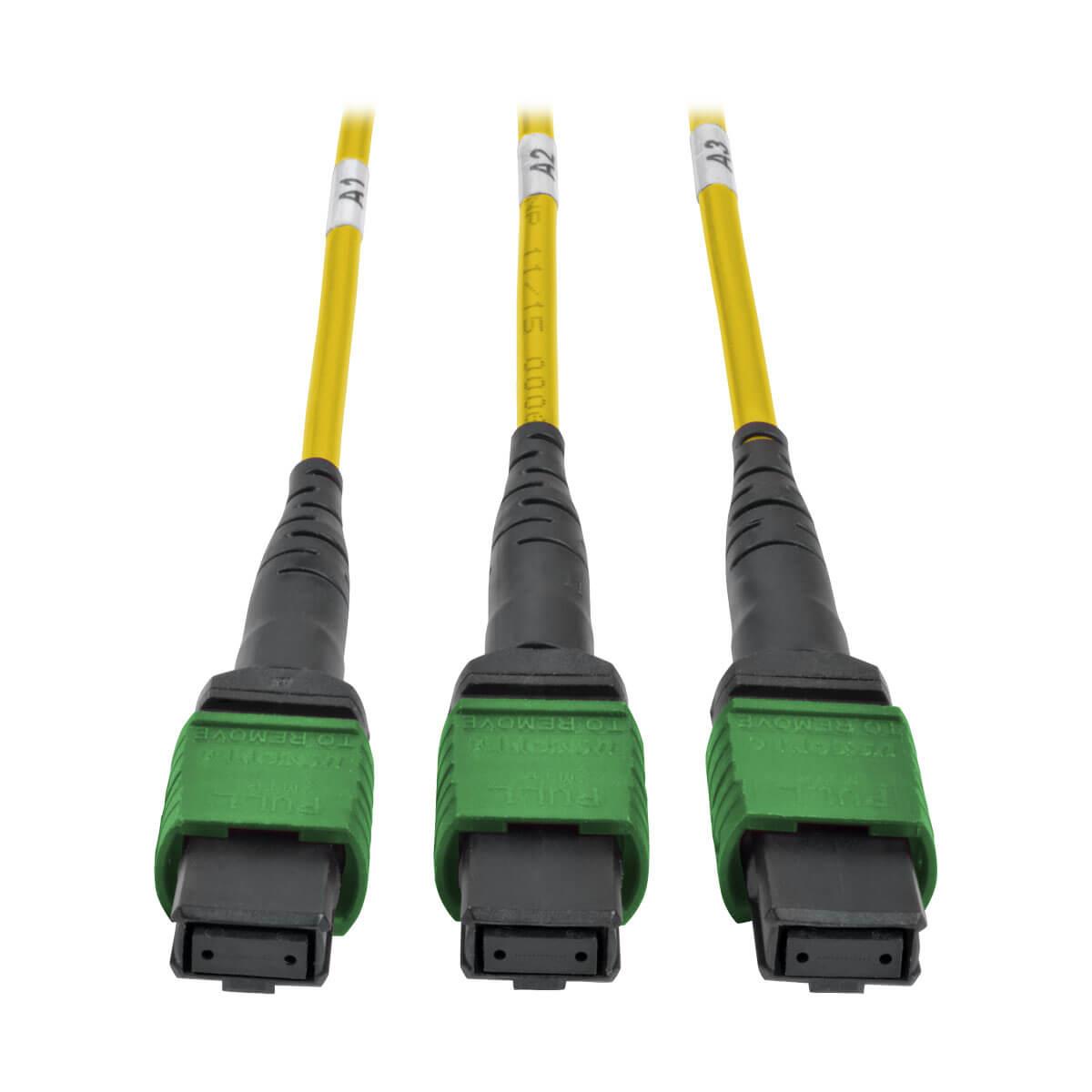

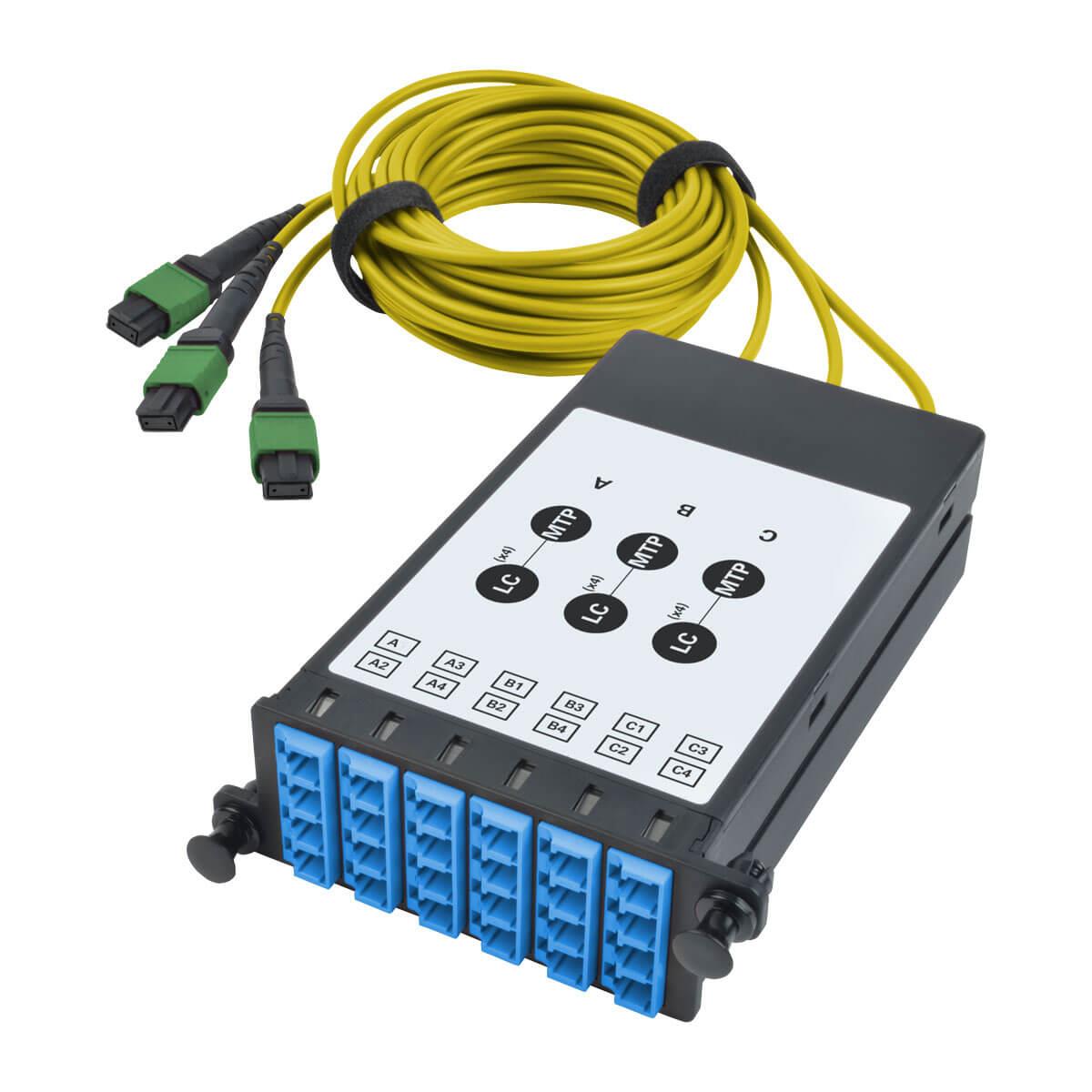

The N482-3M8L12S-B 9/125 Fiber Breakout Cassette works in tandem with a N482-01U or N482-02U chassis (sold separately) to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. The cassette features three built-in 2-meter 8-fiber MTP cables. Color-coded yellow singlemode cables are easily distinguished from traditional aqua OM3 multimode fiber.
The cassette’s modular design installs easily in the N482-01U and N482-02U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC Ethernet cables, such as N370-Series cables (sold separately), into the cassette. Up to five N482-3M8L12S-B cassettes fit in the N482-01U 1U enclosure panel, and up to 14 cassettes fit in the N482-02U 2U sleeve. Dust tabs protect unused ports from potential damage. Guaranteed compatibility when used with recommended cabling, including N370-Series cables.
The N482-3M8L12S-B complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using 9/125 singlemode fiber optic cable. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.
With factory-terminated connectors that reduce time and labor, the N482-3M8L12S-B is made from only the finest materials to ensure fast installations and optimal performance.
| Network | |
| Networking standards | IEEE 802.3ae |
| Ethernet interface type | 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Ports quantity | 12 |
| Connector(s) | LC, MTP |
| Design | |
| Product colour | Yellow, Black, Blue |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Packaging data | |
| Package width | 335.3 mm |
| Package depth | 111.8 mm |
| Package height | 50.8 mm |
| Package weight | 230 g |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85371098 |
| Master (outer) case width | 342.9 mm |
| Master (outer) case length | 269.2 mm |
| Master (outer) case height | 241.3 mm |
| Master (outer) case gross weight | 2.95 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332200867 |
| Warranty | |
| Base Warranty | Non Non |
