TRIPP LITE 40GB to 10GB Breakout Cassette - (x2) 12-Fiber OM4 MTP/MPO to (x12) LC
ITCurry #: 57904132 | Article #: N482-2M12-LC12-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

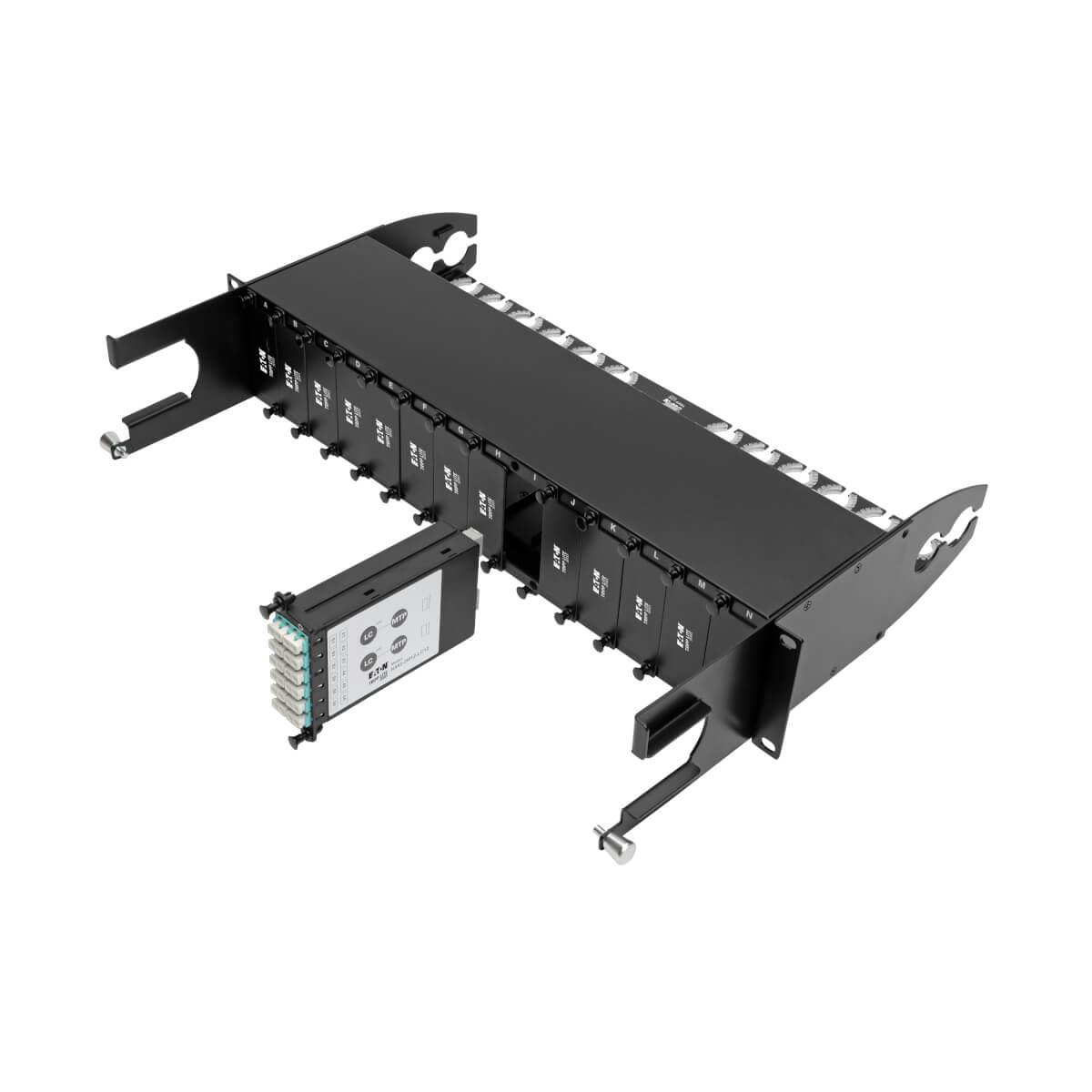

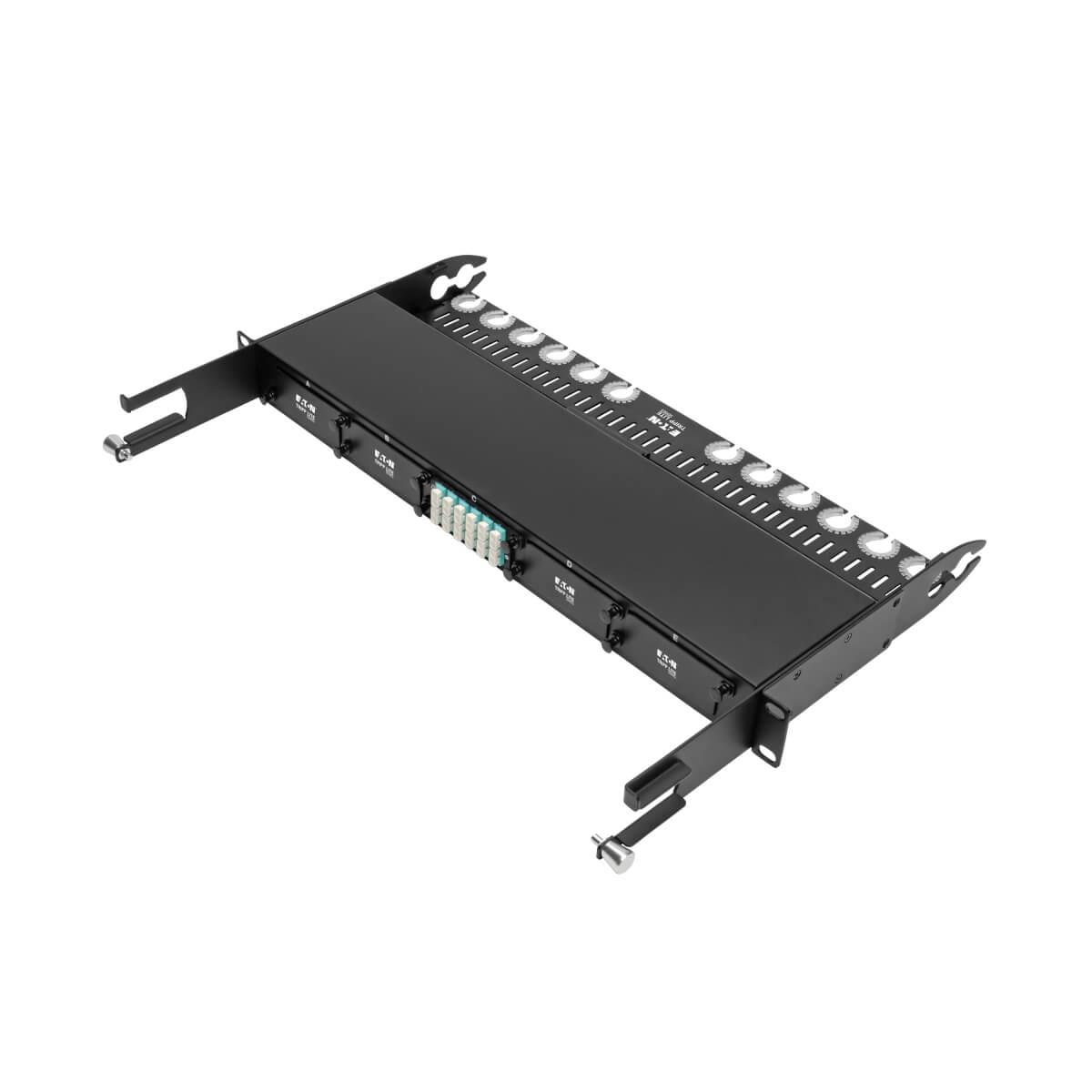

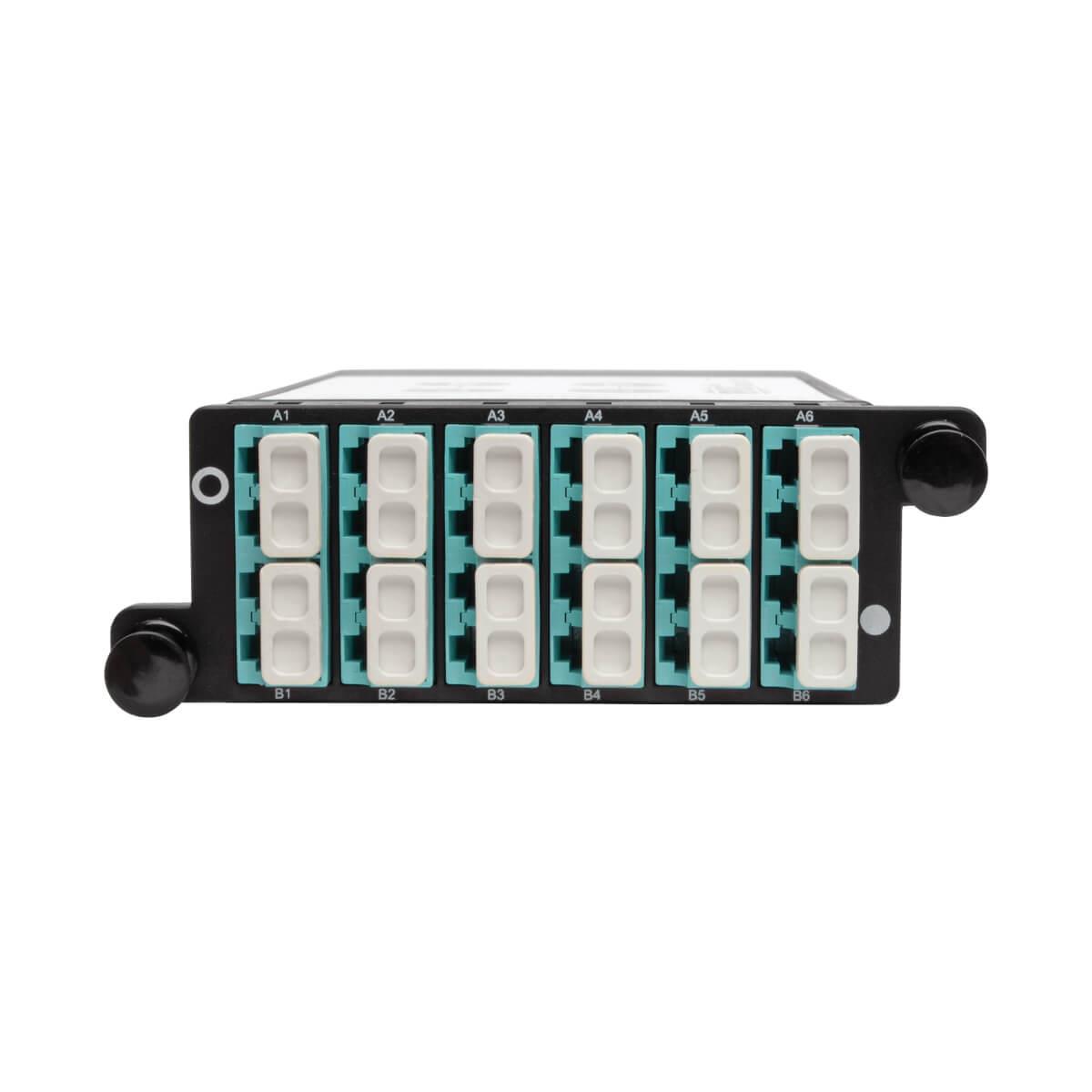

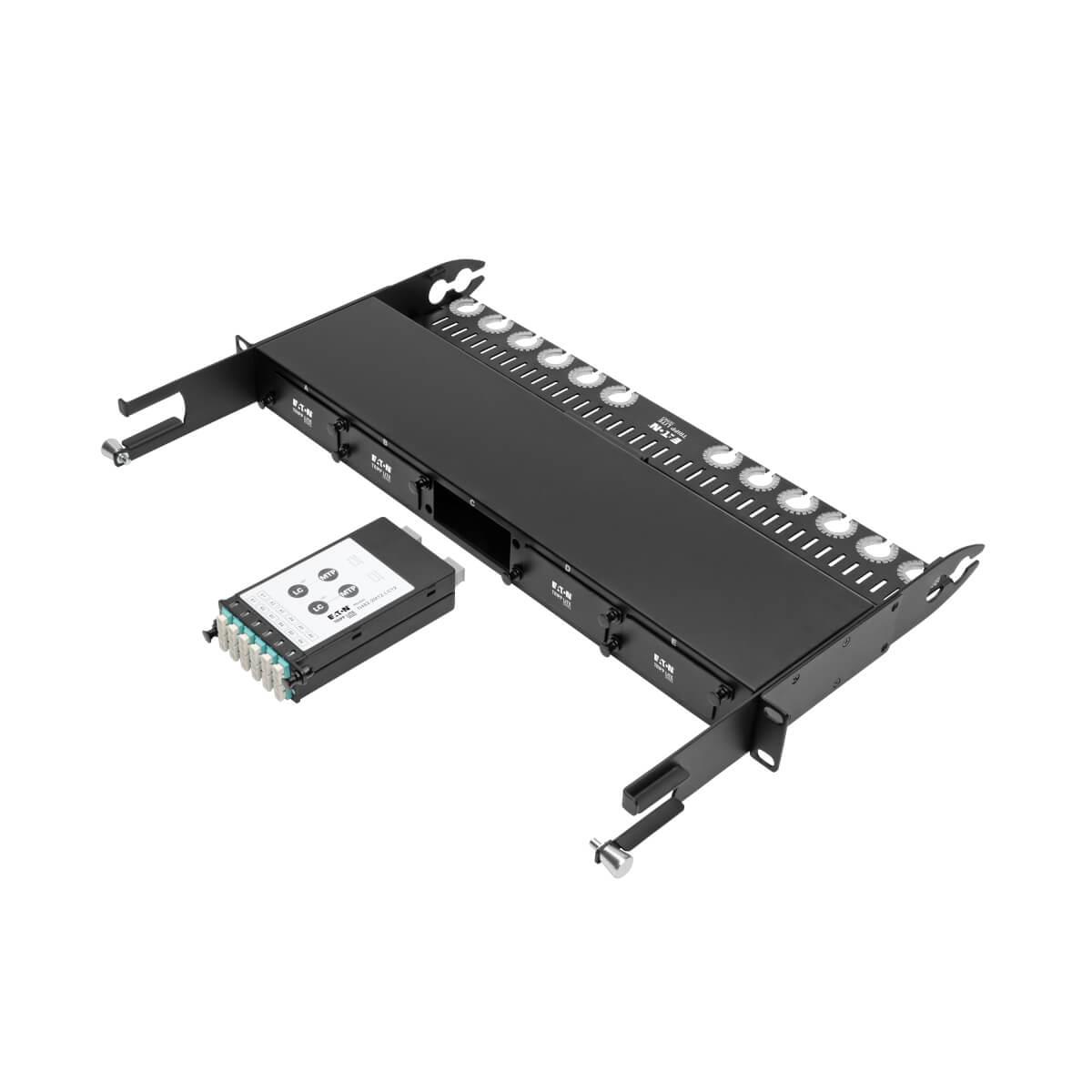

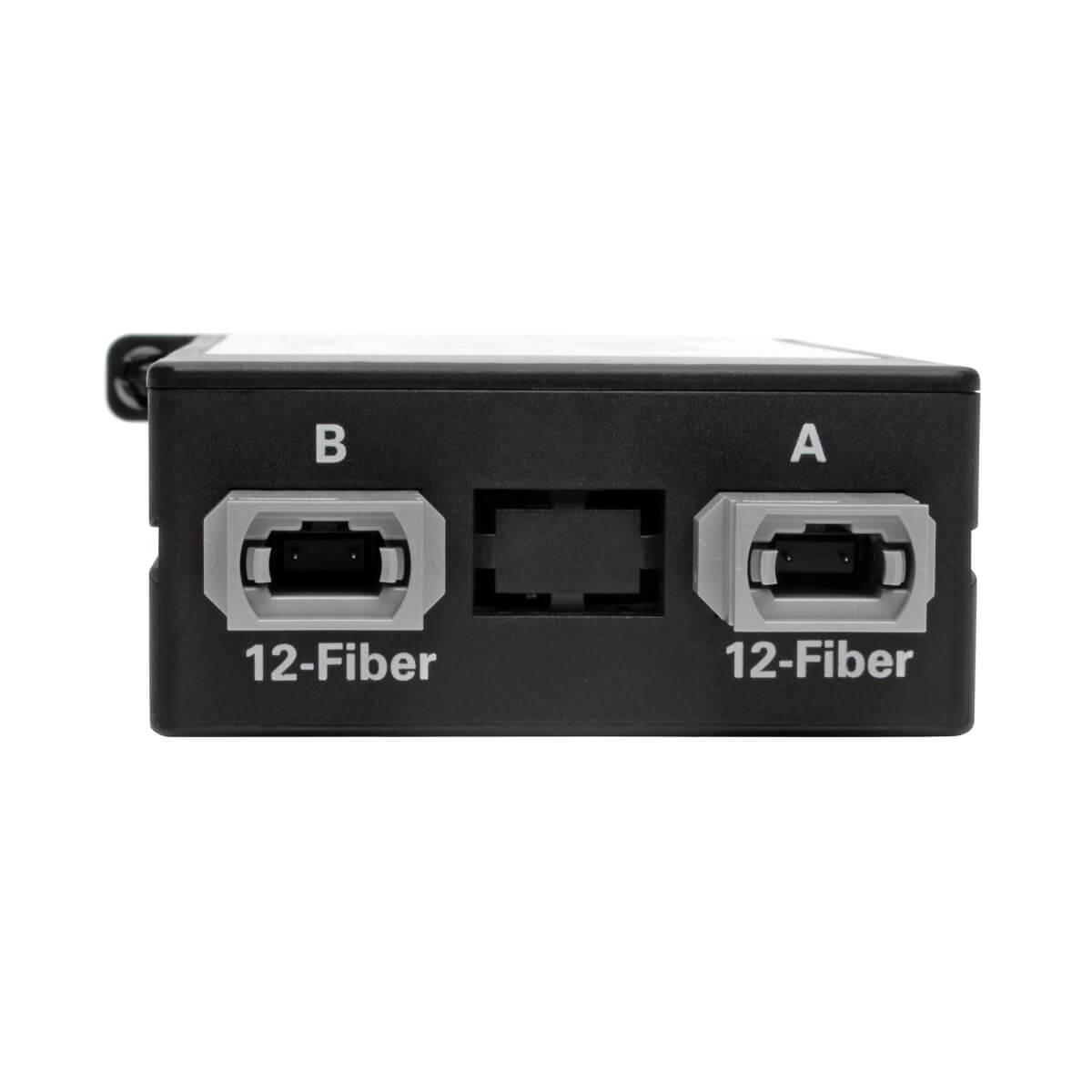

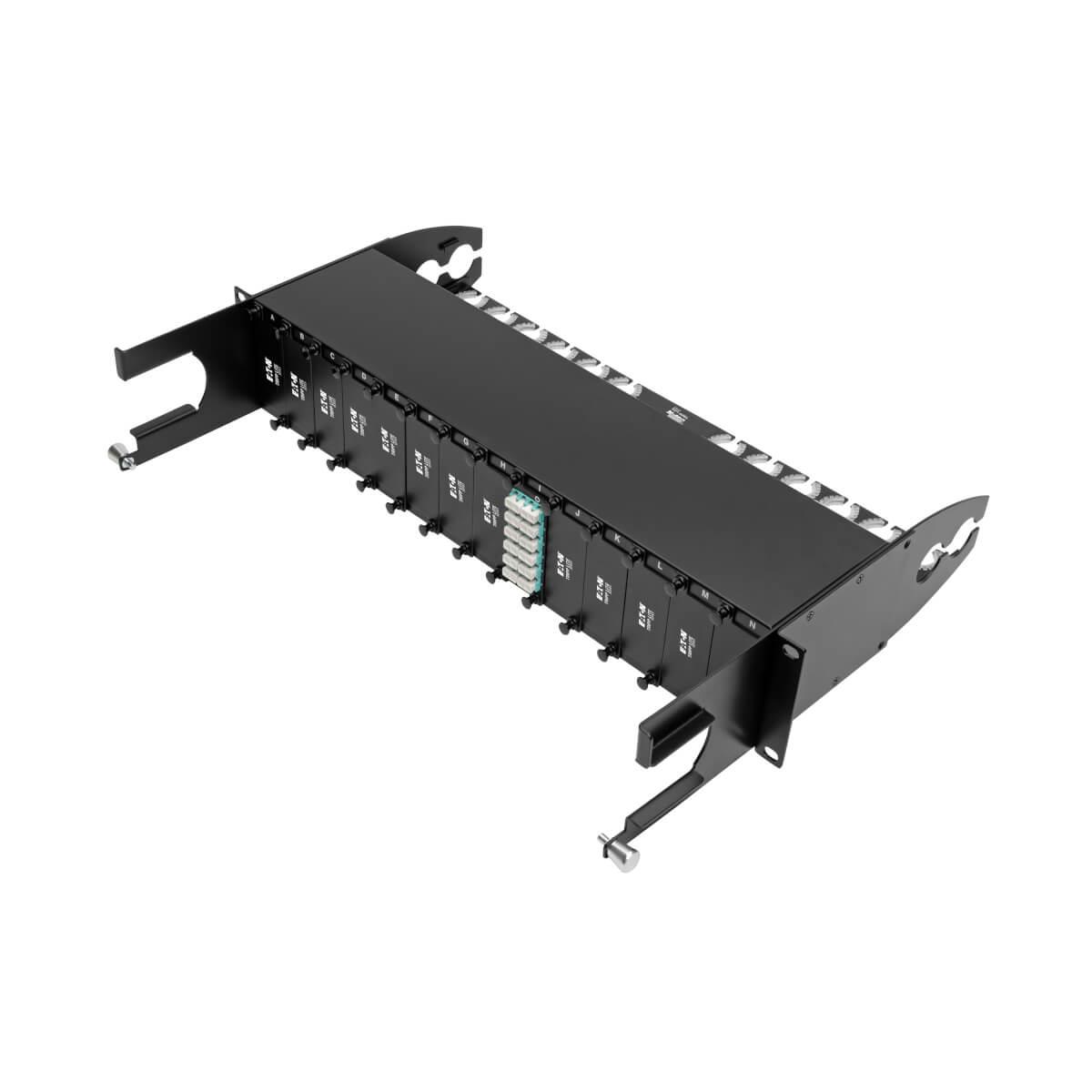

The N482-2M12-LC12 is a high-density 40 Gb to 10 Gb Breakout Cassette with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. For use with N482-01U and N482-02U high-density Fiber Enclosure Panels. Up to five cassettes per N482-01U or up to 14 cassettes per N482-02U. 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended cabling, such as the N820-, N821-, N844- and N845-Series cables. Installation is simple, with the cassette being easily installed or removed using push/pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Complies with IEEE 802.3ae (10Gbe) and ANSI T11.2 (Fibre Channel) requirements, with a maximum insertion loss of 0.35dB falling well under the IEEE 802.3ae maximum channel loss spec of <25dB. Constructed of heavy-duty steel housing.
| Warranty | |
| Base Warranty | Non Non |
| Network | |
| Networking standards | IEEE 802.3ae |
| Ethernet interface type | 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Maximum data transfer rate | 40000 Mbit/s |
| Ports quantity | 12 |
| Connector(s) | LC |
| Design | |
| Product colour | Black |
| Material | Steel |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 88.9 mm |
| Height | 30.5 mm |
| Depth | 119.4 mm |
| Weight | 250 g |
| Packaging data | |
| Package width | 200.7 mm |
| Package depth | 119.4 mm |
| Package height | 50.8 mm |
| Package weight | 330 g |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85371098 |
| Products per pallet | 1 pc(s) |
| Master (outer) case width | 391.2 mm |
| Master (outer) case length | 325.1 mm |
| Master (outer) case height | 325.1 mm |
| Master (outer) case gross weight | 9.3 kg |
| Products per master (outer) case | 27 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332184549 |
