TRIPP LITE 4-Post Shelf Kit for Wallmount Racks 1U
ITCurry #: 57905599 | Article #: 4POSTRAILKITWM
Related products
Product Information

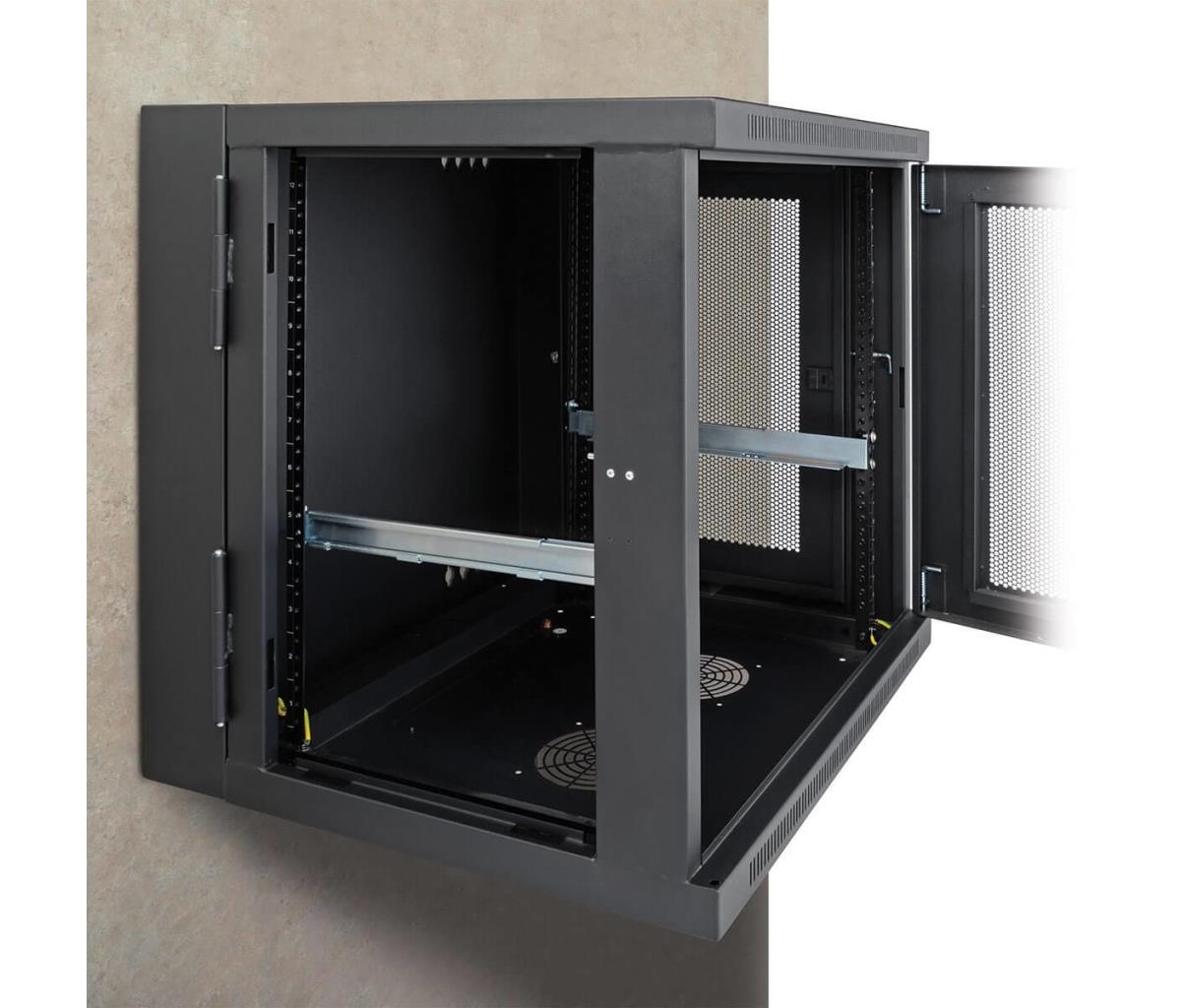

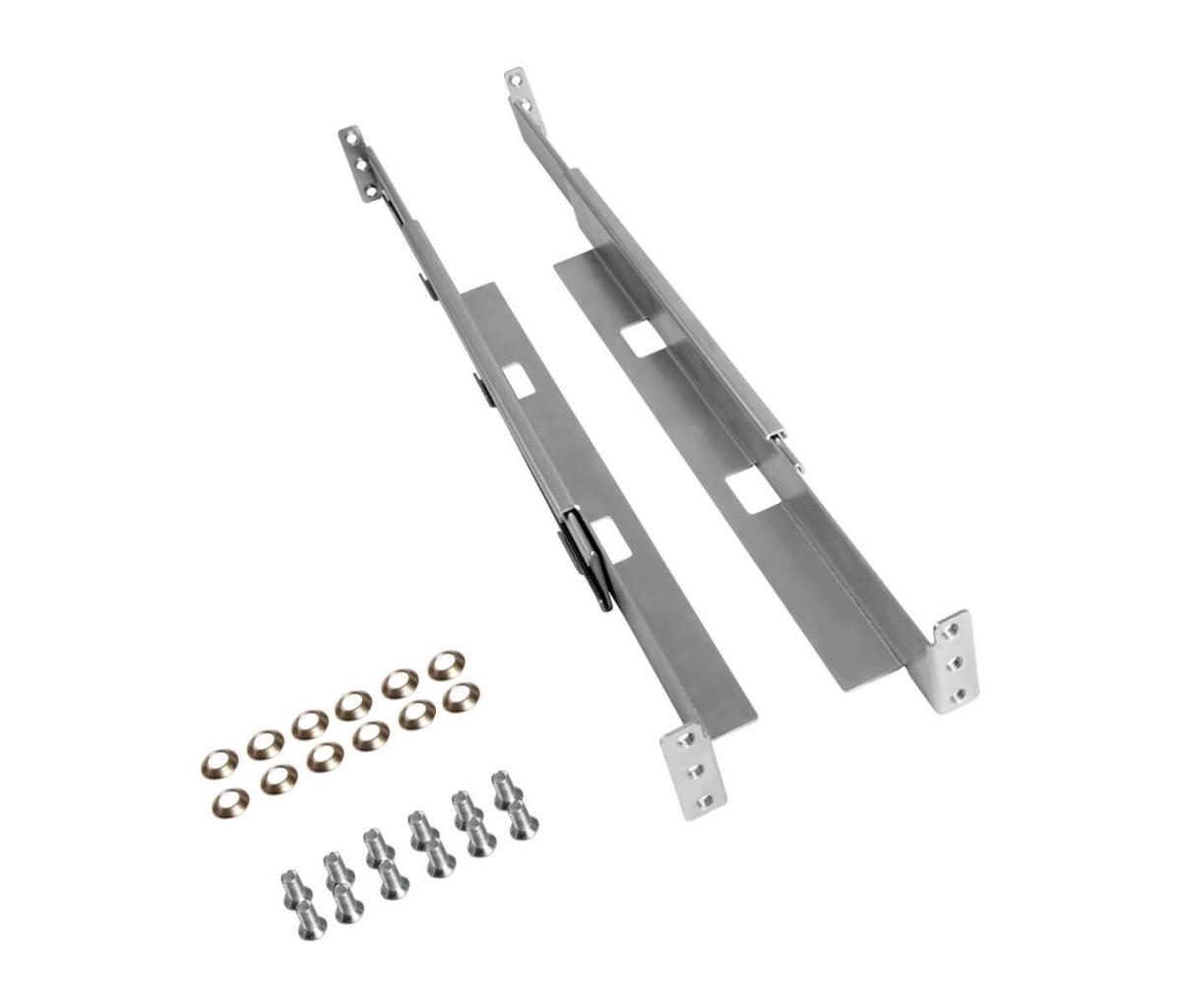

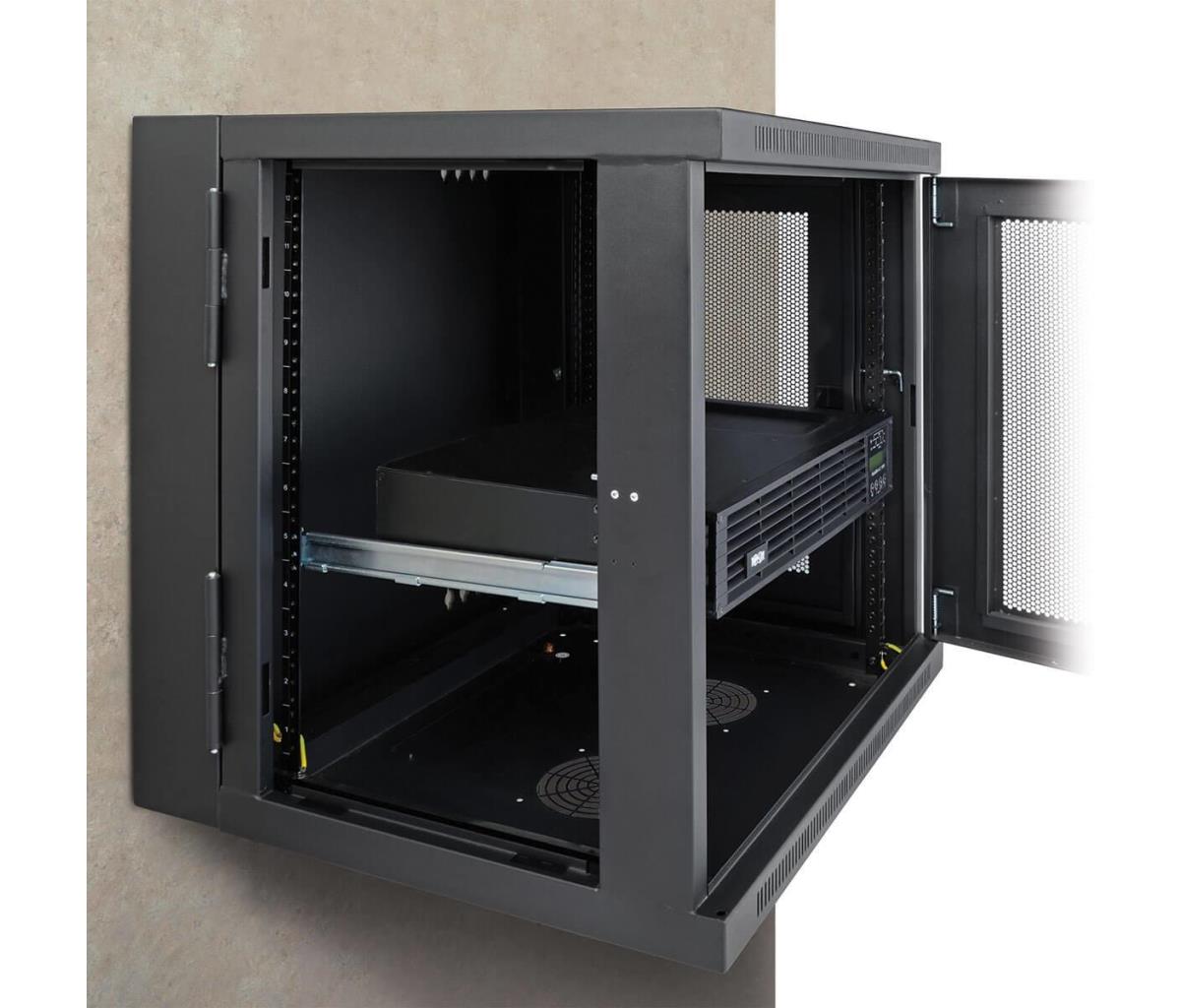

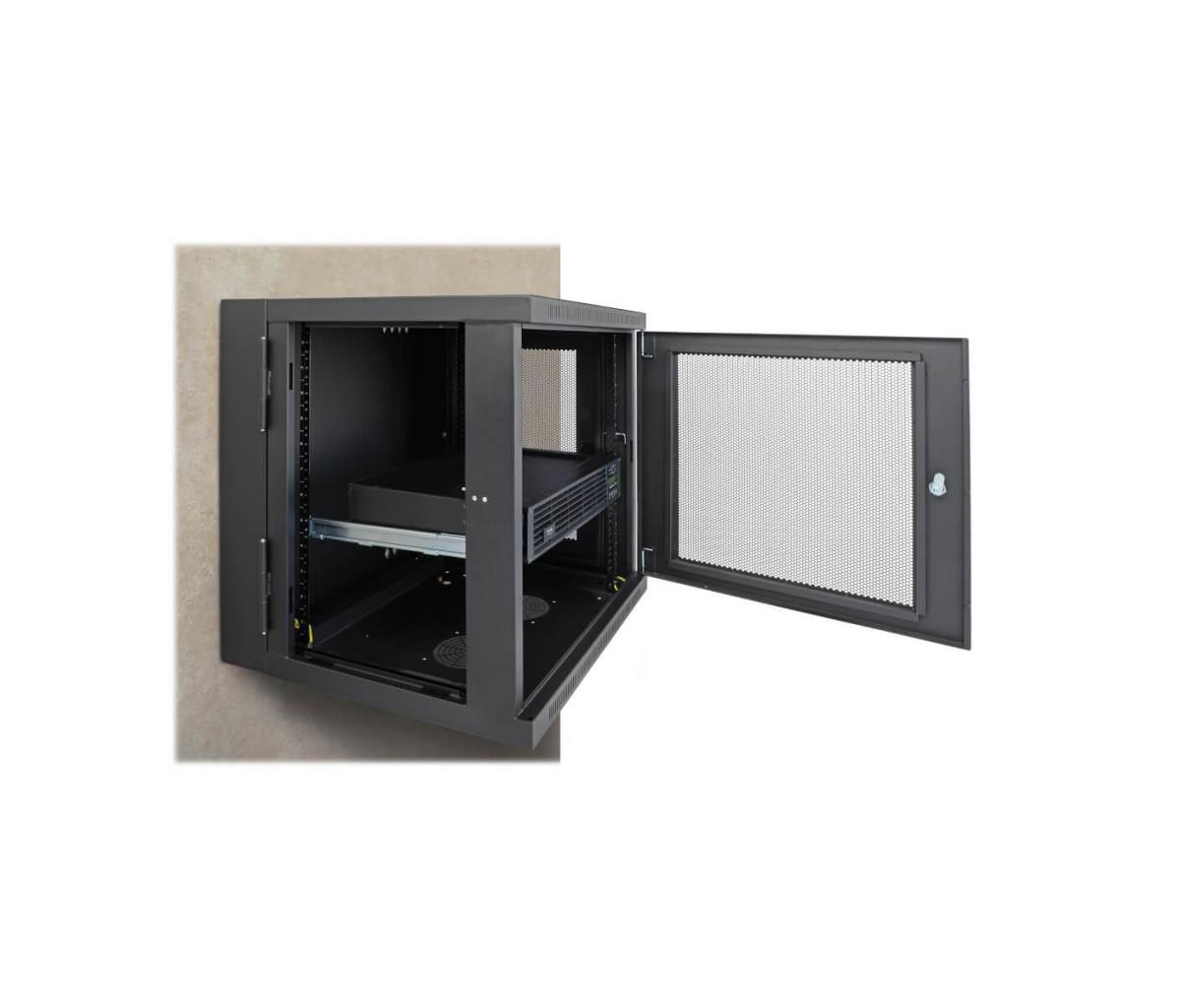

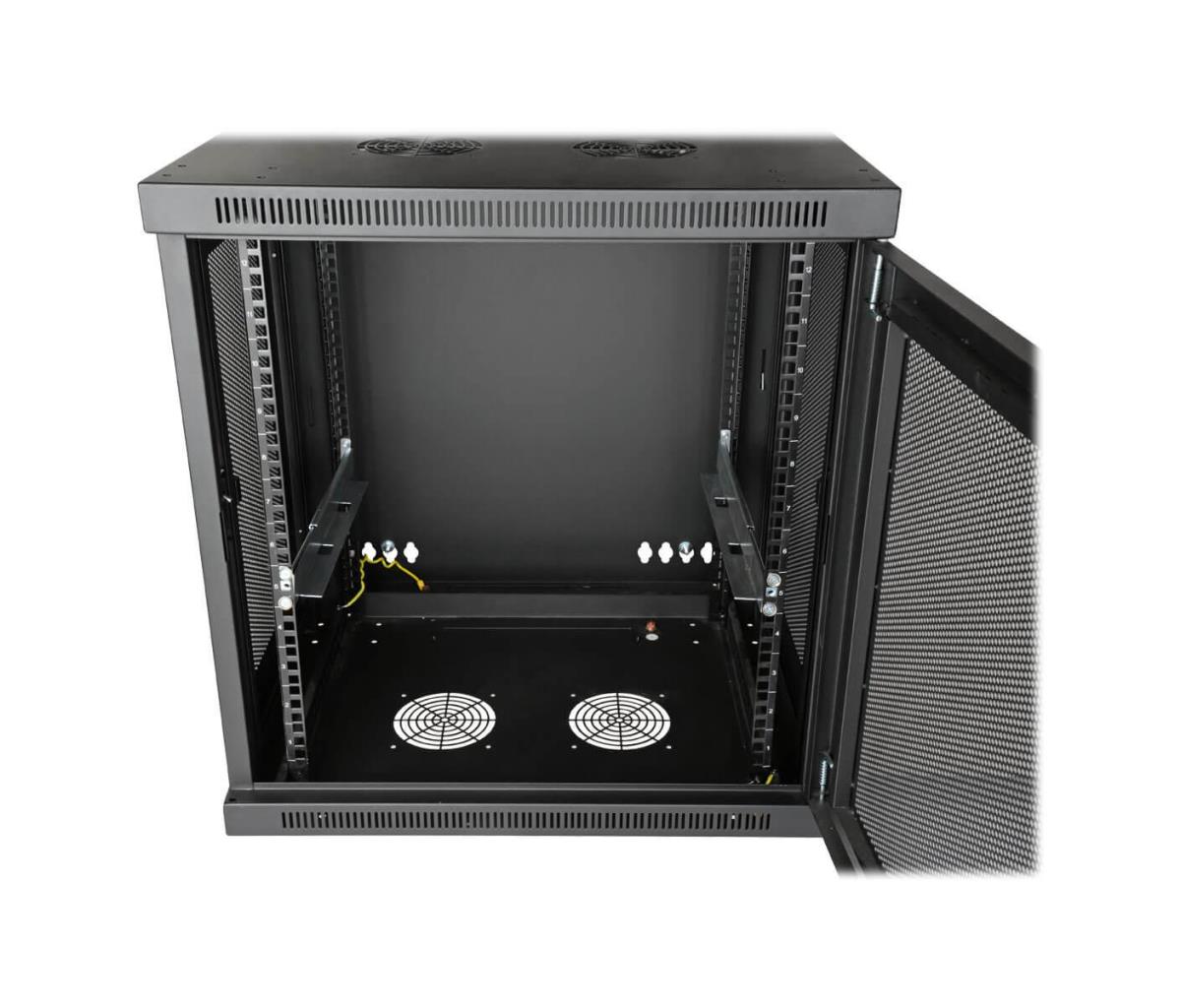

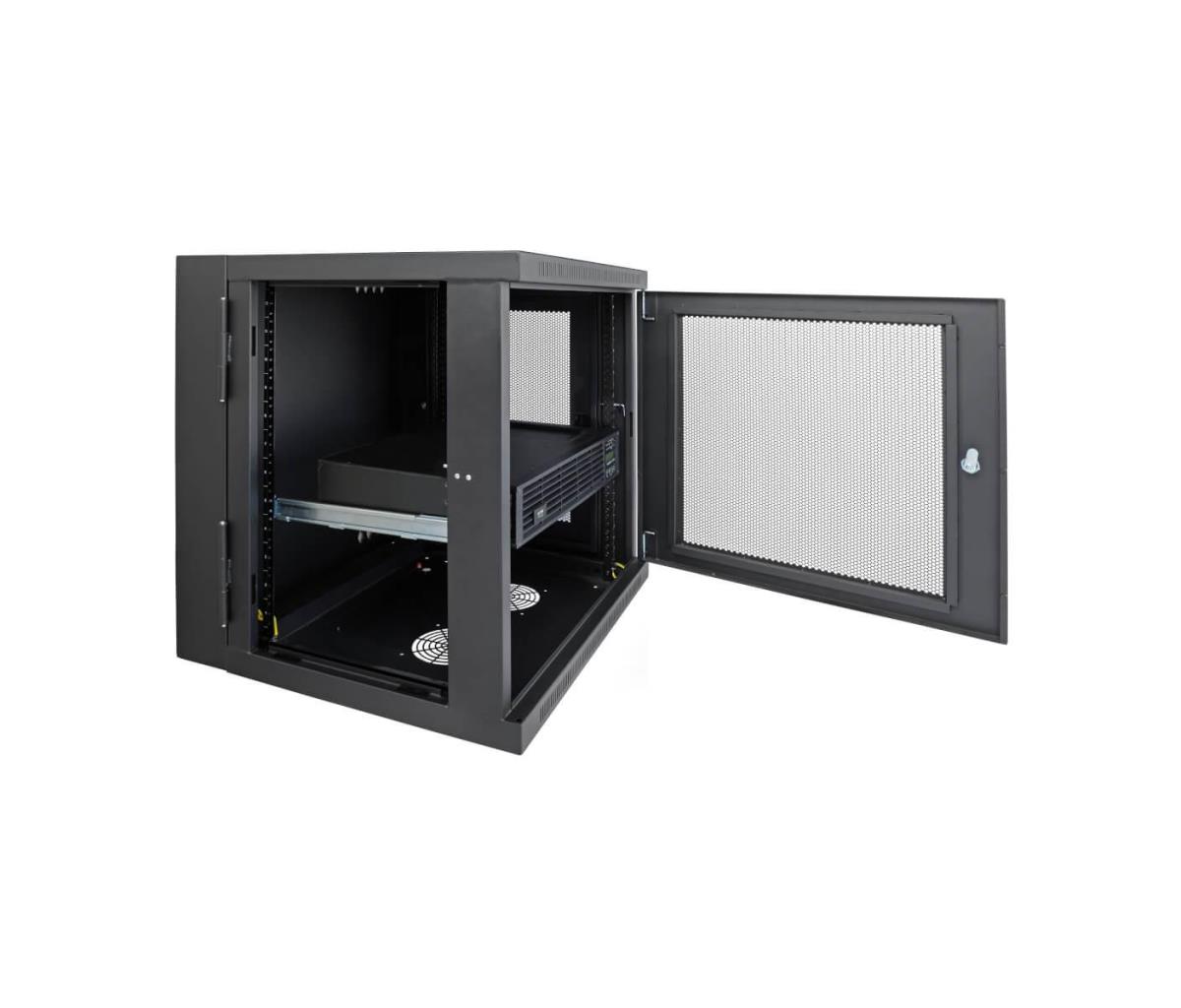

The 4POSTRAILKITWM wall-mount rack shelf kit provides extra support for heavy UPS systems, PDUs or other rack-mount components that weigh 150 lbs (68 kgs) or less. It includes two adjustable mounting rails that attach to the mounting rails of your EIA-standard 19-inch wall-mount enclosure. Constructed using cold-rolled steel with a durable powder-coated finish, this heavy-duty rack rail kit comes with mounting hardware compatible with square-hole racks.
The rails offer front-to-rear support for equipment with 17.5-inch-wide rectangular chassis. They also adjust to any setting between 14.5 and 23.5 inches and leave the rack's front and rear mounting holes free to attach equipment. Setup is hassle-free and saves money and time on installation. Threaded-hole rack installation is also supported with user-supplied mounting hardware.
| Warranty | |
| Base Warranty | Non Non |
| Features | |
| Type | Mounting kit |
| Product colour | Silver |
| Housing material | Steel |
| Rack capacity | 1U |
| Compatible rack width | 19" |
| Country of origin | China |
| Weight & dimensions | |
| Width | 37.8 mm |
| Depth | 381 mm |
| Depth (max) | 59.7 cm |
| Height | 43.7 mm |
| Weight | 1.18 kg |
| Packaging data | |
| Package width | 54.9 mm |
| Package depth | 385.1 mm |
| Package height | 50 mm |
| Package weight | 1.36 kg |
| Packaging content | |
| Screws included | Yes |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332206371 |
| Logistics data | |
| Master (outer) case width | 270 mm |
| Master (outer) case length | 405.1 mm |
| Master (outer) case height | 130 mm |
| Master (outer) case gross weight | 14 kg |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 7326.90.8688 |
