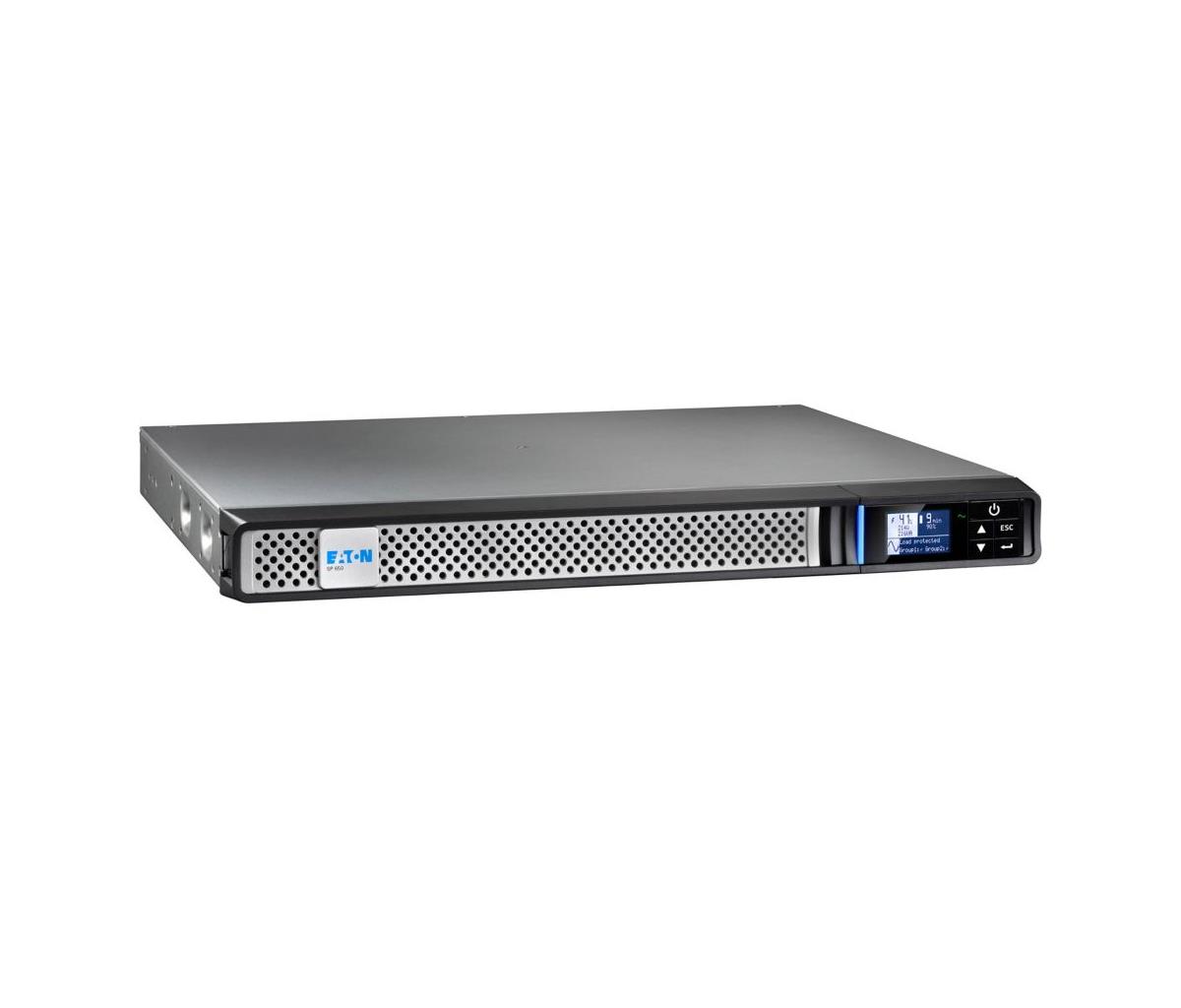

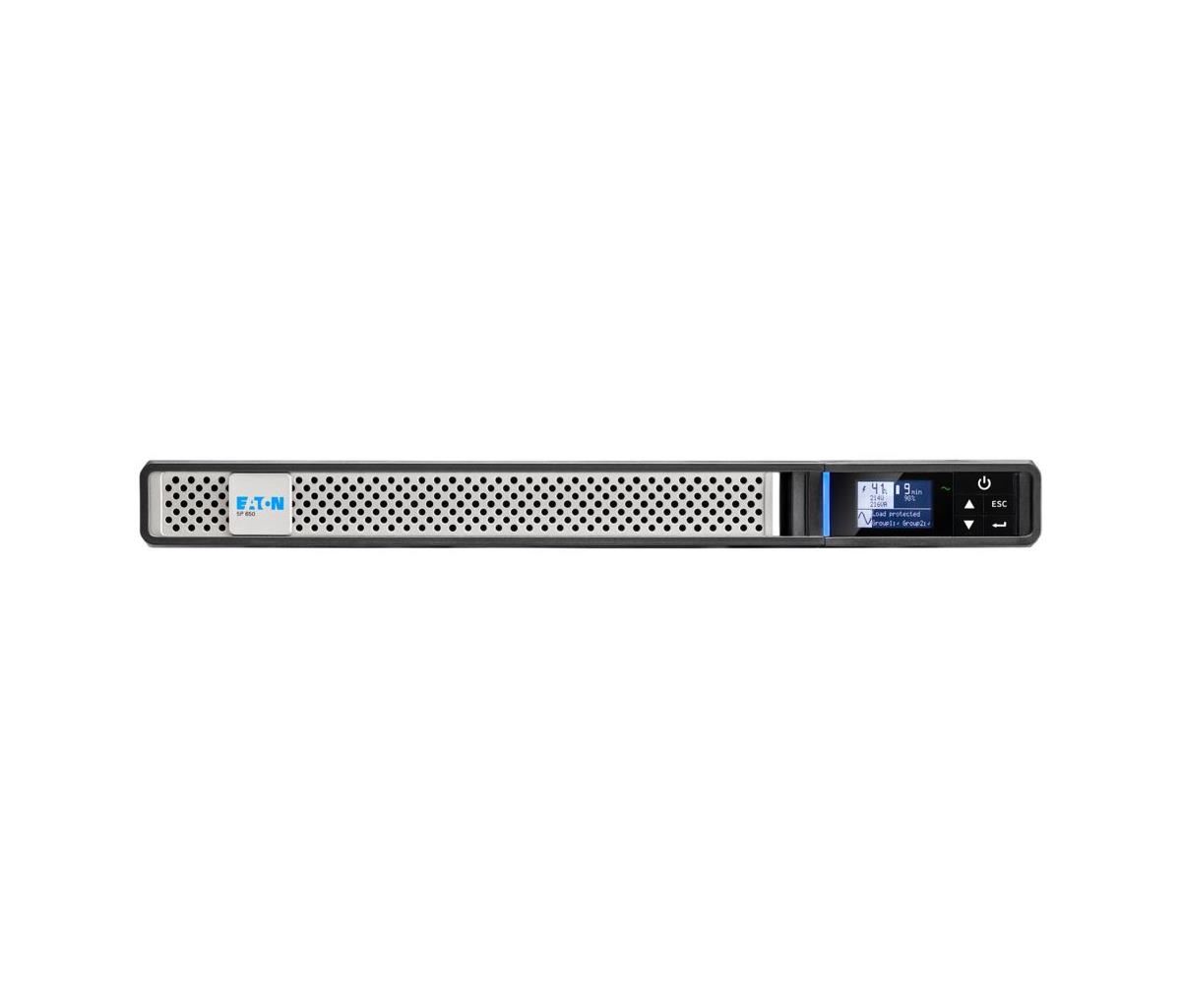

Eaton UPS 5P Gen2 - 650VA, 520W, Input: C14, Outputs: (4) C13, Rack, 1U
ITCurry #: N4836751 | Article #: 5P650IRG2
slide 2 of 4
Related products
slide 7 to 11 of 14
Product Information
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 0.65 kVA |
| Output power | 520 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 294 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 98% |
| ECO mode | No |
| Noise level | 40 dB |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 2 min |
| Typical backup time at half load | 9 min |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Certificates | |
| Certification | IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV) |
| Packaging content | |
| Rack mount kit | Yes |
| Safety regulation & standards | |
| Safety | IEC/EN 62040-1, UL 1778 |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 361 mm |
| Height | 43.2 mm |
| Weight | 8.6 kg |
| Packaging data | |
| Management card included | No |
| Bundled software | Intelligent Power Software suite |
| Other features | |
| Input connection type | IEC C14 |
| Mac compatibility | No |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Warranty | |
| Base Warranty | Non Non |
