USB Type C to DP. adapter cable 8Ka30Hz. HBR3. Alu Housing. Black 2m
ITCurry #: M9238979 | Article #: DB-300334-020-S-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

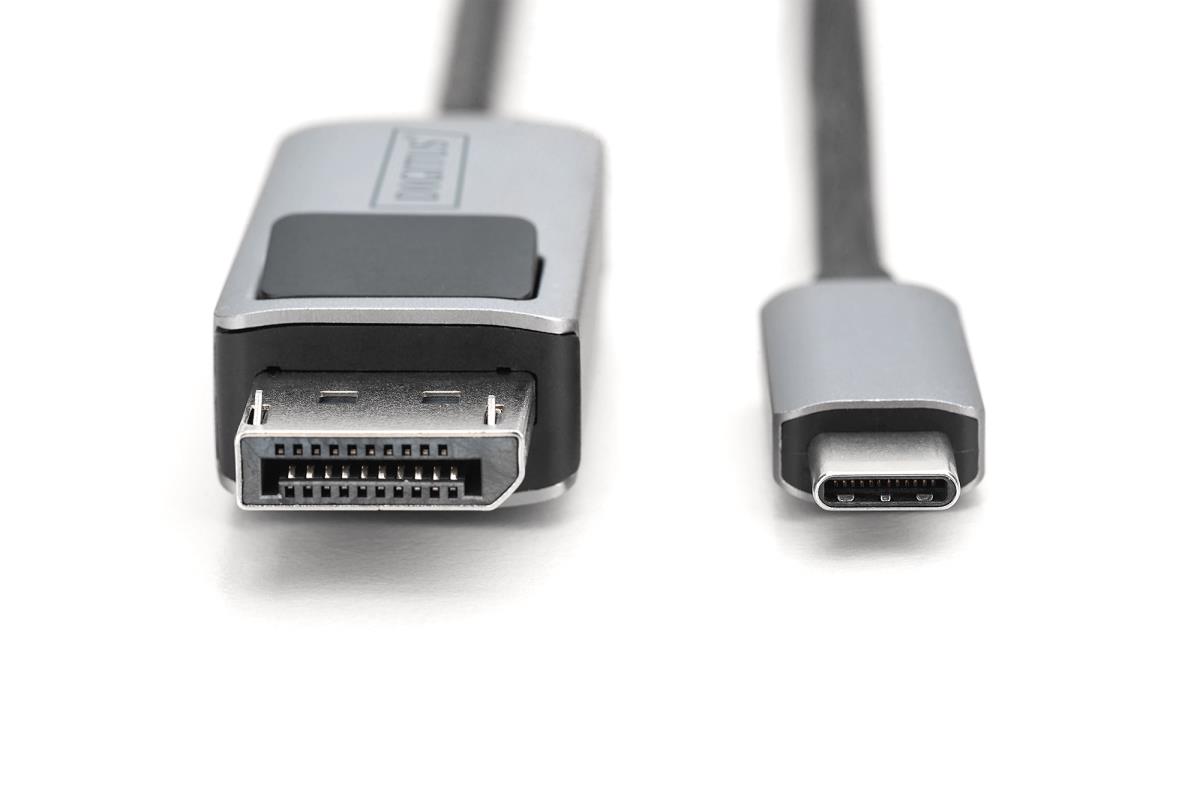

The DIGITUS® USB Type-C to DisplayPort Adapter Cable supports transmission from USB Type-C sources to DP-capable displays.
- USB Type C to DisplayPort Bi-directional Adapter Cable
- Supports transmission from USB Type-C interface to DisplayPort interface
- Supports transfer from DisplayPort interface to USB Type C interface
- Supports DP Alt-Mode
- Supports DisplayPort 1.4 version and is backwards-compatible (DP 1.3/1.2/1.1)
- Supports resolutions of up to 8K (7680x4320) with a display refresh rate of up to 30Hz.
- Avoid adapters with a Plug and Play cable adapter that does not require external power supply
- Type-C plug can be used on both sides

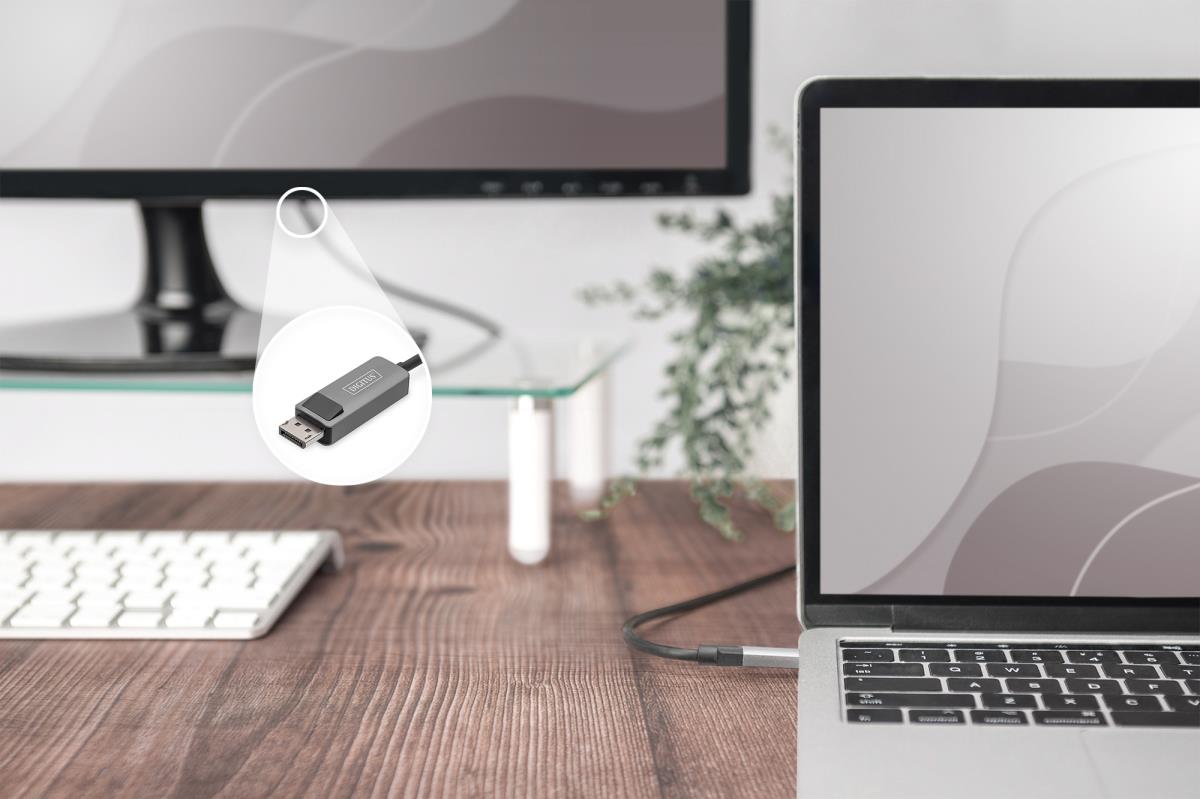

The DIGITUS® USB Type C <=> DisplayPort bidirectional adapter cable supports the transfer from a USB Type C source to a DisplayPort interface. Likewise, it supports the transfer from a DisplayPort source to a USB Type-C interface. For example, you can connect your laptop (USB Type-C equipped) to your monitor, TV or projector (DisplayPort interface) or you can connect your PC (DisplayPort output) to a monitor (USB Type-C interface). Power is supplied via the USB port, so no external power source is necessary.
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Power source | USB |
| Cable length | 2 m |
| Connector 1 | USB Type-C |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 2048 x 1080, 3840 x 2160, 7680 x 4320 |
| Data transfer rate | 25.92 Gbit/s |
| Maximum refresh rate | 165 Hz |
| Refresh rate at maximum resolution | 30 Hz |
| Number of shielding layers | 3 |
| Product colour | Black |
| Magnetically shielded | Yes |
| Ferrite bead | No |
| Cable type | Round cable |
| AWG wire size | 34 |
| Plug and Play | Yes |
| Cable shielding | Aluminium mylar foil |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 75 mm |
| Package depth | 50 mm |
| Package height | 235 mm |
| Package weight | 100 g |
| Package volume | 881.25 cmü |
| Logistics data | |
| UK Trade Tariff code | 84718000 |
| Warranty | |
| Base Warranty | Non Non |
