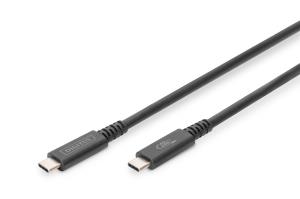

USB 4 connection cable. TypeC to TypeC. AL-Housing PP Braid 4Ka60Hz. PD3.0. 20Gbits/s. 3m. black
ITCurry #: M9238981 | Article #: DB-300443-030-S-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The USB 4.0 cable is an all-rounder and supports the following transmission types: audio/video/data transfer/charging function
- Supports data transfer rates of up to 20 Gbit/s
- Supports USB Power Delivery Revision 3.0 (PD 3.0) with 20V, 3A and 60W
- Backwards compatible with Thunderbolt 3, USB 3.2, USB 3.1 and USB 2.0
- Supports DisplayPort (2.0) video/audio signals and PCi Express
- Video/audio support up to 8K (7680 × 4320 pixels at 30Hz)
The Digitus® 3rd generation USB 4.0 cable with aluminum housing is the all-rounder among cables. Thanks to the Thunderbolt 3 protocol, PCI Express, DisplayPort and host-to-host transmissions can be realized. You can use this cable to transfer audio/video signals, data and power. The data transfer speed is 20 Gbit/s, which is 4x faster than USB 3.0 (5 Gbit/s) and 2x faster than USB 3.1 (10 Gbit/s). This allows you to transfer large data such as movies and music within seconds. The video signals are transmitted in max. 8K at a refresh rate of 30 Hz. In addition, the resolutions 5K (5120 x 2880) at 60 Hz. and 8K (7680 × 4320) @30Hz. (dual mode possible) are also supported. Thanks to USB Power Delivery Revision 3.0, the fast charging function is guaranteed. With the corresponding charger, you can charge your smart devices with max. 60 W (3 A / 20 V) in a short time. The USB Type-C interface enables broad compatibility with devices with this connection.
| Features | |
| USB version | USB4 Gen 2x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 30 |
| Connector material | Aluminium |
| Connector contacts plating | Gold |
| Magnetically shielded | Yes |
| Cable jacket material | Polypropylene |
| Cable jacket type | Extremely flexible |
| Ferrite bead | No |
| Maximum data transfer rate | 20000 Mbit/s |
| Maximum data transfer rate | 20 Gbit/s |
| Product colour | Black |
| Cable type | Round cable |
| Plug and Play | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 60 Hz |
| Weight & dimensions | |
| Cable length | 3 m |
| Cable diameter | 5 mm |
| Bend radius (min) | 6 cm |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 80 mm |
| Package height | 40 mm |
| Package weight | 200.6 g |
| Package volume | 736 cmü |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85444290 |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
