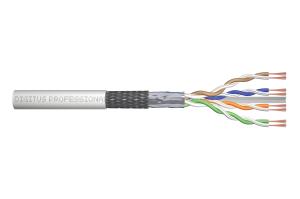

Patch cable - CAT6 - SF/UTP - raw - 305m - Grey
ITCurry #: M9237208 | Article #: DK-1633-P-305Flash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
134.60
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information
Future-oriented standards and high-end quality for your network.
- Suitable for direct assembly of RJ45 connectors in order to produce patch cords
- Suitable for installations of class E cable lines, 250 MHz
- According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-6-1
- Conductor: Copper (Cu)
- PoE+ ready
The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.
| Features | |
| Product colour | Grey |
| Cable length | 305 m |
| Cable standard | Cat6 |
| Cable shielding | SF/UTP (S-FTP) |
| Connector 1 | No |
| Connector 2 | No |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| Cabling technology | 10GBase-T |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| AWG wire size | 26/7 |
| Data transfer rate | 10000 Mbit/s |
| Frequency | 250 MHz |
| Oil-resistant | Yes |
| Country of origin | China |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 øC |
| Storage temperature (T-T) | -10 - 75 øC |
| Sustainability | |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Outer diameter | 6.3 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 430 mm |
| Package height | 200 mm |
| Package weight | 12.3 kg |
| Package volume | 36980 cmü |
| Other features | |
| Input impedance | 100 O |
| Category | 6 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| UK Trade Tariff code | 85444920 |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case gross weight | 24.6 kg |
| Master (outer) case height | 425 mm |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case volume | 86062.5 cmü |
| Warranty | |
| Base Warranty | Non Non |
