Product Information

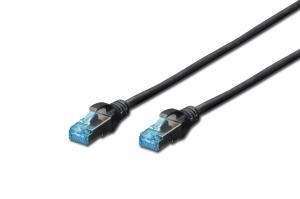

Future-oriented standards and high-end quality for your network.
- Transparent blue colored plug with metal shielding for easy identification of Category 5e (100 MHz)
The DIGITUS® Category 5e Class D patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 5e specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 5e cabling. The performance is tested up to 100 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking.You can easily identify the Category 5e, because of the transparent blue colored connector.
Features | |
Product colour | Grey |
Cable length | 3 m |
Cable standard | Cat5e |
Cable shielding | SF/UTP (S-FTP) |
Connector 1 | RJ-45 |
Connector 2 | RJ-45 |
Connector 1 gender | Male |
Connector 2 gender | Male |
Connector contacts plating | Gold |
Jacket material | Polyvinyl chloride (PVC) |
Conductor type | Stranded |
Conductor material | Copper |
AWG wire size | 26/7 |
Frequency | 100 MHz |
Country of origin | China |
Operational conditions | |
Operating temperature (T-T) | -20 - 60 øC |
Weight & dimensions | |
Outer diameter | 5.3 mm |
Packaging data | |
Package width | 170 mm |
Package depth | 18 mm |
Package weight | 88 g |
Package volume | 765 cmü |
Package type | Polybag |
Logistics data | |
Harmonized System (HS) code | 84733080 |
UK Trade Tariff code | 85444210 |
Warranty | |
Base Warranty | Non Non |
