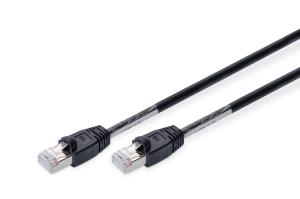

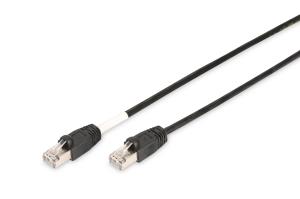

outdoor Patch cable - CAT6 - S/FTP - Booted - Cu - 2m - black sheath
ITCurry #: M9234757 | Article #: DK-1644-020/BL-OD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Outstanding performance and connection quality for your network with UV resistance.
- UV resistant due to the LDPE outer jacket
- Hoods with bend protection, strain relief and latching lever protection
- Supports: PoE, PoE+, PoE++ (IEEE 802.3af; 3at; bt)
The DIGITUS® Category 6 Class E patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 6 standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 6 cabling. The performance has been tested up to 250 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from snagging and the latching lever from breaking off the plug. With the UV-resistant PE outer sheath, this outdoor patch cable enables safe installation in areas with strong temperature fluctuations and which are exposed to the sun.
| Features | |
| Product colour | Black |
| Cable length | 2 m |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Polyethylene (PE) |
| Cable class | E |
| AWG wire size | 27/7 |
| Country of origin | China |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 øC |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 16 mm |
| Package weight | 66.667 g |
| Package volume | 560 cmü |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| UK Trade Tariff code | 85444210 |
| Warranty | |
| Base Warranty | Non Non |
