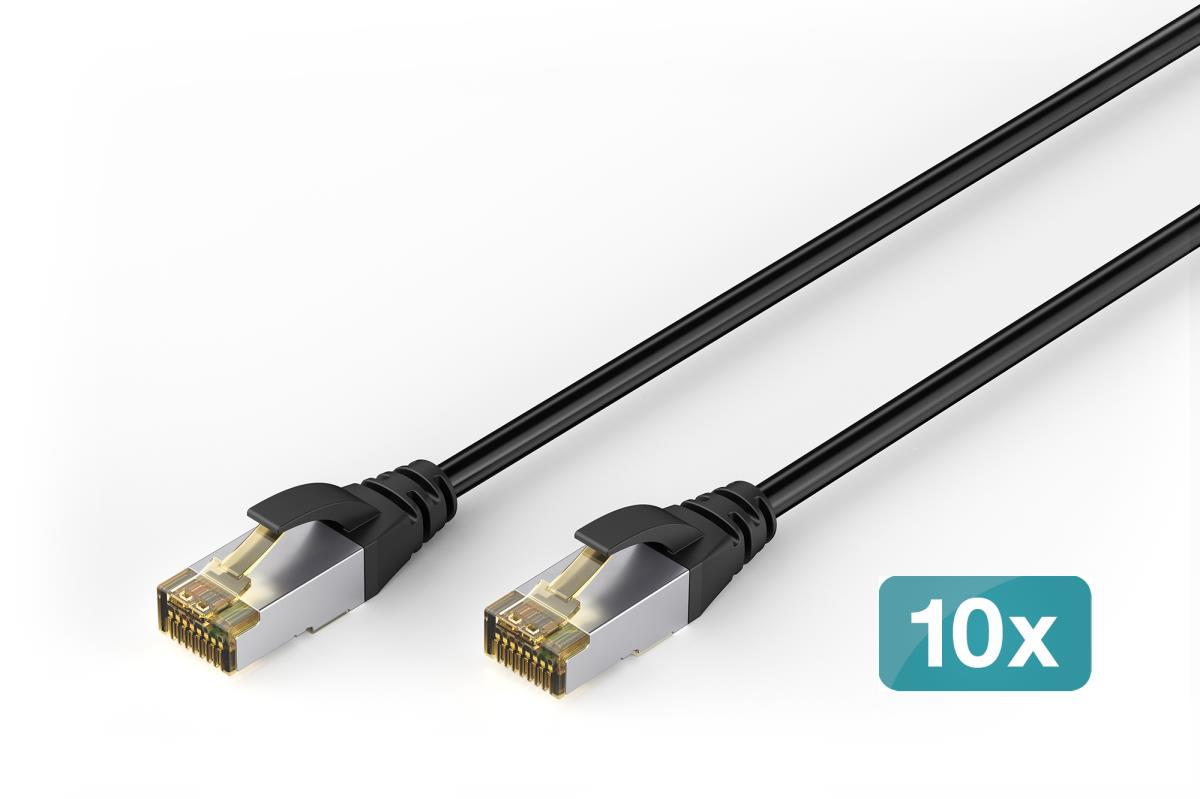

Outdoor patch cable - CAT6a - S/FTP - Snagless - Cu - 2m - black- 10pk
ITCurry #: M923A014 | Article #: DK-1644-A-020-OD-10-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Outstanding performance and connection quality for your network with UV resistance.
- UV resistant due to the LDPE outer jacket
- Hoods with bend protection, strain relief and latching lever protection
- Supports: PoE, PoE+, PoE++ (IEEE 802.3af; 3at; bt)
The DIGITUS® Category 6A Class E patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 6A standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 6 cabling. The performance has been tested up to 500 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from snagging and the latching lever from breaking off the plug. With the UV-resistant PE outer sheath, this outdoor patch cable enables safe installation in areas with strong temperature fluctuations and which are exposed to the sun.
| Features | |
| Product colour | Black |
| Cable length | 2 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Jacket material | Low-density polyethylene (LDPE) |
| Cable shape | Round |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| AWG wire size | 26/7 |
| Frequency | 500 MHz |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Suitable for outdoor use | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 øC |
| Packaging content | |
| Quantity per pack | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
