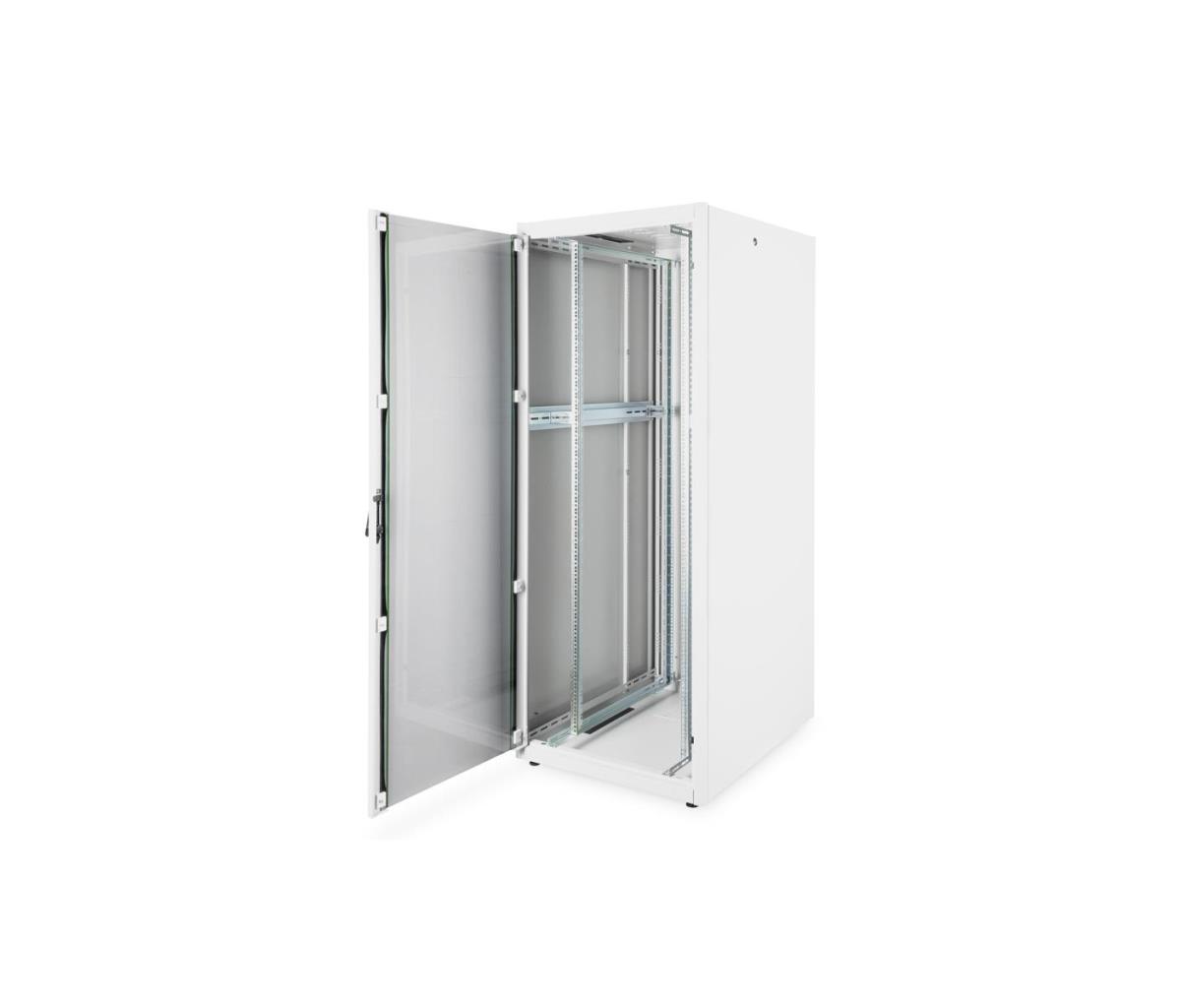

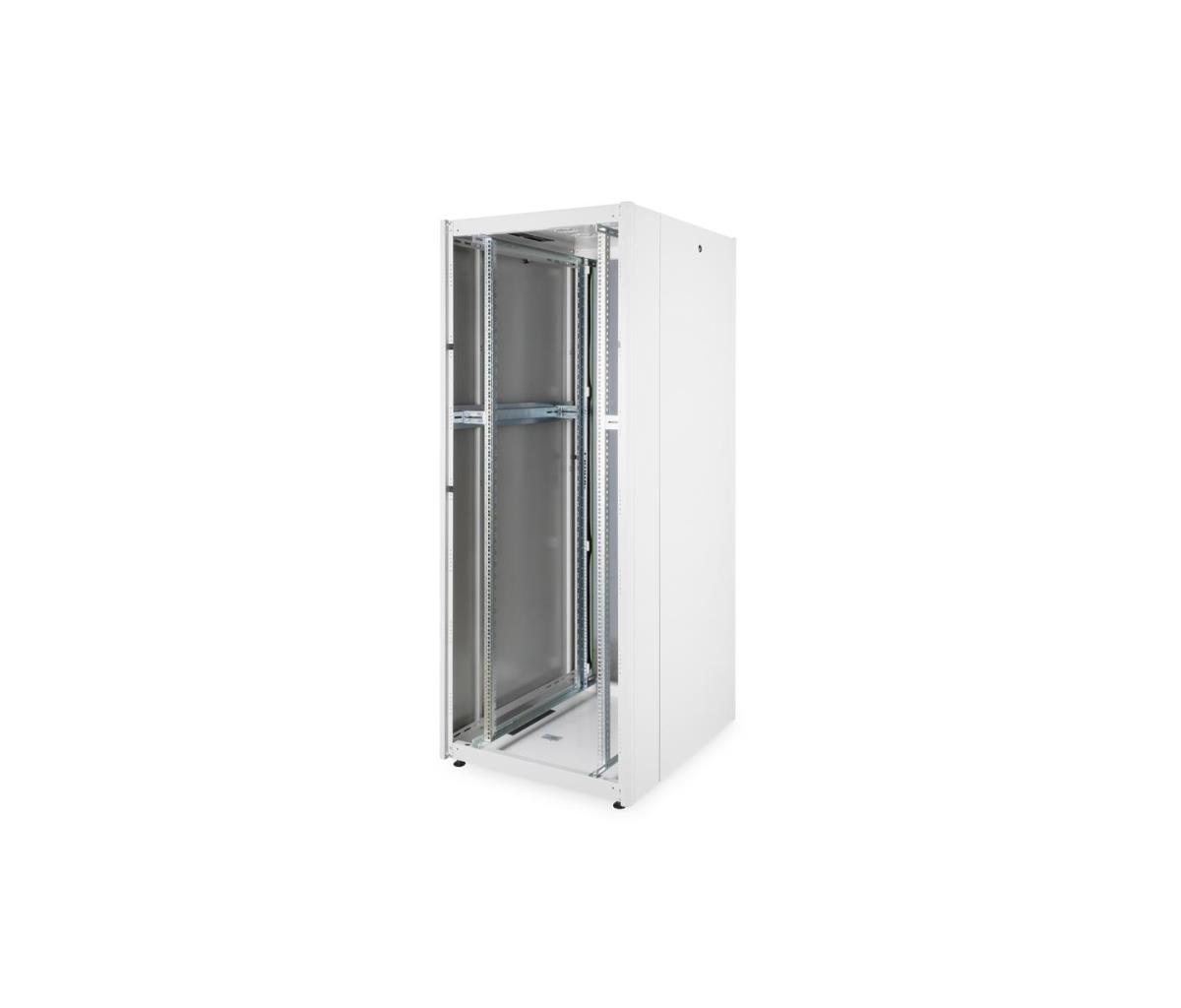

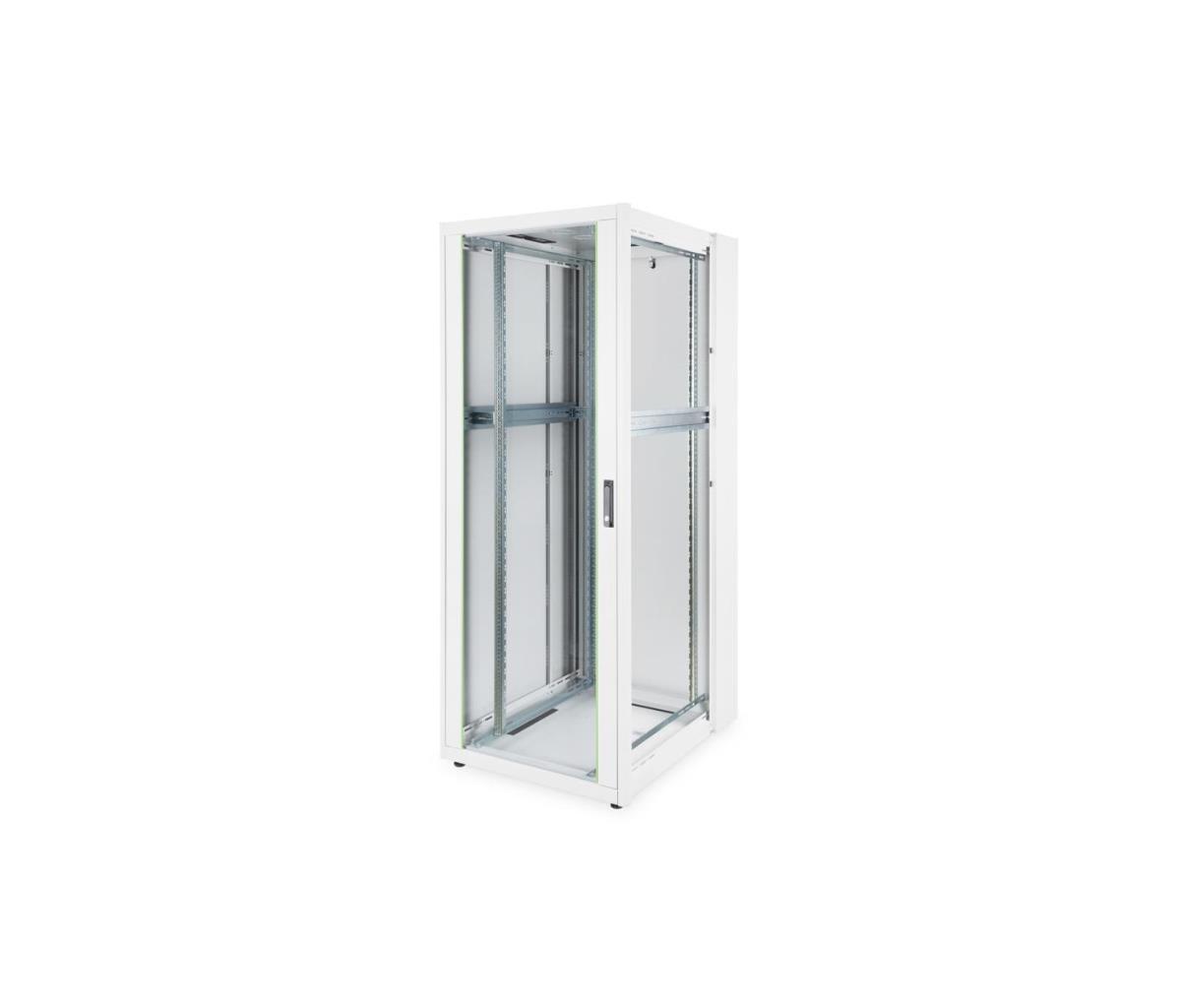

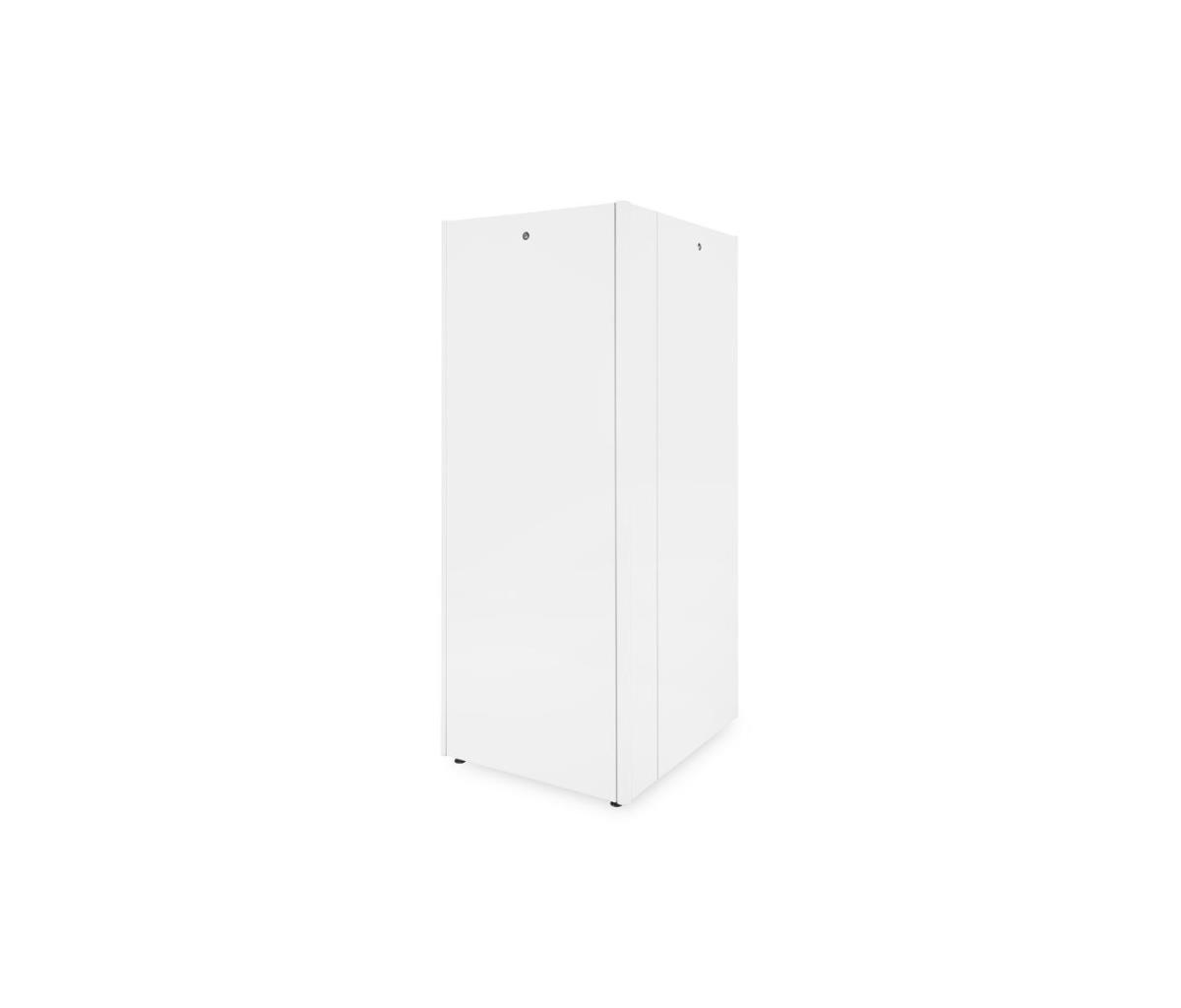

Network Cabinet Dynamic Basic 2010x800x1000mm/ Grey (ral 7035)
ITCurry #: M9237671 | Article #: DN-19 42U-8/10-D-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The DIGITUS® Dynamic Basic series has been manufactured, designed and developed to meet the high demands of IT infrastructure.
- Installation of roof ventilators prepared
- Lockable swivel lever handle on the front door
- Base with punched cable inlet, covered with screwed plate
The Dynamic series network cabinets have been developed for simple and particularly cost-optimized network expansion. Sophisticated positioning of the cable inlets ensures effortless installation depending on the application. In the floor chassis, this is located centrally at the rear, protected by a screw-fastened cover plate. Enclosures from 800 mm width are additionally extended by cable inlets with plastic covers on the left and right. These are also integrated in the roof (1 x for 600 mm enclosure width, 3 x for 800 mm enclosure width). The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. They can be adjusted in depth and are connected to additional depth braces in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side and rear panels as well as the lockable and removable front door improve accessibility. The door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
| Features | |
| Rack capacity | 42U |
| Type | Freestanding rack |
| Maximum weight capacity | 600 kg |
| Product colour | Grey |
| Back door construction | Steel |
| Front door construction | Glass |
| Side panels included | Yes |
| International Protection (IP) code | IP20 |
| Weight & dimensions | |
| Size (imperial) | 48.3 cm (19") |
| Width | 800 mm |
| Depth | 1000 mm |
| Height | 2010 mm |
| Packaging data | |
| Package width | 880 mm |
| Package depth | 1080 mm |
| Package volume | 2043360 cmü |
| Package weight | 150 kg |
| Logistics data | |
| UK Trade Tariff code | 94032080 |
| Country of origin | Turkey |
| Harmonized System (HS) code | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
