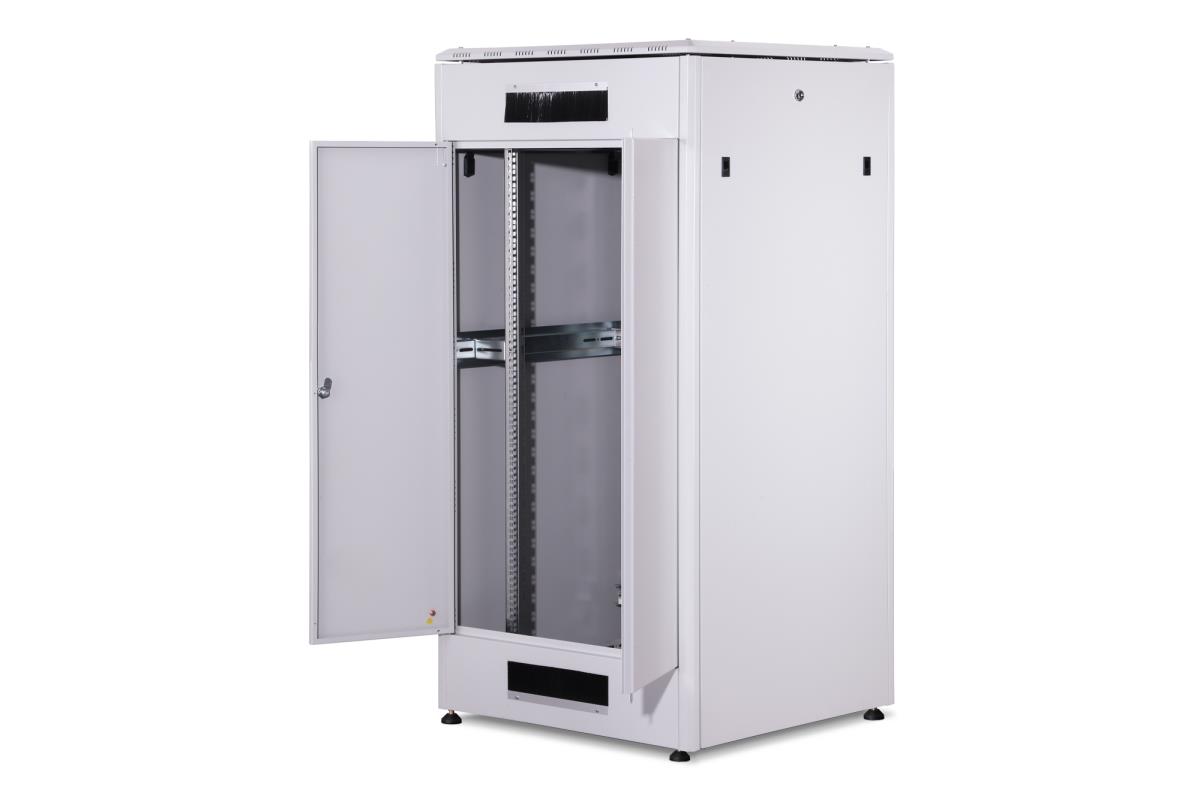

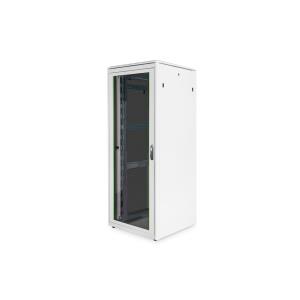

32U network cabinet 1609x800x800 mm, color grey (RAL 7035) glass door
ITCurry #: M9235946 | Article #: DN-19 32U-8/8-1-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The DIGITUS® Unique series has been manufactured, designed and developed for the high demands of IT infrastructure.

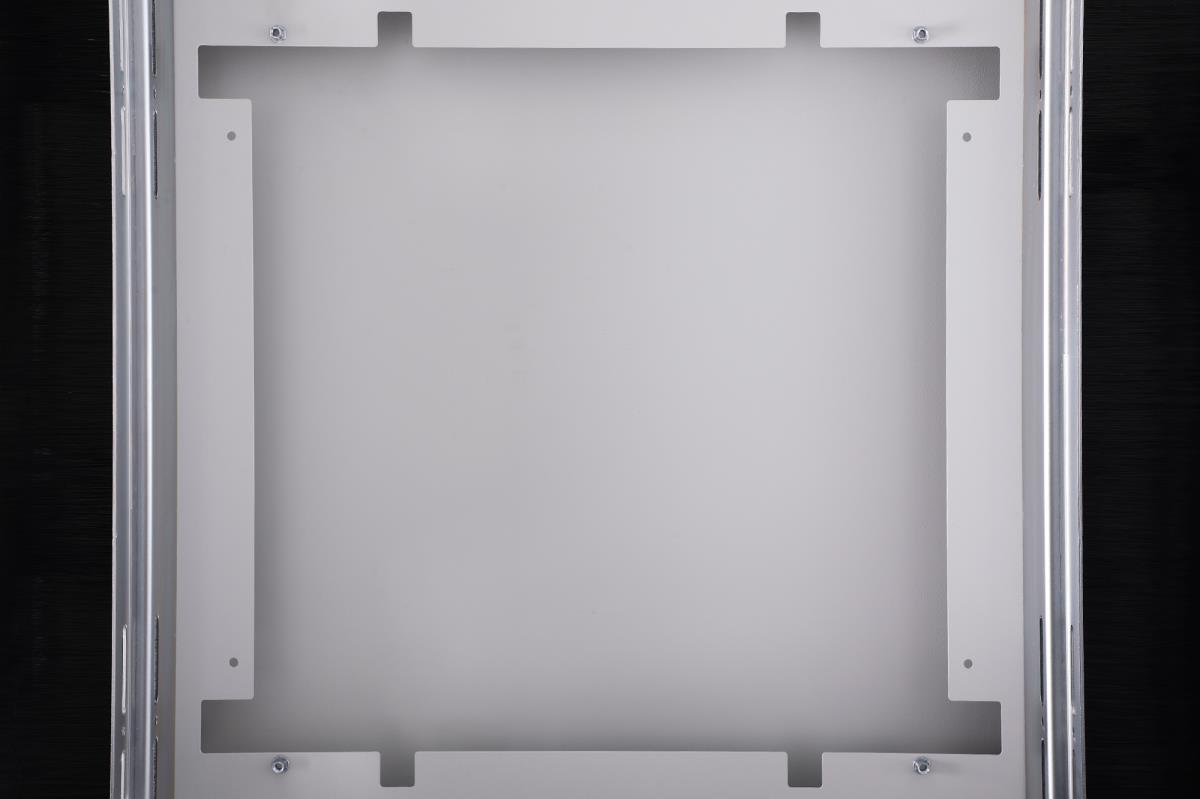

- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Locking system with swivel lever handle on front door (prepared to accept profile half cylinder; adapter included)
- Slide-on cable inlet with foam rubber seal in the base

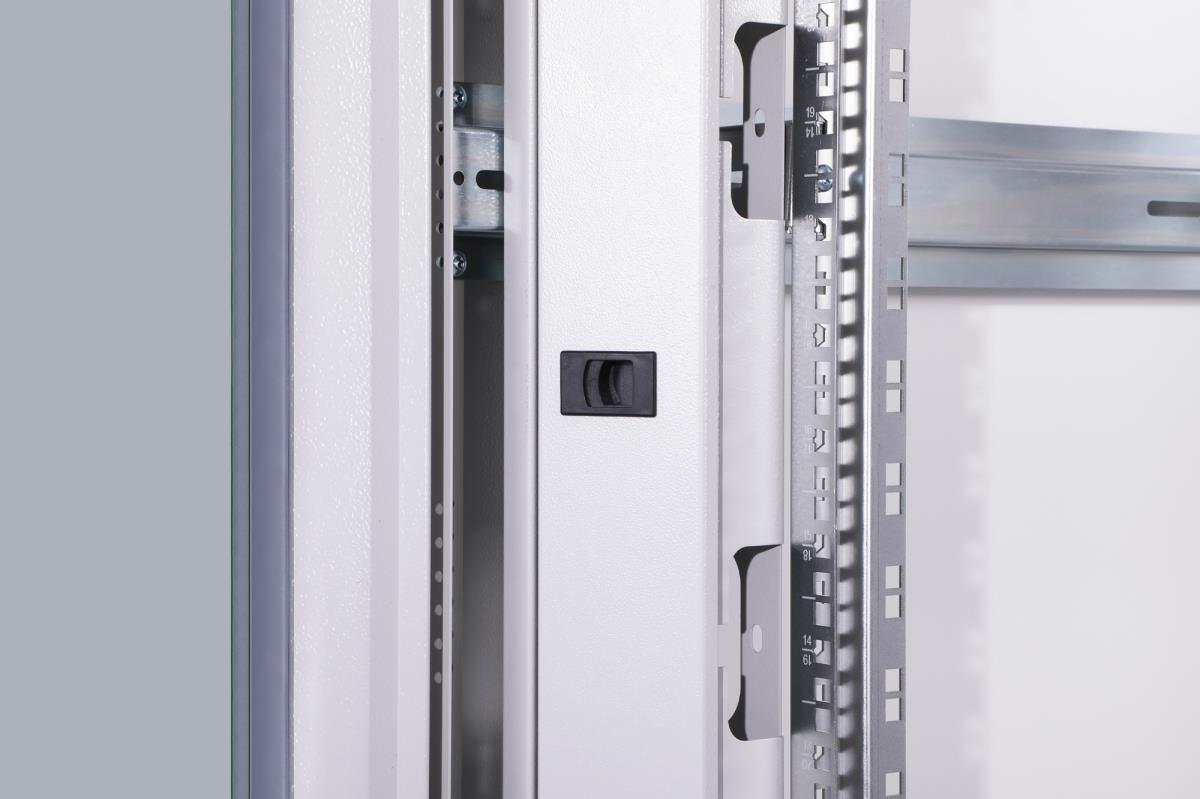

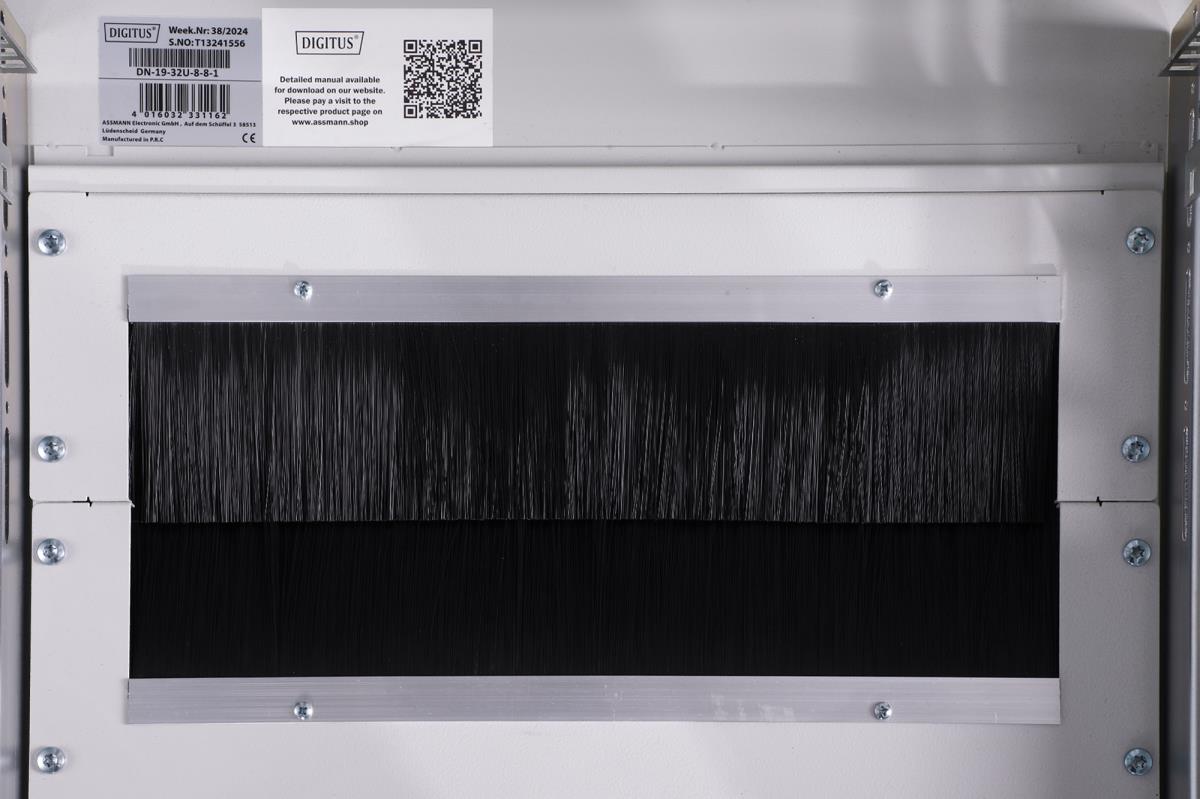

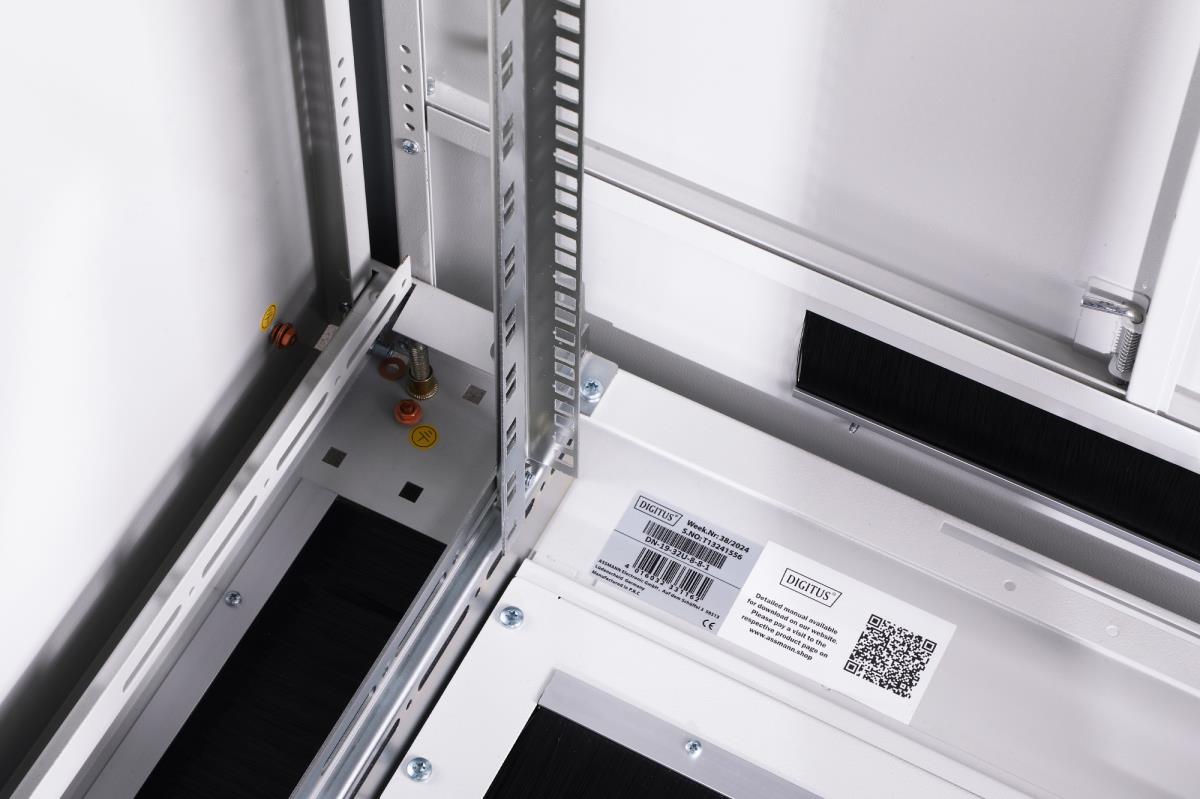

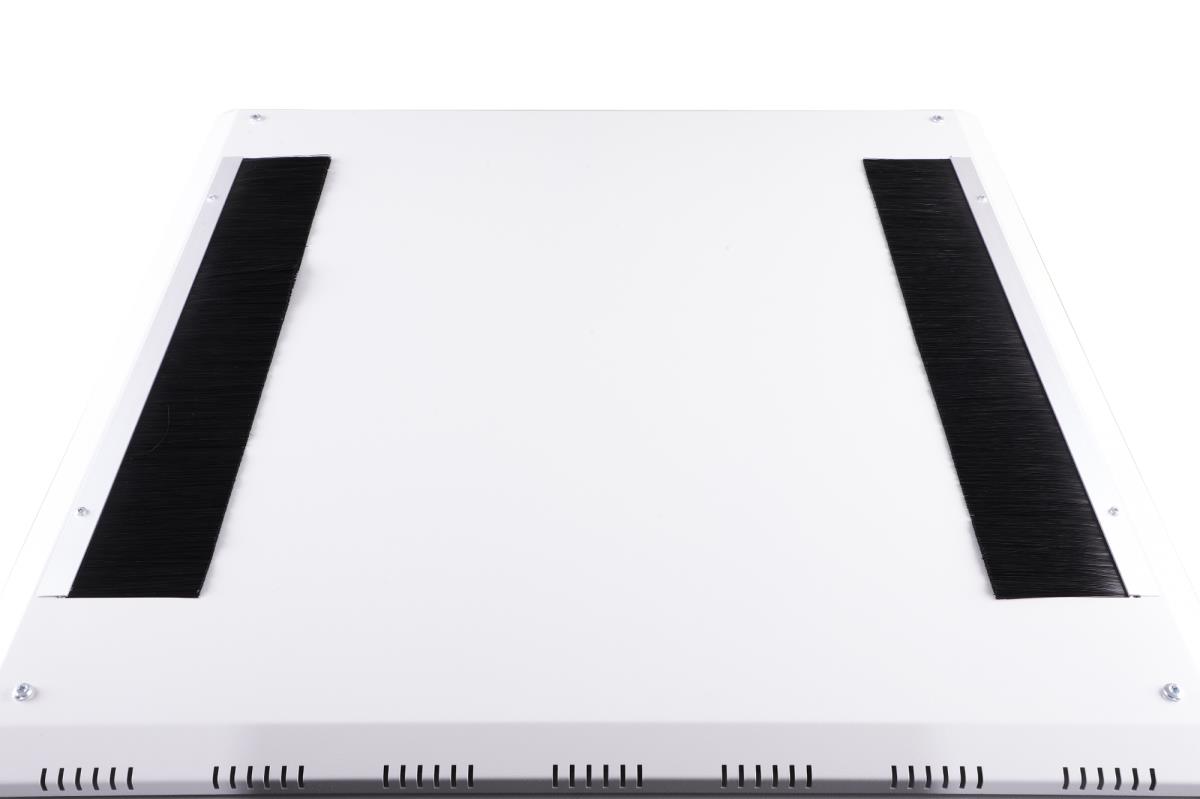

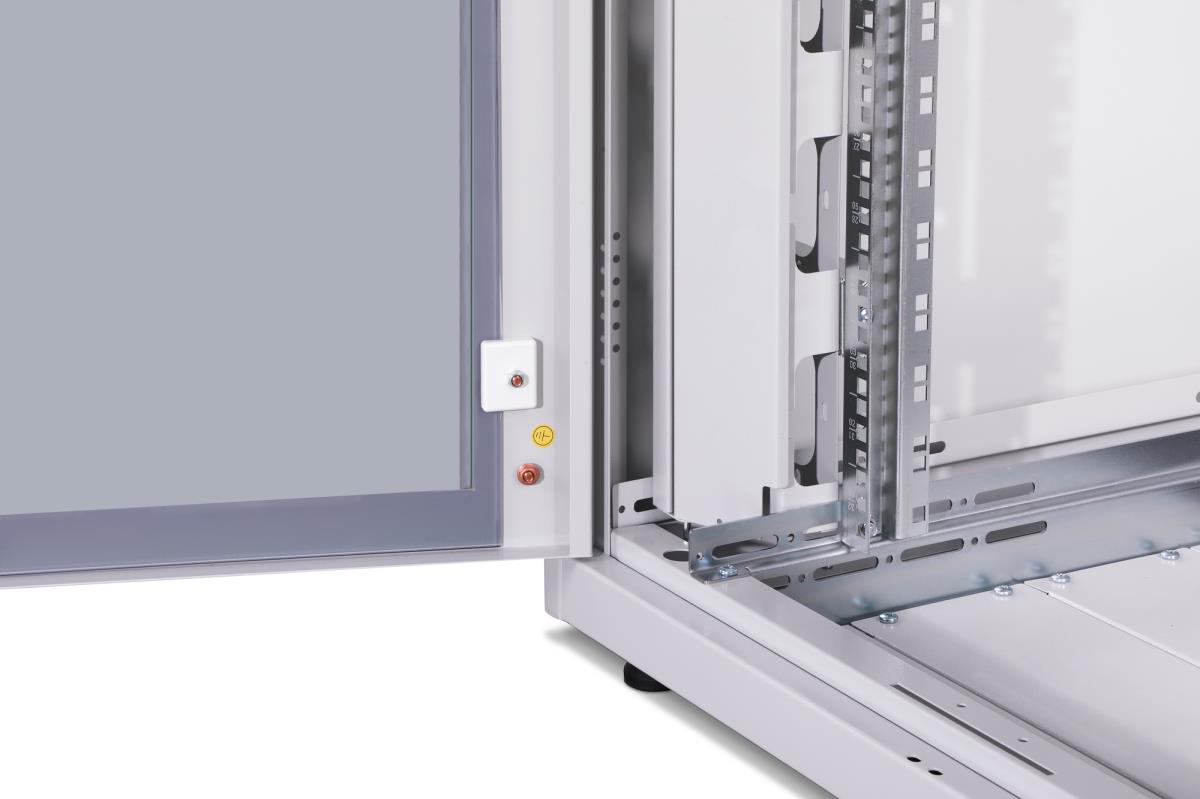

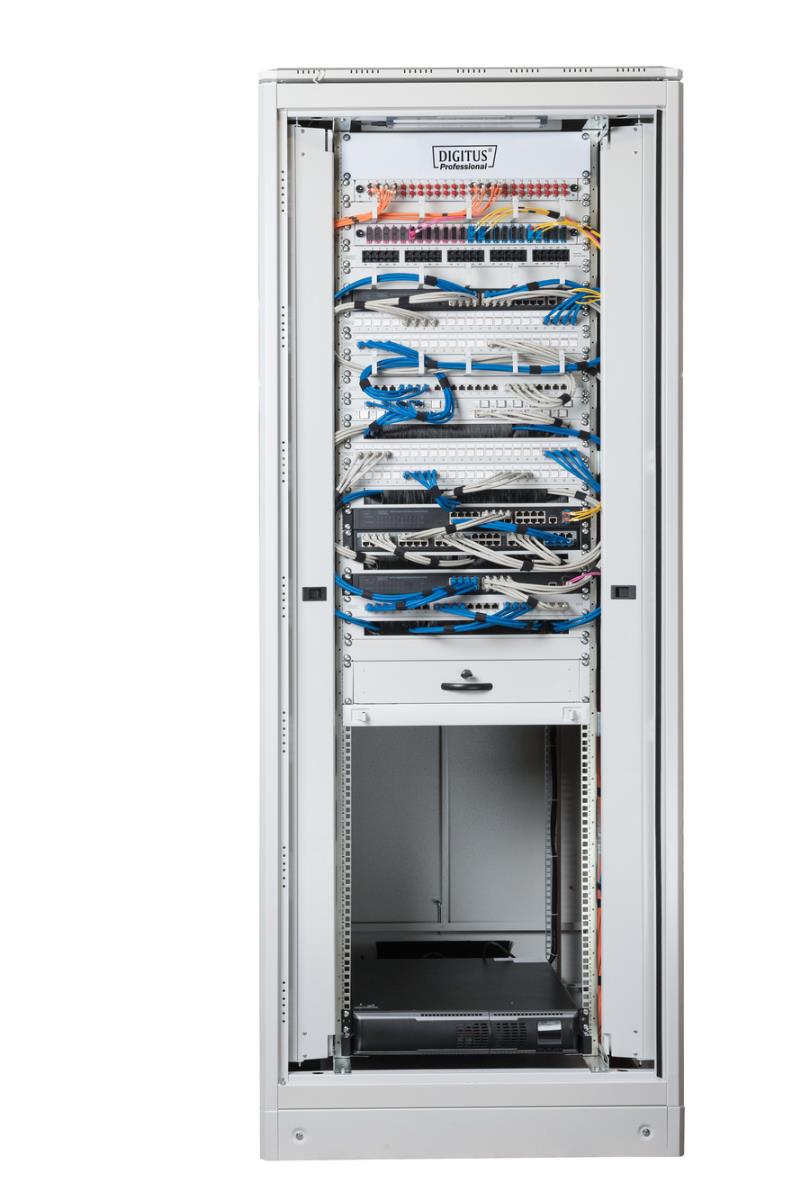

The network cabinets in the Unique series have been developed for particularly convenient and flexible network cabling. Brush-equipped inlets in the top and base (from 26U and 800 mm cabinet width), a slide-on inlet in the base chassis with foam rubber seal and rear brush strips above and below the rear door (from 26U) enable versatile use in a wide range of application scenarios. Vertical cable ducts with cover, installed next to the profile rails (from 800 mm enclosure width), round off the design. An offset, removable cover with ventilation slots ensures improved air circulation. This sits over a special construction for easy mounting of a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. They can be adjusted in depth and are connected to additional depth braces in the enclosure. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
| Features | |
| Type | Freestanding rack |
| Maximum weight capacity | 800 kg |
| Product colour | Grey |
| Back door construction | Steel |
| Front door construction | Glass |
| Side panels included | Yes |
| International Protection (IP) code | IP20 |
| Weight & dimensions | |
| Width | 800 mm |
| Depth | 800 mm |
| Packaging data | |
| Package width | 850 mm |
| Package depth | 850 mm |
| Package volume | 1198630 cmü |
| Package weight | 97 kg |
| Logistics data | |
| UK Trade Tariff code | 94032080 |
| Country of origin | Turkey |
| Harmonized System (HS) code | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
