KVM Switch, 2x1 DP, DP/HDMI Out,USB 4Kx2K@60Hz
ITCurry #: M9238176 | Article #: DS-12850-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Operate 2 PCs with one USB keyboard and mouse – switch between two computers by pressing a button or with the remote control
- Use a monitor, a mouse and a keyboard to operate two computers
- USB ports for mouse and keyboard
- Audio connections for microphone/speaker
- Integrated USB hub with 2 x USB 3.0 connections for additional peripheral equipment
- Switching between the PCs via switch on the KVM switch, remote control or hot key on the keyboard
- External receiver for signals from remote control included
- Compatible with HDMI 2.0 / HDCP 2.2 / DisplayPort 1.2 / HDR / FreeSync
- LED status and functional displays on the front side
- Wall installation possible
- Plug and Play - no driver installation required

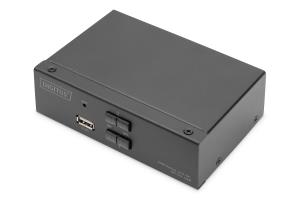

With the DIGITUS® 2-Port KVM Switch, you can operate two 4k-compatible PCs using a single USB keyboard and mouse. By pressing a button or using the remote control included in delivery, you can switch comfortably between the two PCs, sparing you the trouble of replugging all cables. Output to a monitor occurs either via the integrated HDMI® or the DisplayPort™ output. You can also switch between the audio signals for the microphone and speaker. In addition, two USB 3.0 ports are included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. If you place the KVM switch in an inaccessible location, you can use the IR receiver and connection cable included in delivery even if the KVM switch itself is not within the range of the remote control. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing and the option of wall mounting.
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 32.4 Gbit/s |
| HDCP | Yes |
| Plug and Play | Yes |
| Design | |
| LED indicators | Status |
| Power | |
| Output voltage | 5 V |
| Output current | 3 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 178 mm |
| Depth | 75 mm |
| Height | 29 mm |
| Weight | 372.8 g |
| Packaging content | |
| Cables included | DisplayPort, USB Type-A to USB Type-B |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
