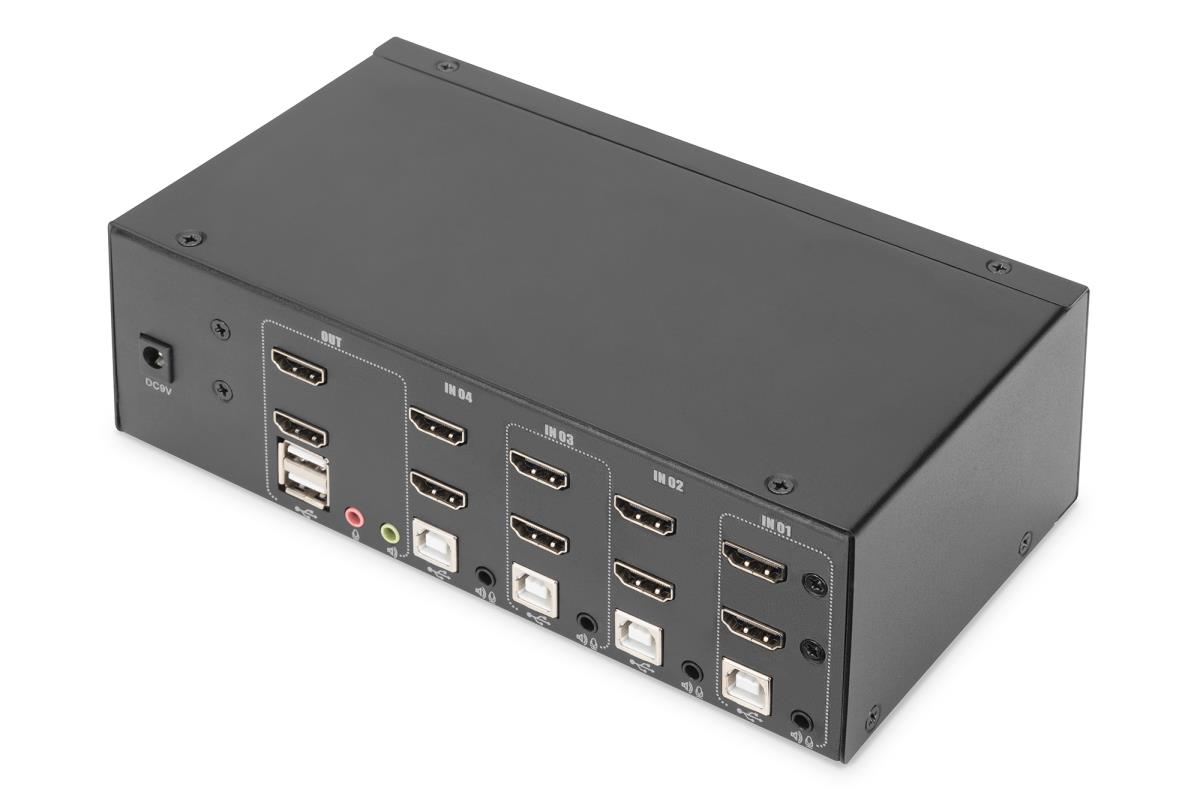

KVM Switch - 4 Port, Dual Display, 4K, HDMI

ITCurry #: M9239256 | Article #: DS-12883
Price:
133.68 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

Operate 4 PCs with dual display using a USB keyboard and mouse combination – switch between two computers by pressing a button

- Use two monitors, one mouse / keyboard to operate 4 computers with dual display
- Supports a maximum UHD resolution of 4K / 30 Hz + FreeSync
- USB ports for mouse and keyboard
- Audio connections for microphone / speakers, supports Dolby True HD and DTS HD Master Audio
- Integrated USB hub with USB A port for additional peripheral devices
- Switching between the PCs via switch on the KVM switch or hotkey on the keyboard

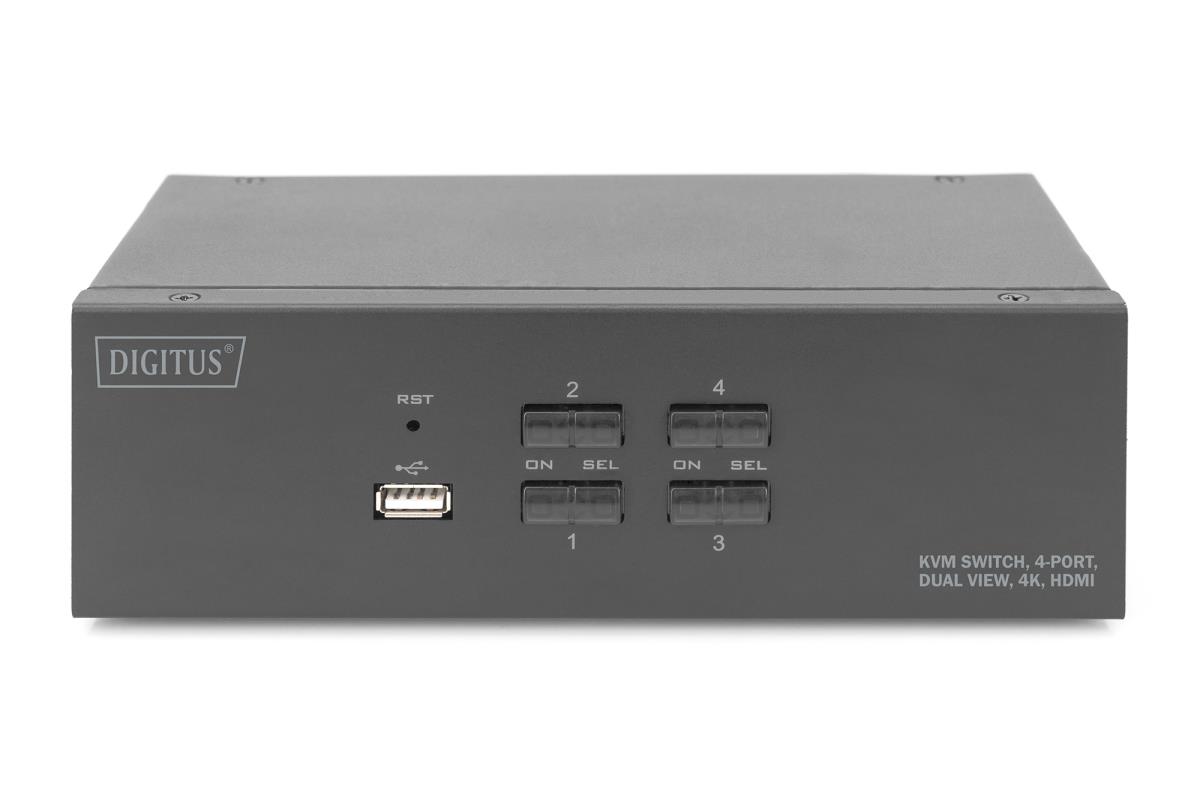

- LED status and function indicators on the front
- No more time-consuming re-plugging of connection cables necessary
- True plug and play - no software or driver installation required (BIOS hardware connection)
- Robust metal housing

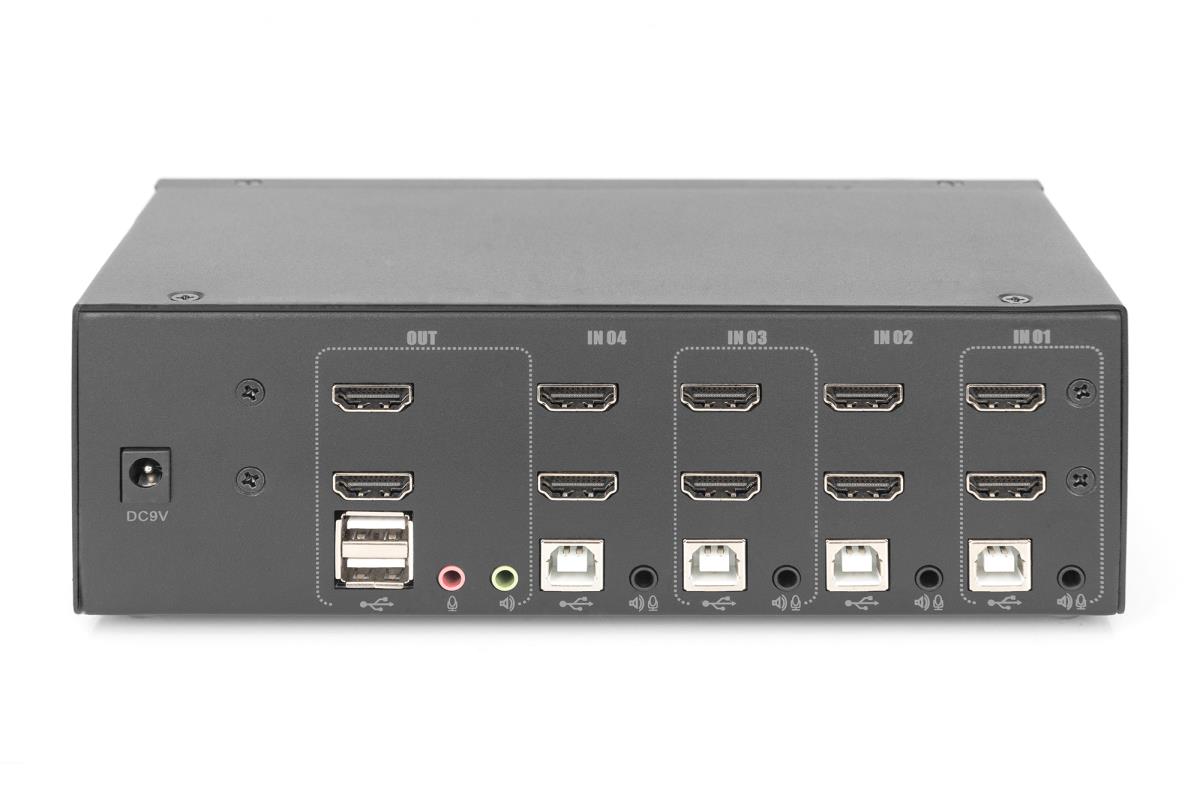

With the DIGITUS® 4-Port KVM Switch for dual displays, you can operate four 4k-compatible PCs using a single USB keyboard and mouse combination. By pressing a button or hot key, you can switch comfortably between all four PCs and are spared the trouble of replugging all cables. Output on up to two monitors is provided via two HDMI® outputs on the rear side. You can also switch between the audio signals for the microphone and speaker. In addition, a USB port is included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. The connected peripheral devices are each assigned to the active PC. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing.

Ports & interfaces
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type HDMI
HDMI ports quantity 10
HDMI version 1.4b
USB 2.0 Type-B ports quantity 4
Console ports HDMI, USB A
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 3
USB connector type USB Type-A
Audio connections Yes
Headphone outputs 1
Number of microphone inputs 1
DC-in jack Yes
Performance
HD type 4K Ultra HD
Maximum resolution 3840 x 2160 pixels
Plug and Play Yes
Design
Rack mounting No
Product colour Black
Housing material Metal
LED indicators Status
Display
Built-in display No
Power
Output current 0.3 A
External power adapter Yes
Operational conditions
Operating temperature (T-T) 0 - 50 øC
Storage temperature (T-T) -20 - 60 øC
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 202 mm
Depth 110 mm
Height 66 mm
Weight 920 g
Packaging data
Package width 210 mm
Package depth 210 mm
Package height 160 mm
Package volume 5292 cmü
Package weight 13.2 kg
Packaging content
Cables included HDMI, KVM
Quick installation guide Yes
AC adapter included Yes
Logistics data
UK Trade Tariff code 84718000
Country of origin China
Warranty
Base Warranty Non Non
