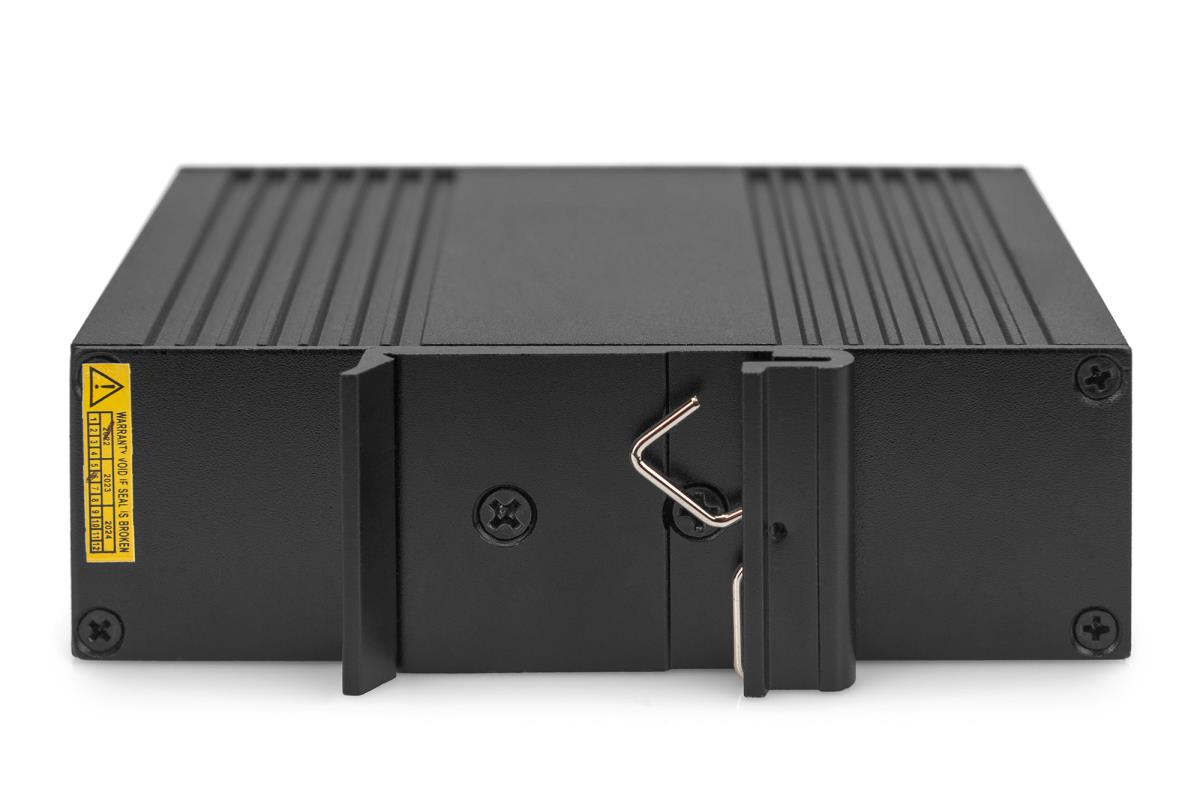

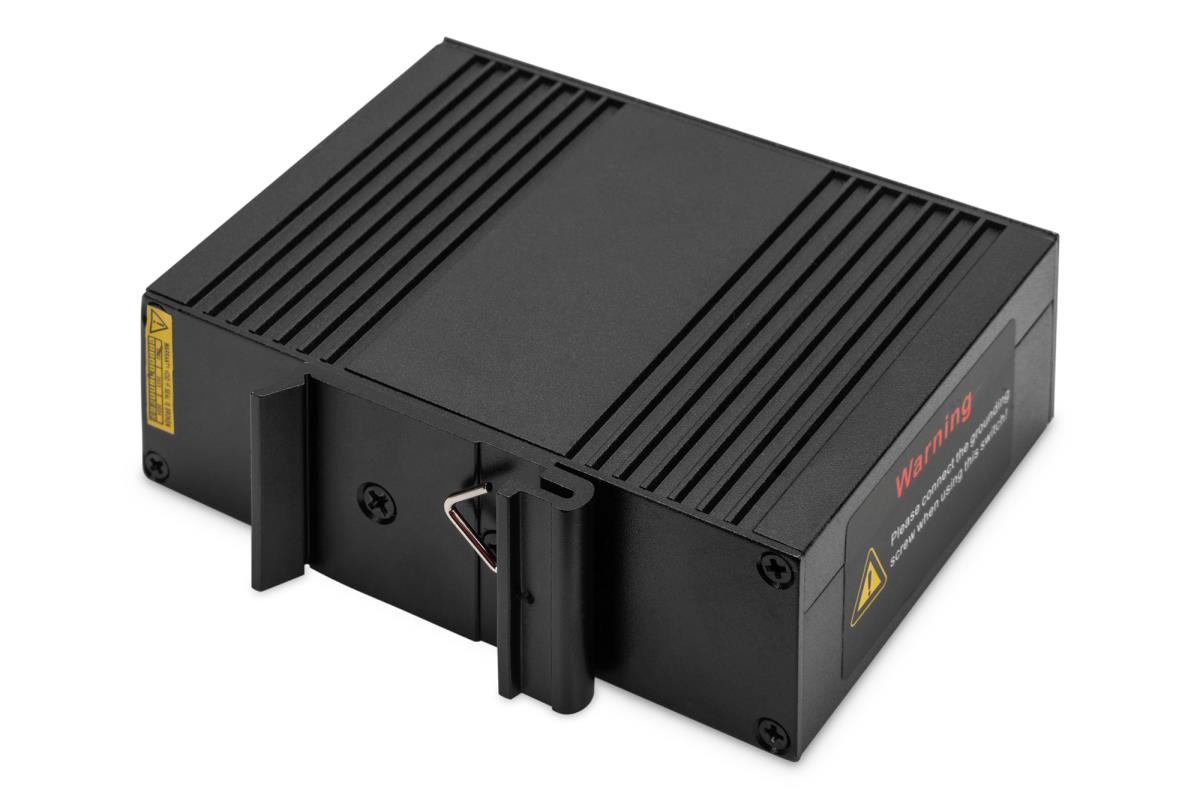

Industrial POE Splitter DIN Rail. 60 W. IEEE802.3at/af
ITCurry #: M9239033 | Article #: DN-651140-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The DN-651140 PoE splitter splits the 48VDC over the RJ45 Ethernet cable into 12VDC power output. Supports PoE applications in Gigabit Ethernet environments

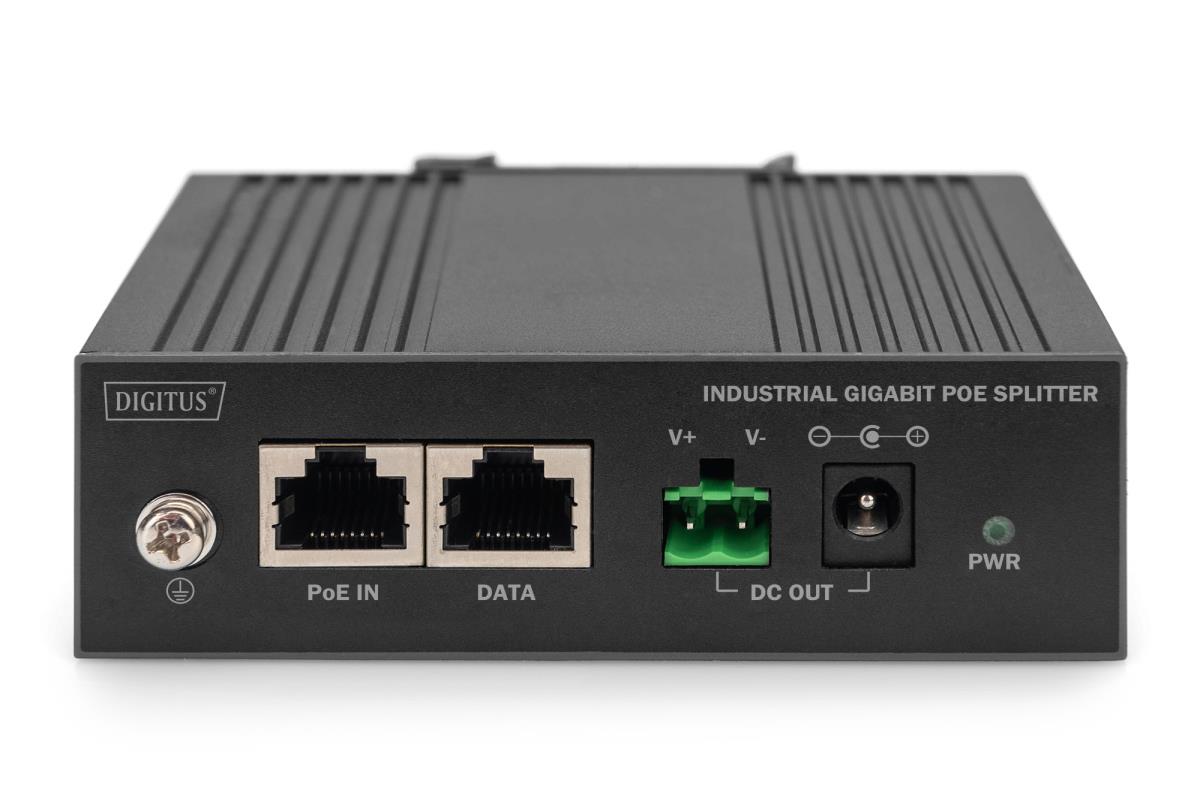

- Ports: 1 10/100/1000M RJ45 PoE Port (DATA + POWER IN), 1 10/100/1000M RJ45 LAN Port (Only DATA),1 Connector (DC OUT)
- Network Media: 10Mbps: Cat 3,4,5 Unshielded Cable, 100Mbps: Cat 5,5E Unshielded Cable, 1000Mbps: Cat 5E, 6 Unshielded Cable
- Pass Through Data Rates: 10/100/1000 Mbps
- Supported Standards:IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x,IEEE802.3af, IEEE802.3at , IEEE802.3bt
- Power Output: 12VDC/4.25A
- Input Power Requirements DC Input Voltage: 36 to 57 Vac
- Indicators: PoE ready / in-use
- Network Media(Cable): 10BASE-T: UTP category 3,4,5 cable (=100m), 100BASE-TX: UTP category 5 cable (=100m),1000BASE-T: UTP category 5e cable (=100m)
- Connectors: Shielded RJ-45, EIA 568A and 568B
- Environmental Conditions: Operating Ambient Temperature:-40 to 75?
- Operating Humidity:Maximum 90%, Non-condensing
- Storage Temperature:-40 to 75?
- Storage Humidity:Maximum 95%, Non-condensing
- Regulatory Compliance IEEE 802.3bt, IEEE 802.3at,IEEE 802.3at
- Dimensions (L*W*H):103 *177 *32 mm
The DN-651140 PoE splitter splits the 48VDC over the RJ45 Ethernet cable into 12VDC power
output. Supports PoE applications in Gigabit Ethernet environments
The modules compliant with IEEE 802.3bt power classification and support PSE
Alternative A and Alternative B connections. Maximum power output can reach 51W.
36Vdc to 57Vdc and less external components needed one output decoupling
capacitor
| Features | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Cabling technology | 10/100/1000Base-T(X) |
| Power over Ethernet (PoE) | No |
| Product colour | Black |
| LED indicators | Yes |
| Plug and Play | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-out jack | Yes |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 32 mm |
| Height | 108 mm |
| Packaging content | |
| Cables included | DC |
| Quick installation guide | Yes |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 188 mm |
| Package depth | 95 mm |
| Package height | 165 mm |
| Package weight | 423.889 g |
| Package volume | 4286.4 cmü |
| Power | |
| Input voltage | 36 - 57 V |
| Adjustable output voltage | Yes |
| DC output voltage | 12V |
| Output voltage | 12 V |
| Output power | 51 W |
| Output current | 4.25 A |
| Power auto-sensing | Yes |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
