Gigabit Poe+ Power Over Ethernet Injector 1 Port 48v / 30w - 802.3at / 802.3af - Wall-mountable
ITCurry #: 75646192 | Article #: POEINJ1G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).
The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.
Convenience and cost savings
This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn’t available.
Easy to set up in mixed environments
You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that’s perfect for installing on walls or under a desk, but it’s also palm-sized, for use on desktop surfaces.
Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Intelligent power allocation
Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.
The POEINJ1G is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10Base-T, 100Base-TX, 1000Base-T |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Duplex system | Full |
| Cable types supported | Cat5 |
| Features | |
| Product colour | Black |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Power |
| Certification | RoHS, CE, FCC |
| Ports & interfaces | |

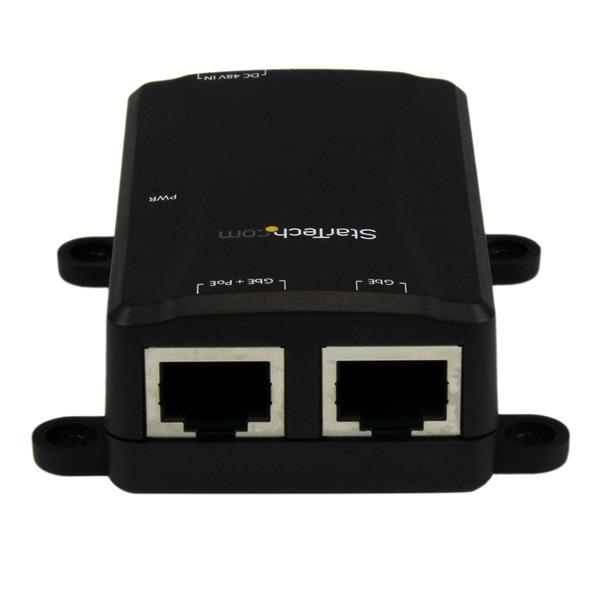

| Ethernet LAN (RJ-45) ports | 2 |

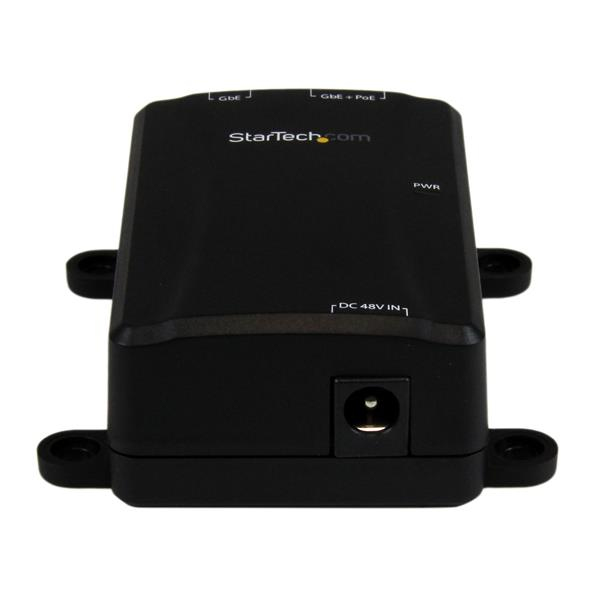

| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) voltage | 48 V |
| Output power | 30 W |
| Input voltage | 100 - 240 V |
| Input current | 0.75 A |
| Output current | 0.64 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 85 øC |
| Weight & dimensions | |
| Weight | 52 g |
| Dimensions (WxDxH) | 63 x 70 x 25 mm |
| Packaging data | |
| Package width | 230 mm |
| Package height | 76 mm |
| Package weight | 995 g |

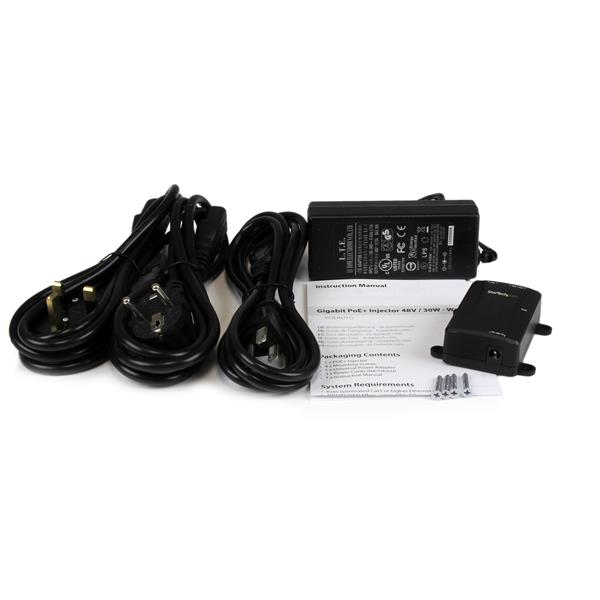

| Packaging content | |
| Power cord included | Yes |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
| Warranty | |
| Base Warranty | Non Non |
