HDMI Extender Set - 4K/30Hz 70m PoC IR
ITCurry #: M9239328 | Article #: DS-55519-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Extends Full HD AV signals over a distance of up to 70 m, 4K/30Hz signals can be extended over a distance of up to 40 m using a CAT6 (or higher) network cable
- Extends HDMI AV signals to a distance of up to 70 m
- Supports resolutions of up to 4K/30 Hz, 4:4:4
- Supports CAT 5e, 6, 6A,7, 8 network cables
- PoC (Power over Cable) - Only the transmitter requires an external power adapter

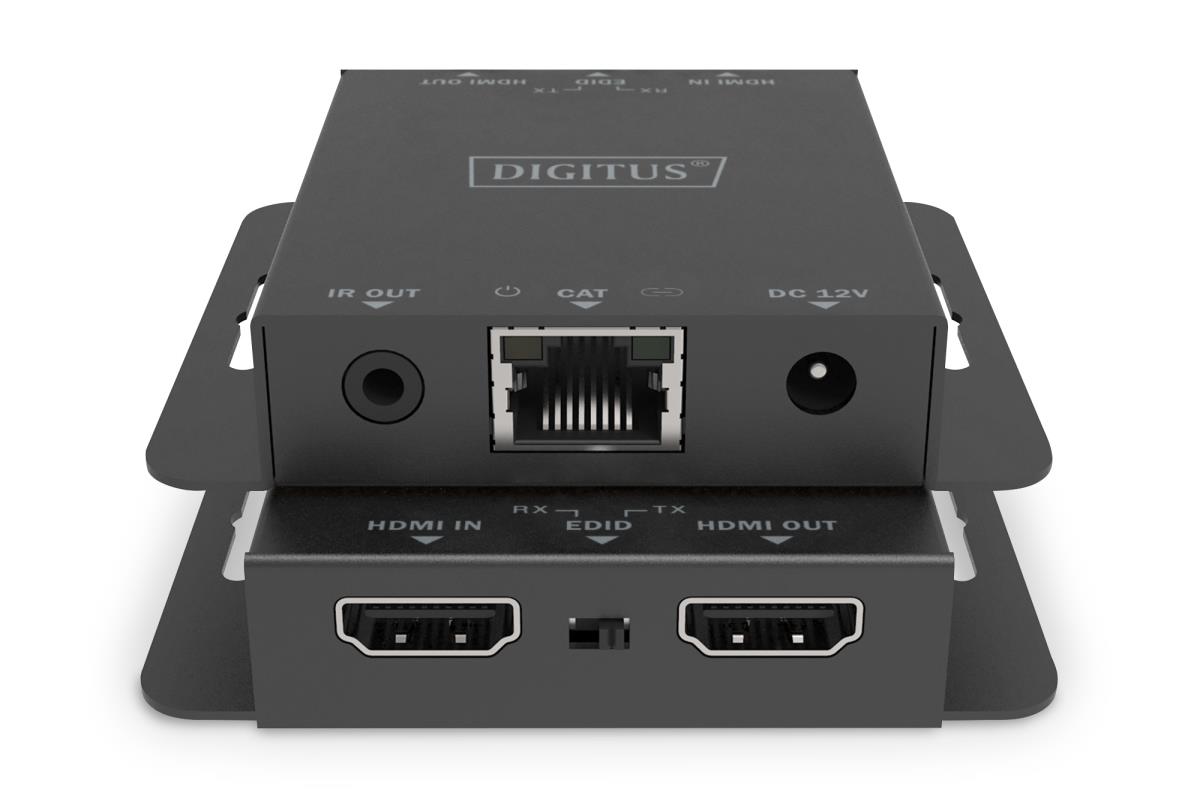

- HDMI loop-out / output – Connection of local monitor to the source device
- EDID copy function of the output screen on the receiver or on the HDMI loop out
- HDMI 1.4, HDCP 1.4, DVI 1.0

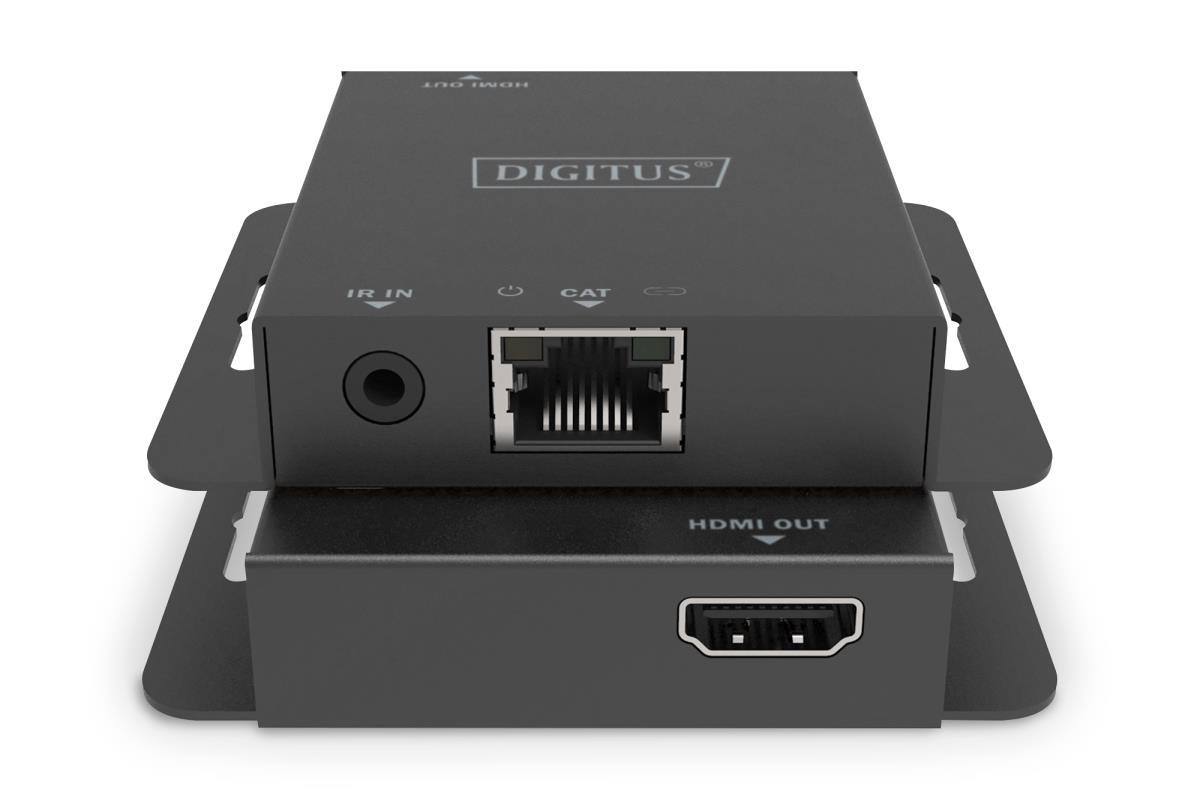

- IR interface enables remote control of the input source from the output screen
- Video bandwidth: 10.2 Gbps

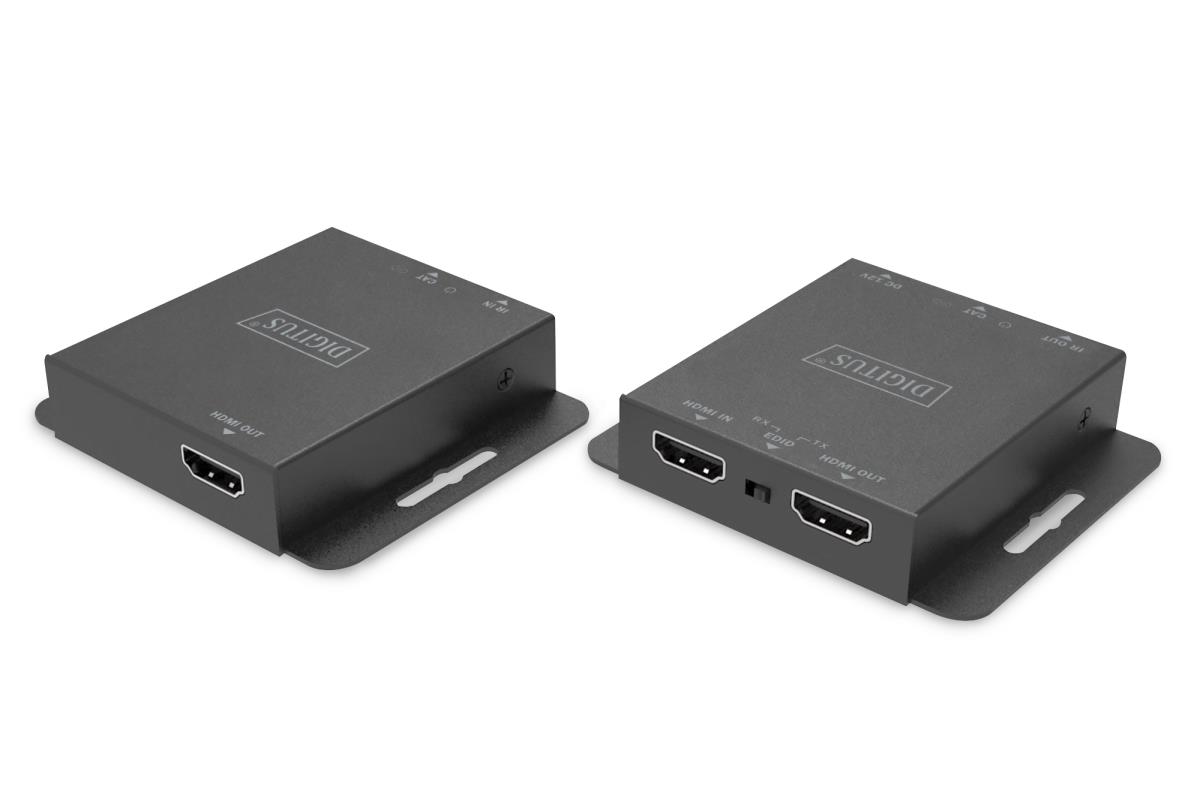

The HDMI Extender Set extends Full HD AV signals over a distance of up to 70 m, 4K/30Hz signals can be extended over a distance of up to 40 m using a CAT6 (or higher) network cable. The transmitter unit features an HDMI loop out for connecting a local monitor. Thanks to PoC (Power over Cable), only the transmitter needs to be supplied with power. IR transmission makes it possible to conveniently control the signal source using remote control from the receiver (output screen). Other features include an EDID copy function of the output screen on the receiver or on the HDMI loop out, which can be selected using the changeover switch.
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6, Cat6a, Cat7, Cat8 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 30 Hz |
| Extended display identification data (EDID) | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| Bandwidth | 10.2 Gbit/s |
| HDCP | Yes |
| Material | Metal |
| Wall mountable | Yes |
| HDCP version | 1.4 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 2 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage (transmitter) | 12 V |
| Operating voltage (receiver) | 12 V |
| Power consumption (transmitter) (max) | 1.86 W |
| Power consumption (receiver) (max) | 0.87 W |
| Power consumption (transmitter) (max) | 1000 mA |
| Power consumption (receiver) (max) | 1000 mA |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 69 x 79 x 16.5 mm |
| Receiver weight | 130 g |
| Transmitter dimensions (WxDxH) | 69 x 79 x 16.5 mm |
| Transmitter weight | 130 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 113 mm |
| Package height | 75 mm |
| Package weight | 550 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
| Technical details | |
| Country of origin | China |
| Package volume | 1695 cmü |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 365 mm |
| Master (outer) case gross weight | 16.5 kg |
| Master (outer) case volume | 61320 cmü |
| Products per master (outer) case | 30 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
