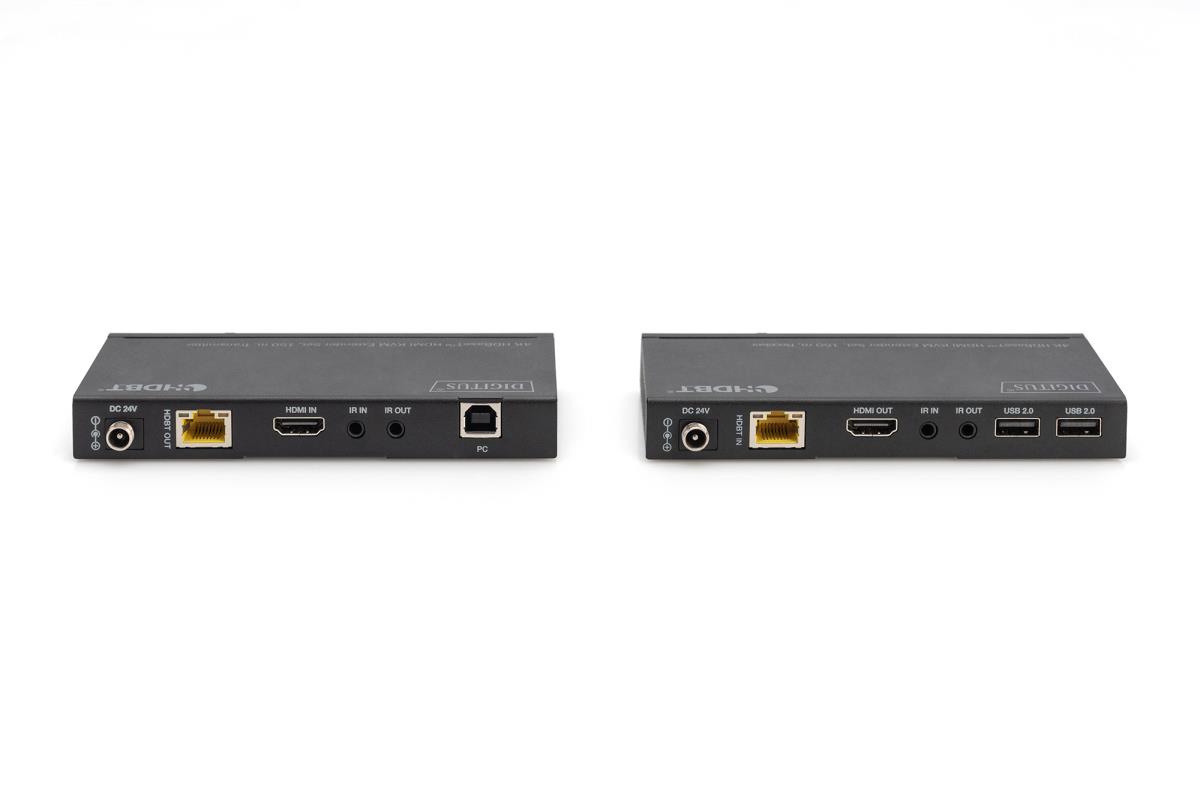

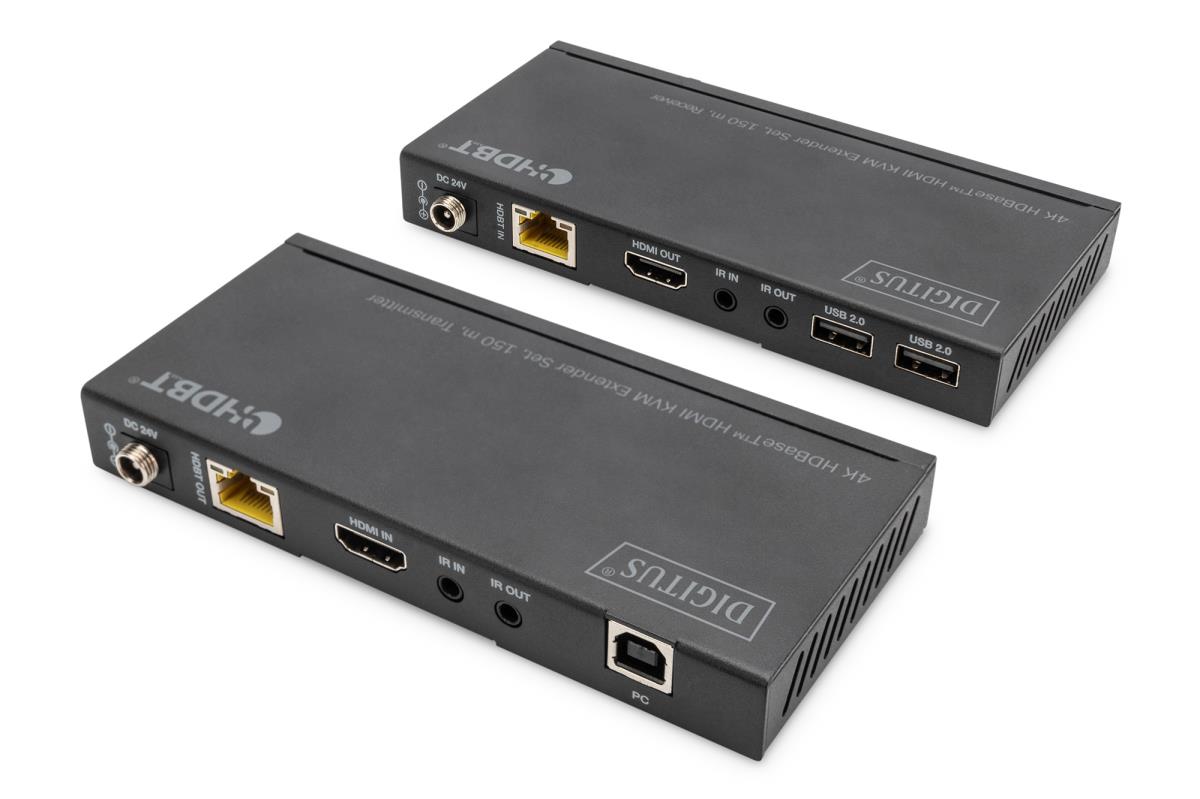

HDBaseT KVM Extender Set. 150m 4K/60Hz. USB 2.0. PoC. IR. black
ITCurry #: M9239019 | Article #: DS-55526-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HDBaseT™ HDMI Extender Set enables uncompressed, high-resolution AV signal transmission over large distances and offers KVM functionality (connection of mouse and keyboard)
- Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m
- Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
- Transmission distance - UHD (4K/60Hz): 120 m (max.)
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- 2x USB 2.0 ports on receiver for connection of webcam, data carrier, touch panel, mouse and keyboard, for example.
- Touch display support / Touch panel back control
- PoC (Power over Cable) - Only the unit requires an external power adapter

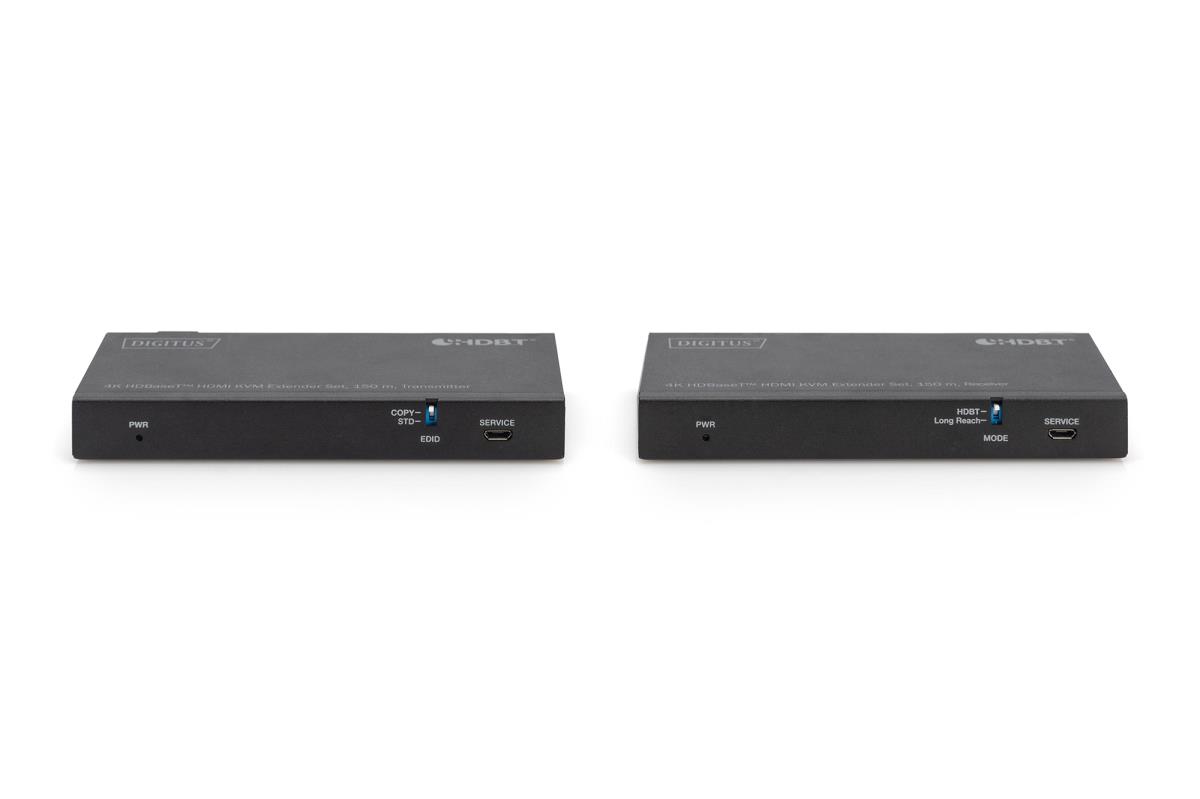

- EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
- Bi-directional IR signal transmission
The HDBaseT™ HDMI KVM Extender Set enables uncompressed, high-resolution AV signal transmission over large distances using a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit needs to be supplied with power by an external power adapter. The receiver unit features two USB 2.0 ports for connection of webcam, data carrier, mouse and keyboard, for example. The set also supports touch displays. Thanks to the touch panel back control, the signal source can also be controlled using finger gestures. Bi-directional IR transmission is also included as a feature.
| Features | |
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat6a, Cat7, Cat8 |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Material | Metal |
| Country of origin | China |
| Easy to install | Yes |
| USB 2.0 ports quantity | 5 |
| USB data transfer rates | 480 Mbit/s |
| Transmitter | |
| Transmitter video port type | HDMI |
| Number of displays supported | 1 |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| AC adapter output voltage | 24 V |
| AC adapter output current | 1 A |
| Power consumption (transmitter) (max) | 13.2 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Weight & dimensions | |
| Transmitter width | 14 cm |
| Transmitter depth | 6.5 cm |
| Transmitter height | 1.8 cm |
| Transmitter weight | 245 g |
| Receiver width | 14 cm |
| Receiver depth | 6.5 cm |
| Receiver height | 1.8 cm |
| Receiver weight | 249 g |
| Technical details | |
| Maximum resolution | 3840 x 2160 pixels |
| Package volume | 3399.38 cmü |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | IR, USB |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
| Ports & interfaces | |
| USB port type | USB Type-A |
| HDMI version | 2.0b |
| RJ-45 ports quantity | 2 |
| Packaging data | |
| Package width | 245 mm |
| Package depth | 185 mm |
| Package height | 75 mm |
| Package weight | 1.09 kg |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Warranty | |
| Base Warranty | Non Non |
