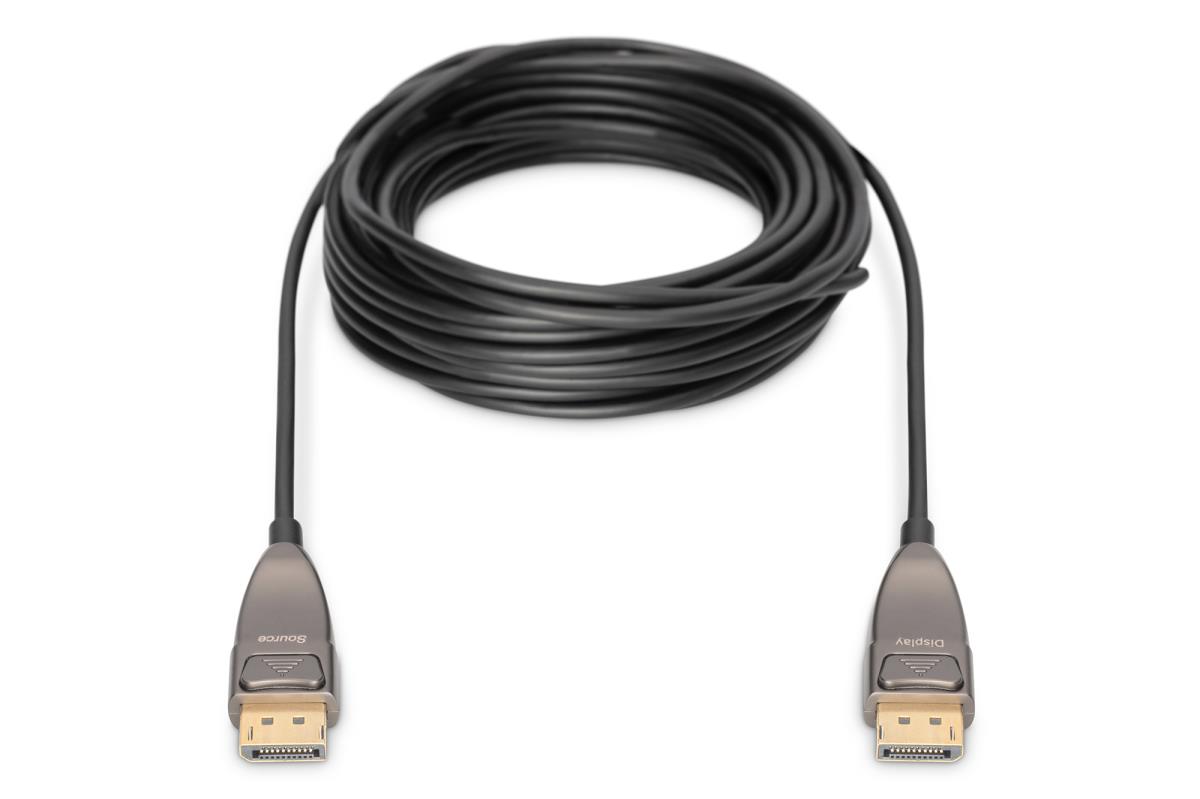

DisplayPort AOC hybrid-fiber connection cable M/M UHD 8K@60Hz, CE, black 10m

ITCurry #: M9238169 | Article #: AK-340107-100-S
Price:
46.44 Ex VAT
Shipping:
FREE Shipping on orders over 100€ Ex VAT.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

Transfer of uncompressed video and audio signals in 8K / 60Hz (UHD-2) resolution with 32.4 Gbps bandwidth.

- Active fiber optic data transfer with up to 32.4 Gbps - zero latency
- Resolutions of up to 8K@60Hz
- Transfers uncompressed HDMI video and audio signals over a distance of 10 m
- Flexible installation with a tight bending radius of 25.4 mm
- Compact cable with small diameter (OD 4.8 mm)
- Immune to electromagnetic interference (EMI)
- Supports HDR (High Dynamic Range)
- Supports HDCP 2.2 / EDID / CEC

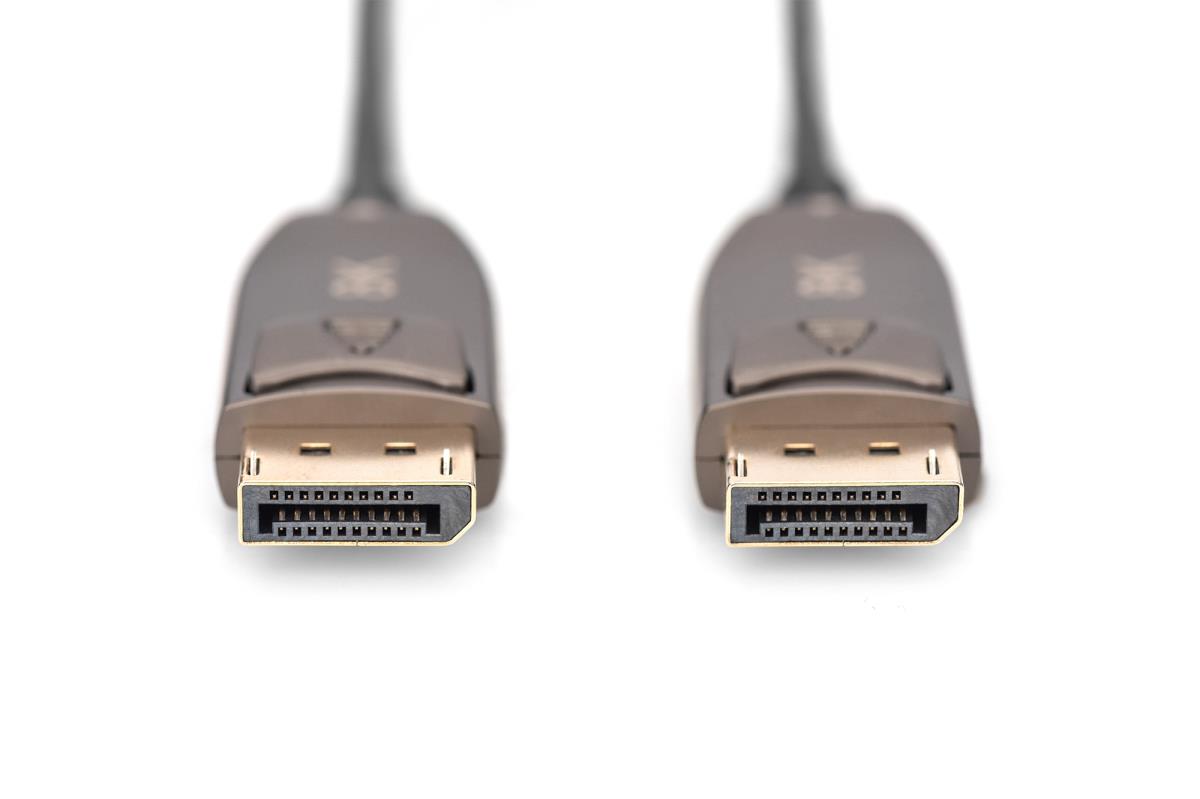

- Hybrid construction with fiber optic and copper cores with gold-plated contacts
- Loss-free data transfer rate at high transmission speed

This active DisplayPort AOC Hybrid Fiber Optic Cable is ideally suited for transferring uncompressed video and audio data with high bandwidth over longer distances. The hybrid construction, which uses copper and fiber optic cable, prevents electromagnetic interference. This ensures a loss-free transfer along the entire length of the cable with UHD resolution of up to 8K/60Hz and bandwidths of up to 32.4 Gbps. The use of fiber optic cable keeps the diameter of this active cable very low and gives it a very tight bending radius and low weight. It is ideal for use in homes, meeting rooms, and conference rooms as well as within buildings — and these are just a few of the possible uses. The simple Plug and Play installation is user-friendly; just plug it in and immediately enjoy optimal image quality. It supports numerous standards such as DisplayPort 1.4, HDCP 2.2 and HDR. Some of the many audio features supported are DTS-HD Master Audio and Dolby TrueHD. Cutting edge chip technology makes it possible to transfer the full DisplayPort signal spectrum while also supporting uncompressed CED and EDID with very low latency.

Features
Connector contacts plating Gold
DisplayPort version 1.4
Maximum resolution 7680 x 4320 pixels
Supported graphics resolutions 7680 x 4320
Maximum refresh rate 60 Hz
HDCP Yes
3D Yes
Cable length 10 m
Connector 1 DisplayPort
Connector 2 DisplayPort
Connector 1 gender Male
Connector 2 gender Male
Product colour Black
AWG wire size 24/28
Data transfer rate 32.4 Gbit/s
Operational conditions
Operating temperature (T-T) -20 - 70 øC
Operating relative humidity (H-H) 10 - 75%
Weight & dimensions
Cable diameter 4.8 mm
Weight 330 g
Packaging data
Package width 200 mm
Package depth 60 mm
Package height 200 mm
Package weight 388.889 g
Package volume 2400 cmü
Logistics data
UK Trade Tariff code 85447000
Harmonized System (HS) code 84733080
Country of origin China
Warranty
Base Warranty Non Non
