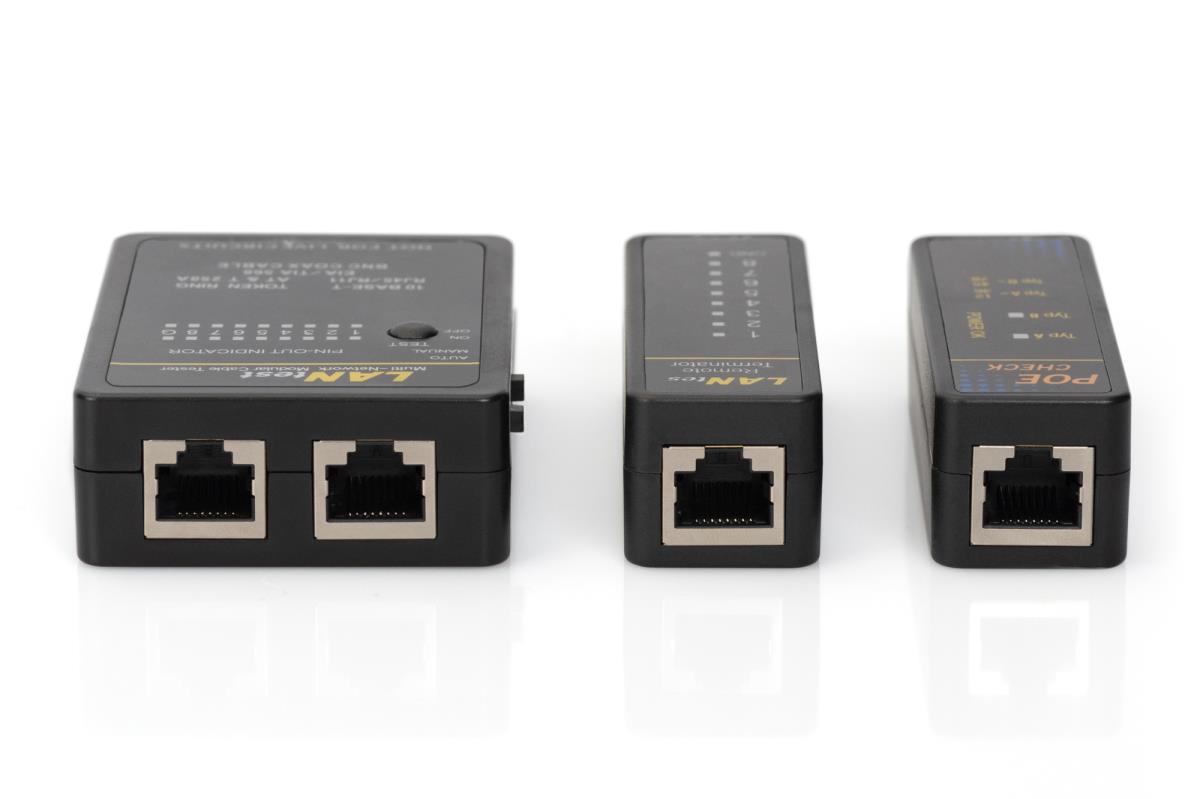

Cable tester, network, RJ45, BNC main device, remote unit, PoE tester, with case
ITCurry #: M9237981 | Article #: DN-14001-1
slide 3 of 2
Price:
16.48
Ex VAT
Shipping:
FREE Shipping on orders over 100€ Ex VAT.
Delivery in 3 days
Quantity:
Related products
slide 7 to 11 of 14
Product Information
Future-oriented standards and high-end quality for your network.
- Check network cables quickly and easily
- Loop test, remote test, PoE test
- includes adapter for BNC cable tests
- Read results easily via LED indicators
- Automatic or manual test possible
- with hard shell case
The LAN tester makes it easy to identify the correct PIN assignment of 10Base-T, 10Base-2, RJ45/TM11 modular cables as well as 258A, TIA-568A/568B and token ring cables by comparing the outgoing cable end with the corresponding receiving cable end. With the remote tester, you can test cables that are installed at a different location, for instance in wall distributors or patch fields. Easy identification of cabling is guaranteed.
| Warranty | |
| Base Warranty | Non Non |
| Technical details | |
| Test type | PoE testing |
| Supported connectors | RJ-45 |
| Built-in display | No |
| Product colour | Black |
| LED indicators | Yes |
| Easy to use | Yes |
| On/off switch | Yes |
| Light colour | Red |
| Certification | CE |
| Power | |
| Battery voltage | 9 V |
| Weight & dimensions | |
| Width | 55 mm |
| Depth | 25 mm |
| Height | 80 mm |
| Package width | 180 mm |
| Package depth | 120 mm |
| Package height | 46 mm |
| Packaging content | |
| Cables included | BNC, LAN (RJ-45) |
| Storage pouch | Yes |
| Manual | Yes |
| Batteries included | Yes |
| Logistics data | |
| Country of origin | China |
