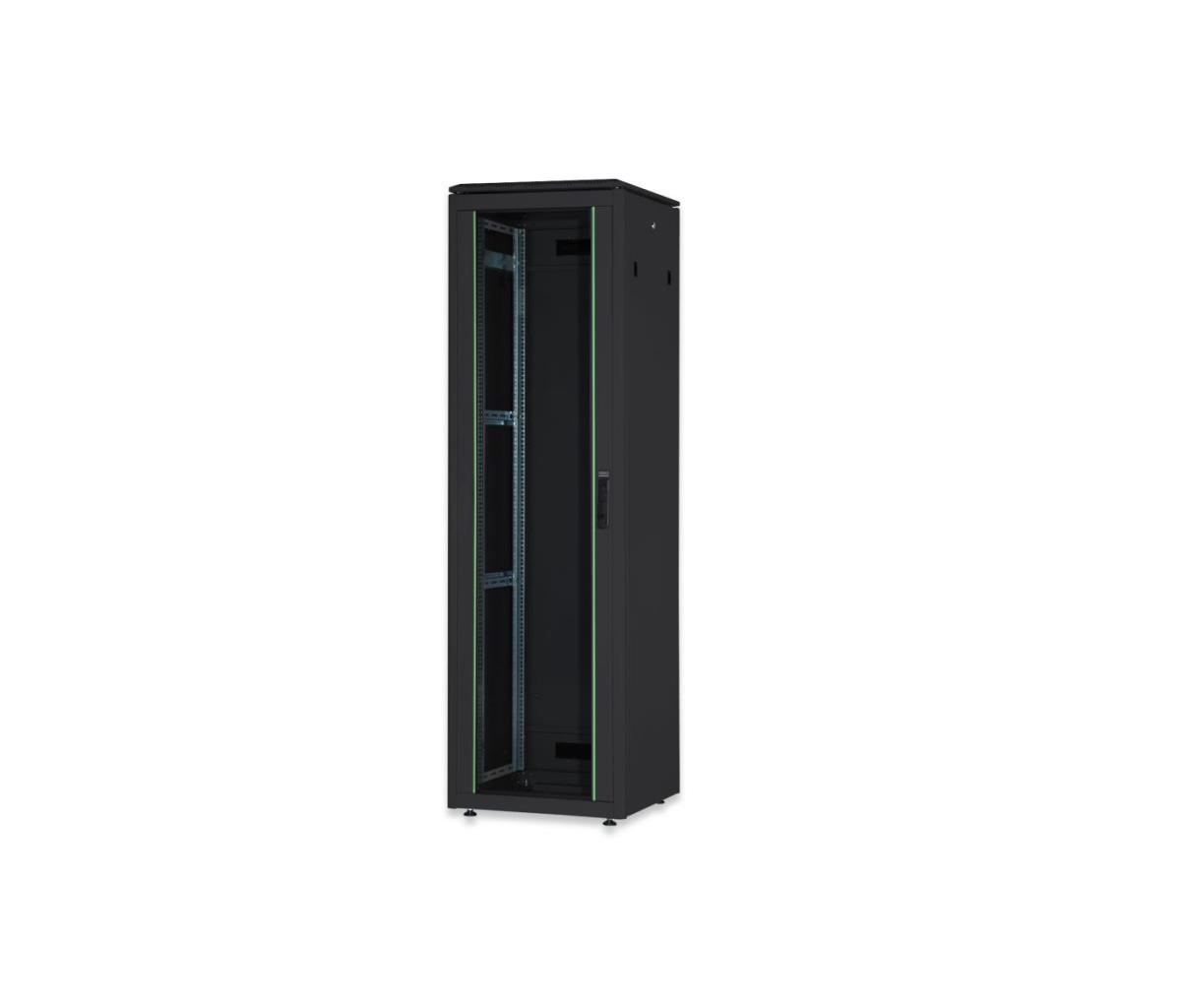

42U network cabinet HE2053X600X600 (HXBXT) (DN-19 42U-6/6-DB)
ITCurry #: M9235982 | Article #: DN-19 42U-6/6-DB-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The DIGITUS® Dynamic Basic series has been manufactured, designed and developed for the high demands of IT infrastructure

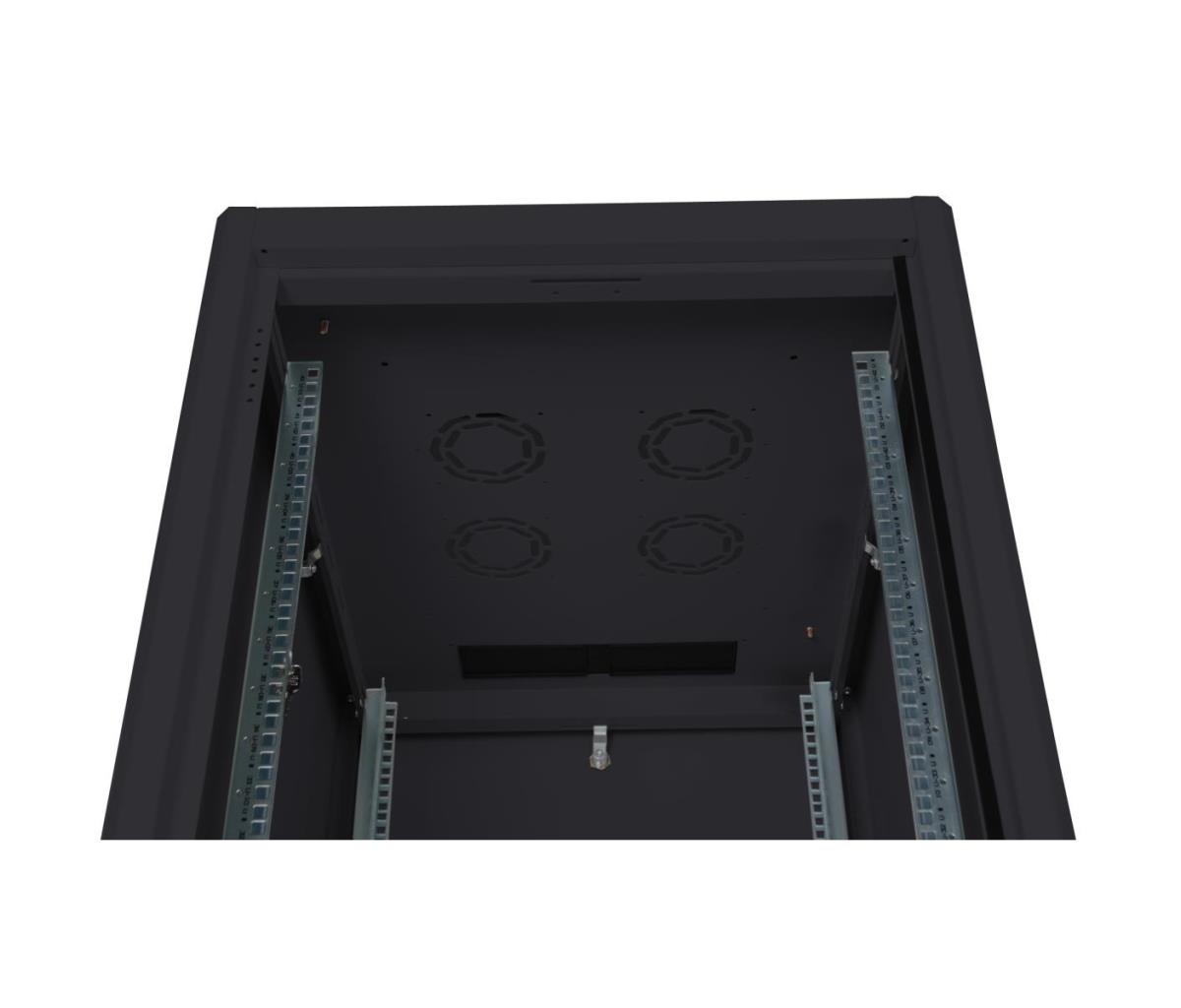

- Roof is prepared to accommodate a fan element (punched-out mounts)

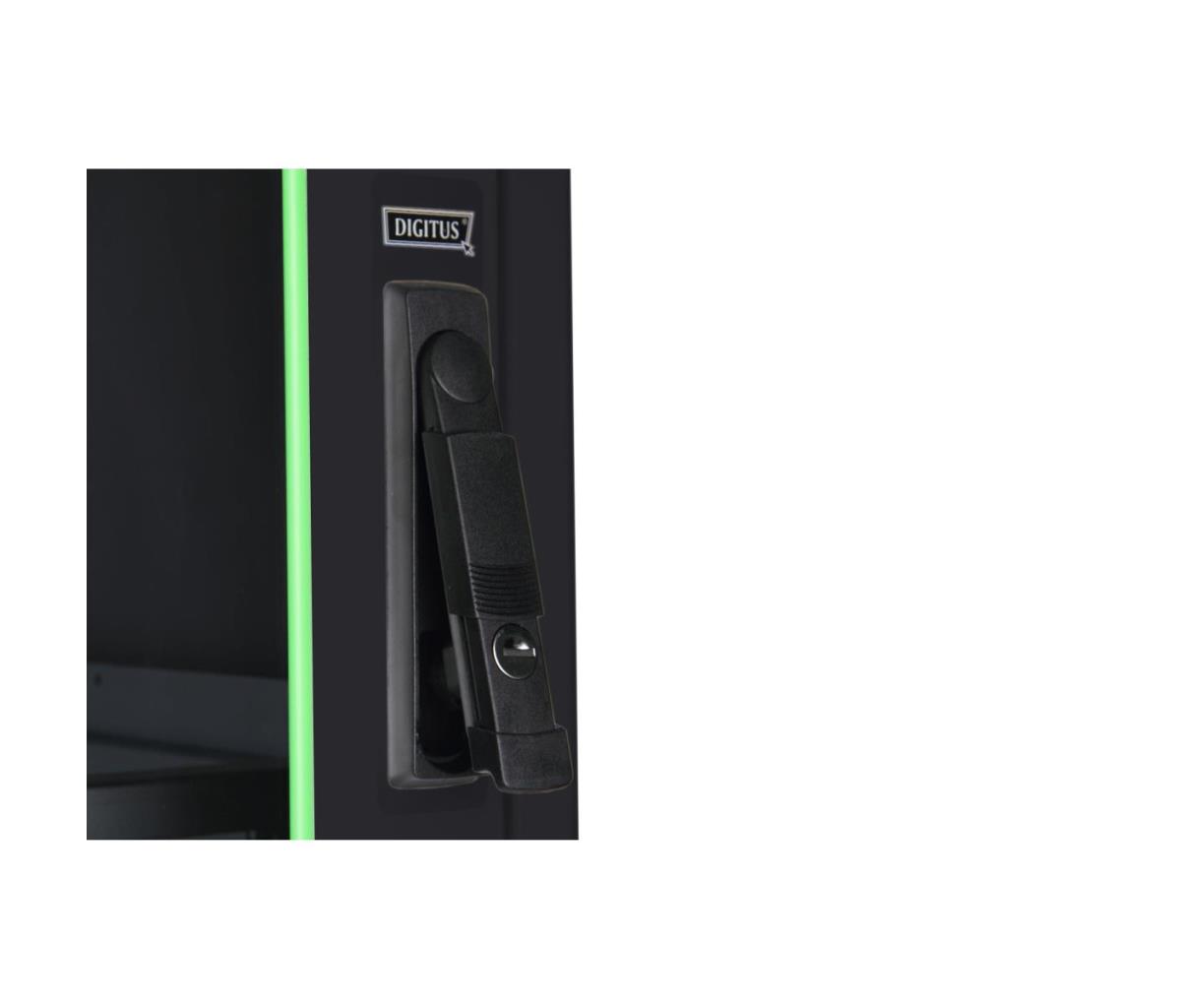

- Lockable swivel lever handle on the front door
- Base with punched cable inlet, covered with screwed plate

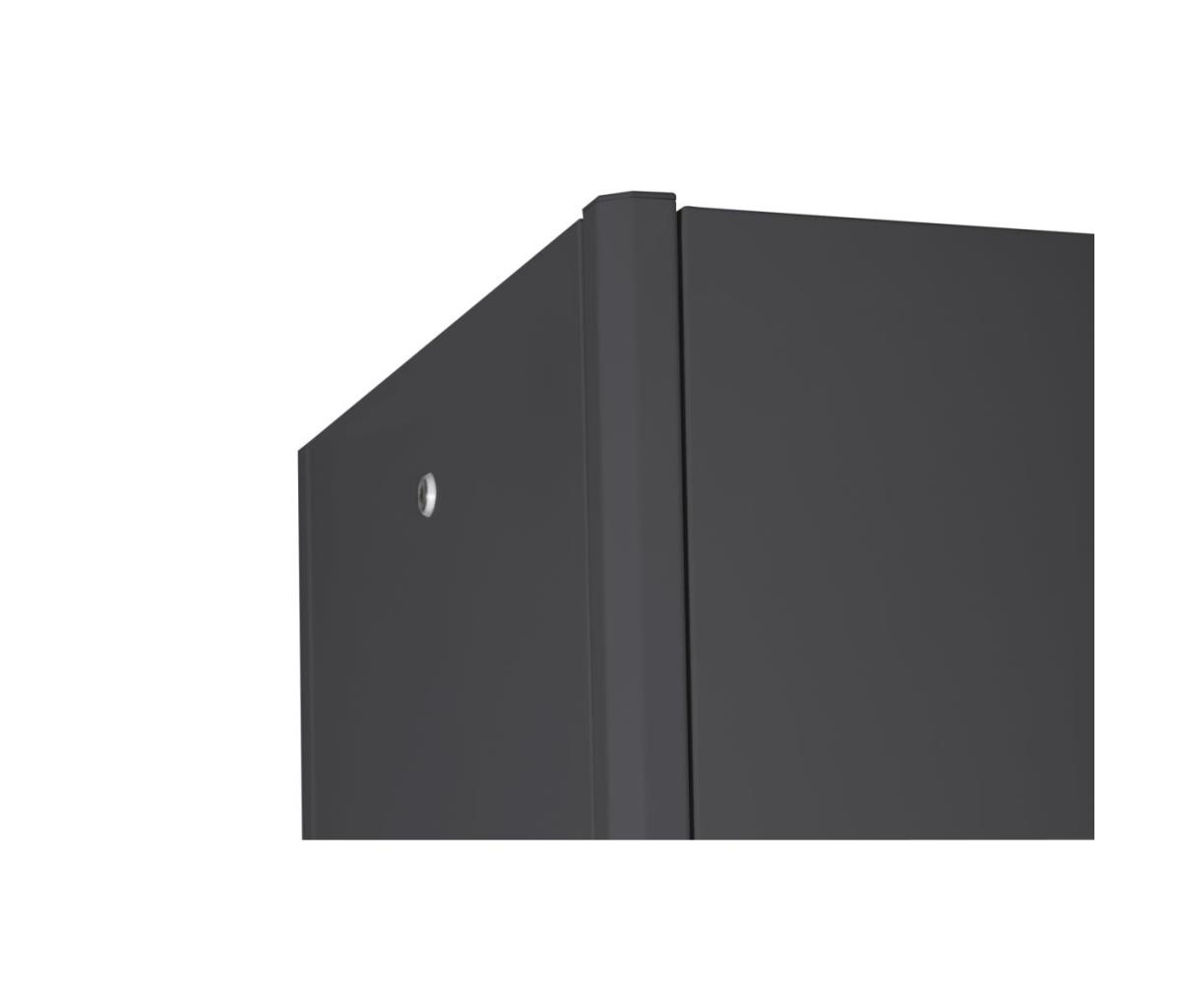

The Dynamic series network cabinets have been developed for simple and particularly cost-optimized network expansion. Sophisticated positioning of the cable inlets ensures effortless installation depending on the application. In the floor chassis, this is located centrally at the rear, protected by a screw-fastened cover plate. Enclosures from 800 mm width are additionally extended by cable inlets with plastic covers on the left and right. These are also integrated in the roof (1 x for 600 mm enclosure width, 3 x for 800 mm enclosure width). The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. They can be adjusted in depth and are connected to additional depth braces in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side and rear panels as well as the lockable and removable front door improve accessibility. The door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
| Features | |
| Rack capacity | 42U |
| Type | Freestanding rack |
| Maximum weight capacity | 600 kg |
| Product colour | Black |
| Material | Glass, Steel |
| Back door construction | Steel |
| Front door construction | Glass |
| Side panels included | Yes |
| International Protection (IP) code | IP20 |
| Weight & dimensions | |
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 2053 mm |
| Packaging data | |
| Package width | 650 mm |
| Package depth | 650 mm |
| Package volume | 883025 cmü |
| Package weight | 73 kg |
| Logistics data | |
| UK Trade Tariff code | 94032080 |
| Country of origin | Turkey |
| Harmonized System (HS) code | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
