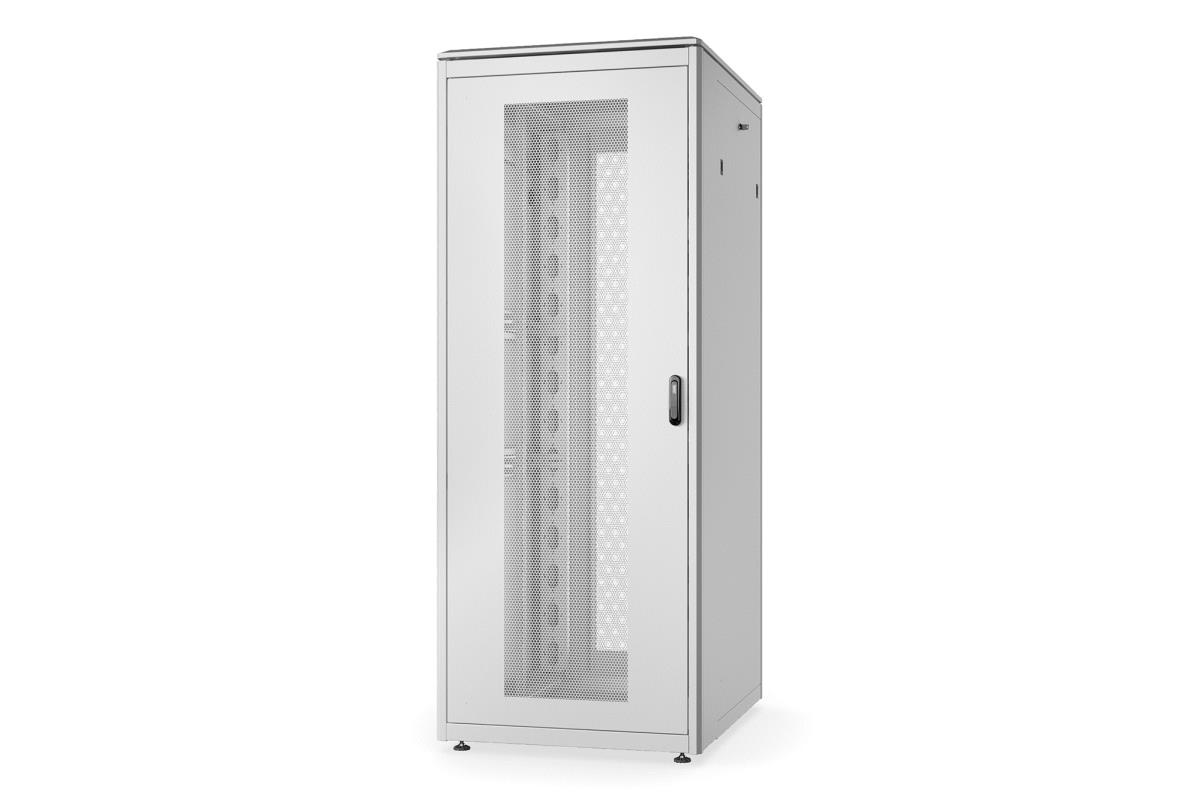

42U network cabinet - Unique 2053x800x1000mm perforated doors grey
ITCurry #: M9238604 | Article #: DN-31126-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The DIGITUS® network cabinets of the Unique series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.
- One-piece steel front and rear door with 70% perforation for improved air circulation & waste heat
- Swivel handle with profile half-cylinder lock incl. type 333 key on the front and rear door
- High load capacity of the 483 mm (19") profile rails of up to 1200 kg
- Vertical cable ducts with cable routing aids and cover installed in the front panel
- Modular, openable base chassis with removable 19" blind panels
- Flexible cable routing options thanks to generous cable inlets with brushes in the roof and floor
- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)

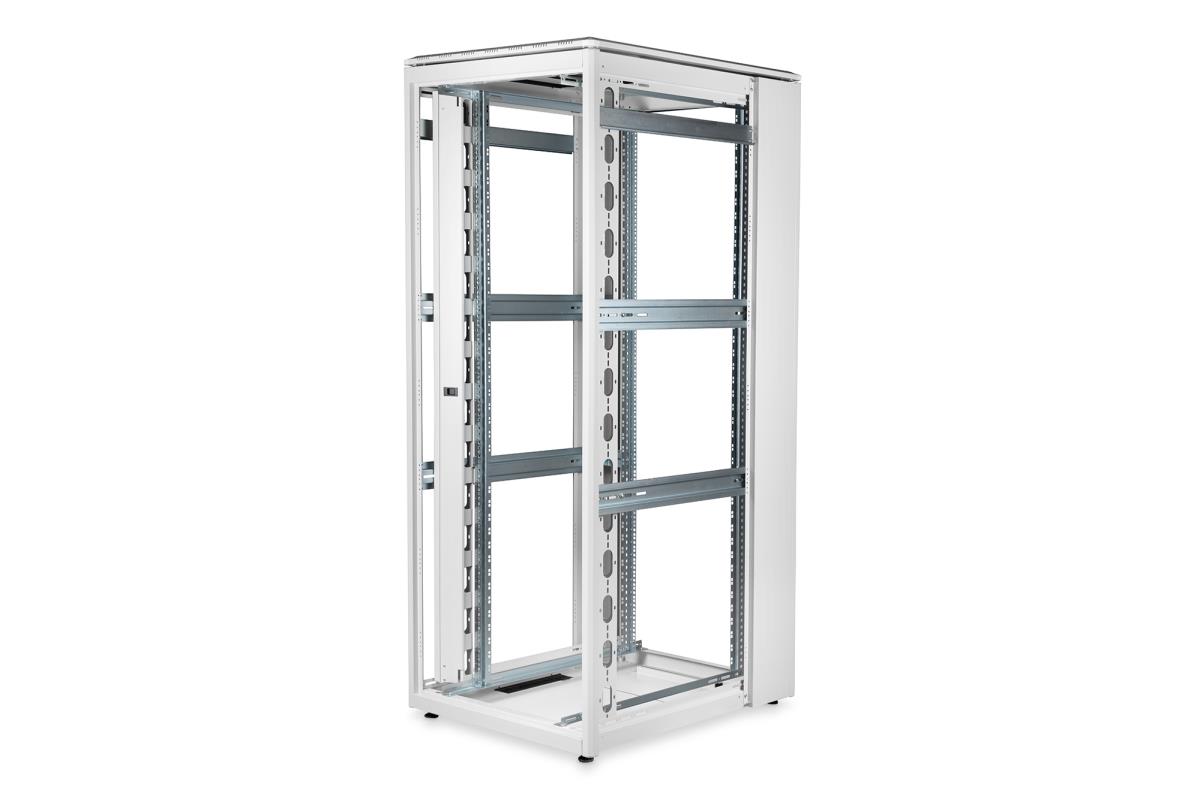

The network cabinets in the Unique series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. In addition, there are side cable inlets with brushes at the top and bottom of the cabinet, as well as another at the rear of the base chassis. Generous vertical cable ducts with cable routing aids and cover, installed in the front (from 800 mm cabinet width), perfectly round off the versatile features of the network cabinet. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
| Features | |
| Rack capacity | 42U |
| Type | Freestanding rack |
| Maximum weight capacity | 800 kg |
| Product colour | Grey |
| Material | Steel |
| Back door construction | Steel/Perforated |
| Front door construction | Steel |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Rack rails | Yes |
| Adjustable mounting rails | Yes |
| Adjustable depth | Yes |
| Adjustable feet | Yes |
| Cable management | Yes |
| International Protection (IP) code | IP20 |
| Weight & dimensions | |
| Width | 800 mm |
| Depth | 1000 mm |
| Height | 2053 mm |
| Weight | 145.8 kg |
| Mounting depth (min) | 68.8 cm |
| Mounting depth (max) | 94.3 cm |
| Packaging data | |
| Nuts included | Yes |
| Number of nuts | 36 |
| Screws included | Yes |
| Number of screws | 36 |
| Package width | 850 mm |
| Package depth | 1050 mm |
| Package height | 2100 mm |
| Package volume | 1876930 cmü |
| Package weight | 149 kg |
| Logistics data | |
| UK Trade Tariff code | 94032080 |
| Country of origin | Turkey |
| Harmonized System (HS) code | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
