16-port Gigabit Ethernet Switch 10in unmanaged
ITCurry #: M9238004 | Article #: DN-80115-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

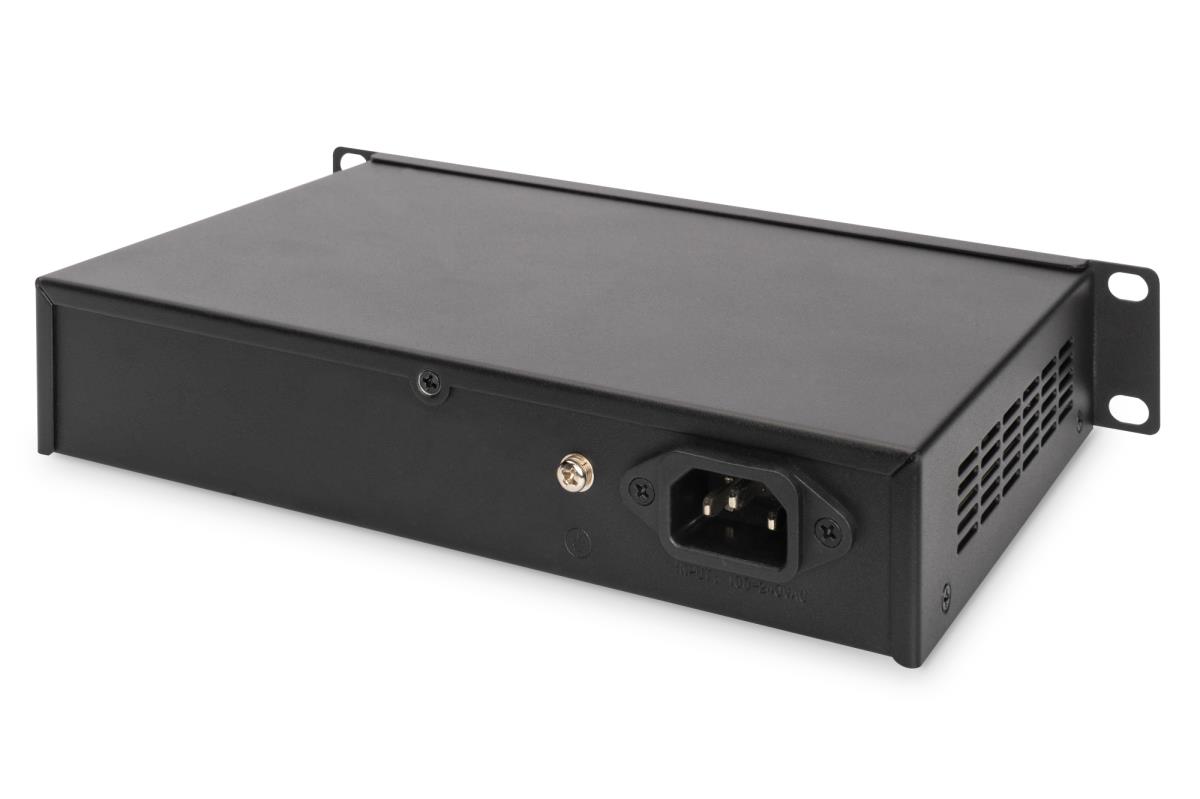

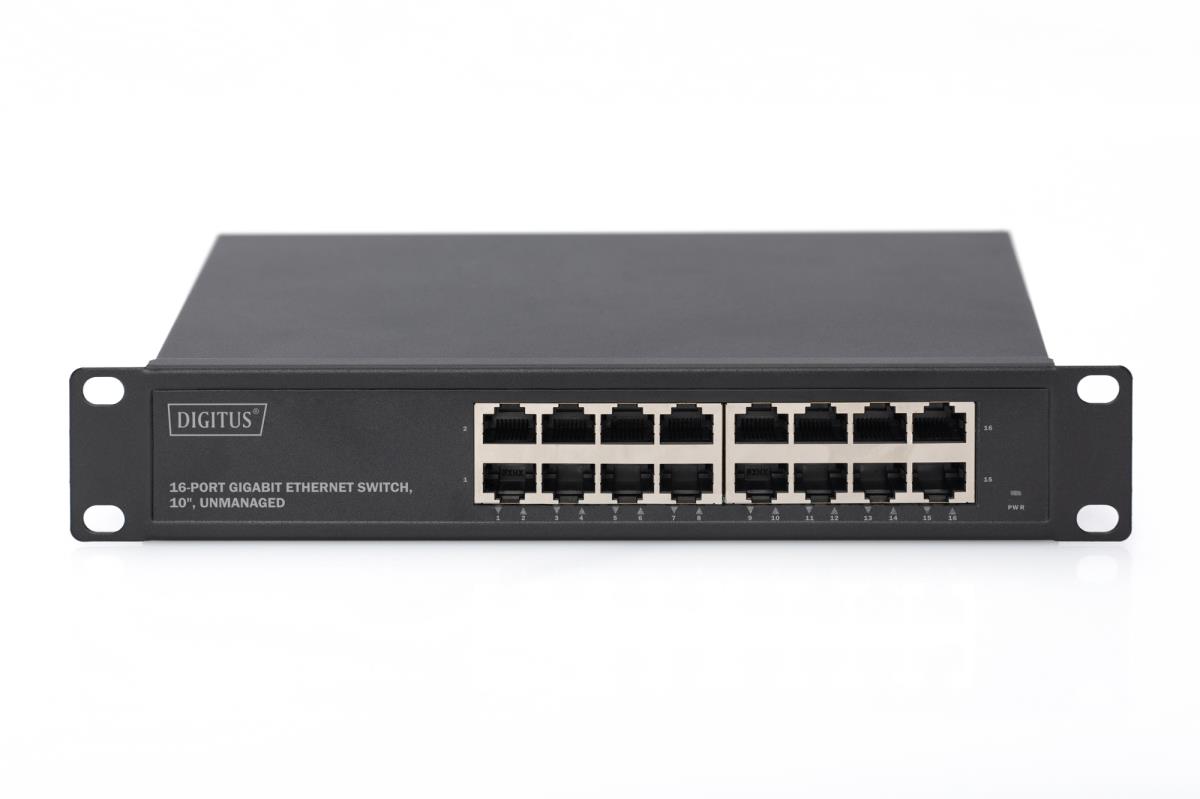

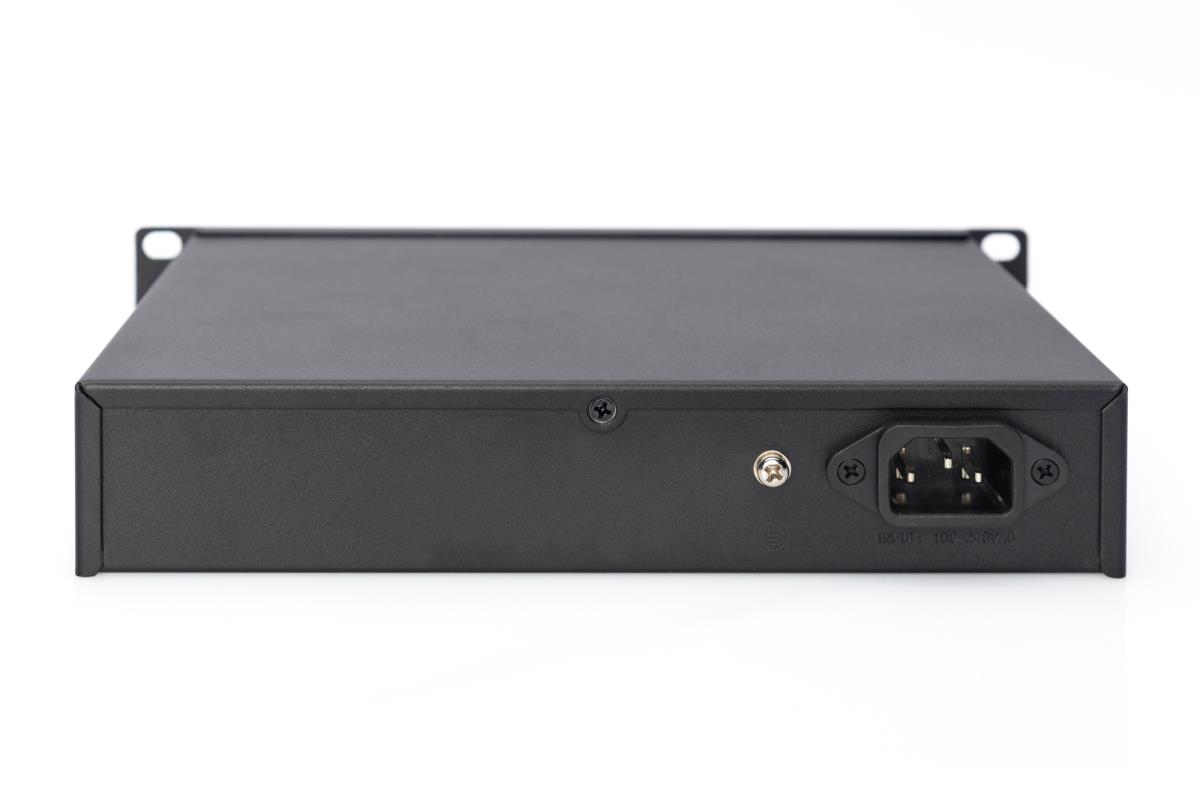

Gigabit Ethernet switch suitable for mounting in 10" (254 mm) housings.
- Gigabit Ethernet speed: With 10/100/1000Base-TX, the switch offers high data transfer speeds, ideal for fast networks
- High port count: The switch has 16 RJ45 ports, providing high flexibility and capacity for network connections
- Multi-standard compatibility: Support for IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x full-duplex flow control ensures broad compatibility and future-proof connectivity
- High backplane bandwidth: With a backplane bandwidth of 32 Gbps, efficient and fast data transmission between the ports is ensured
- Robust forwarding rate: The switch can forward up to 1,488 Mpps (million packets per second) per port, which is suitable for high network loads
- LED indicators: Power, Link/Active LEDs provide simple and clear monitoring of the network status
- Passive cooling system: The switch uses a fanless, passive cooling system that ensures silent operation and increases reliability
- Energy efficiency: With a power consumption of just 15 W, the switch is energy-efficient and saves operating costs
- Wide temperature range: The switch can be operated in a wide operating temperature range of 0°C to 40°C and a storage temperature range of 0°C to 70°C, which extends its range of applications
- Easy installation: The switch is suitable for mounting in 10" enclosures with a height of 1U, which facilitates integration into existing network cabinets
The DIGITUS® 16-Port Gigabit Ethernet Switch provides 16 x 10/100/1000 Mbps RJ-45 ports with auto-negotiation. All ports support the Auto MDI/MDIX function, which eliminates the need for crossover cables and uplink ports. Low cost, ease of use and high performance are the strengths of the DIGITUS® Gigabit Ethernet 16-Port Switch, making it an excellent choice for your network. The high backplane bandwidth has sufficient reserves so that even large amounts of data can be transferred effortlessly. Furthermore, this switch is designed for installation in 10" (254 mm) housings and fits seamlessly into your network housing with 1U.
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| VLAN support | No |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Vandal-proof | No |
| Suitable for outdoor use | No |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 15 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Ethernet interface type | Gigabit Ethernet |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | 0 - 70 øC |
| Operating relative humidity (H-H) | 20 - 85% |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 67 mm |
| Package volume | 5145.6 cmü |
| Package weight | 1.6 kg |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
