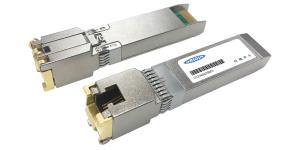

1.25 Gbps Copper SFP Module, RJ45 10/100/1000Base-T, up to 100 m
ITCurry #: M9237044 | Article #: DN-81005-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The plug and play extension for your network switch
- Extend your network switch with free SFP ports around additional RJ-45 connections
- Compatible with the popular network switch manufacturers
- Hot pluggable - installation possible while in operation
- Operating temperature: 0 °C ~ 70 °C
The DIGITUS® Mini GBIC (SFP) transceiver modules offer the highest quality and reliability. The module offers a perfect opportunity for you to extend your Gigabit network switch with a free SFP Uplink Port around an additional RJ45 connection. Thanks to the hot-plug capability, you can install the module without any interruption to the network traffic or restart of the device. In addition, conformity with the MSA (Multi Source Agreement) standard provides compatibility with the current network switch manufacturers.
| Performance | |
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Cabling technology | 1000BASE-T |
| Ethernet LAN (RJ-45) ports | 1 |
| Auto MDI/MDI-X | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
| Features | |
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | MSA Compliant |
| Weight & dimensions | |
| Width | 15 mm |
| Depth | 15 mm |
| Height | 70 mm |
| Weight | 200 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 93 mm |
| Package depth | 32 mm |
| Package height | 120 mm |
| Package volume | 357.12 cmü |
| Package weight | 58.333 g |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Harmonized System (HS) code | 85369010 |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
