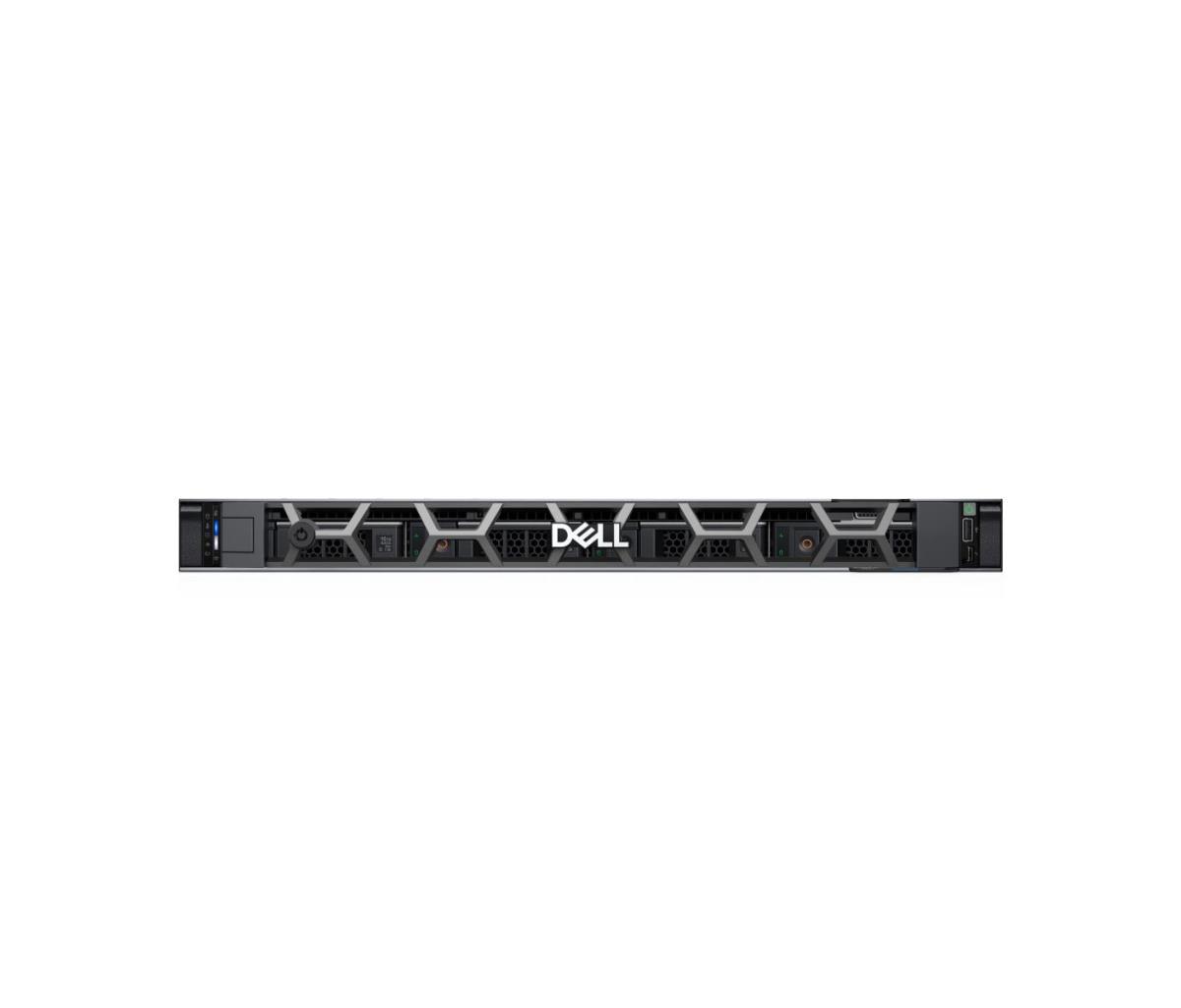

PowerEdge R660XS - 1U Rack Server - Intel Xeon Gold 5416S 2.0GHz - 32GB DDR5 SDRAM - 960GB SSD - 1100W PSU
ITCurry #: 3314Y599 | Article #: VJ454Flash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
3863.55
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information
The perfect blend of performance and density
Run the most popular IT applications easily with this air-cooled server that is the best choice for balanced and dense compute.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© Gold |
| Processor model | 5416S |
| Processor frequency | 2 GHz |
| Processor boost frequency | 4 GHz |
| Processor cores | 16 |
| Processor cache | 30 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 150 W |
| Maximum internal memory supported by processor | 512 GB |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory slots | 16x DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory data transfer rate | 5600 MT/s |
| Maximum internal memory | 1 TB |
| Storage | |
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| Supported RAID controllers | PERC H755 |
| Hot-Plug support | Yes |
| Internal drive bays | 8 |
| Supported storage drive interfaces | SAS, Serial ATA |
| Graphics | |
| On-board graphics card | No |
| Network | |
| LAN controller | Broadcom 5720 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black |
| Rack rails | Yes |
| Bezel | Yes |
| Performance | |
| Remote administration | iDRAC9, Enterprise 16G |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 100 - 240 V |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 12 A |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 6561 |
| Total carbon emissions, standard deviation (kg of CO2e) | 3677 |
| Carbon emissions, manufacturing (kg of CO2e) | 459.27 |
| Carbon emissions, logistics (kg of CO2e) | 131.22 |
| Carbon emissions, energy usage (kg of CO2e) | 5970.51 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 590.49 |
| PAIA version | 1.3.2, 2022 |
| Weight & dimensions | |
| Width | 434 mm |
| Height | 42.8 mm |
| Other features | |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512 |
| Warranty | |
| Base Warranty | Non Non |
